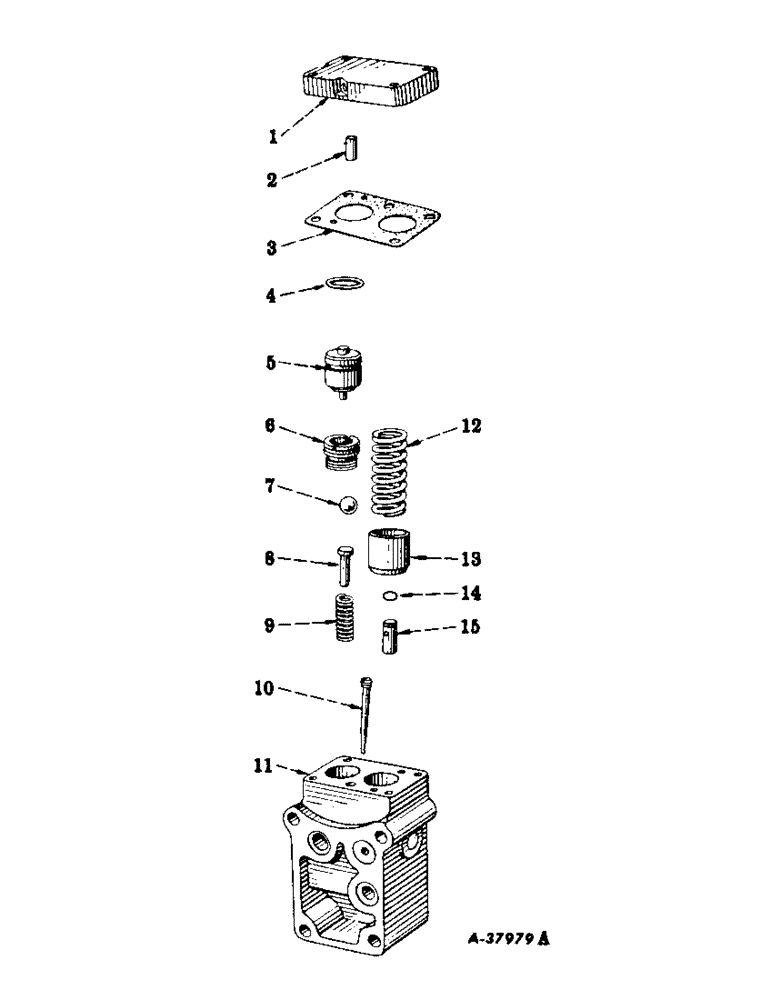

Запчасти Case IH 200 (270) - HYDRAULIC SYSTEM, REGULATOR AND SAFETY VALVE, FOR TRACTORS EQUIPPED WITH HYDRA-TOUCH SYSTEM (07) - HYDRAULIC SYSTEM

360621R93

VALVE

regulator and safety, assembly

1шт.

1

360629R21

COVER

regulator and safety valve housing

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

cap, hex-hd., cd-pltd., 5/16-18NC x 1-1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

NSS

NOT SOLD SEPARAT

Not used for Farmall 200 and 230 tractors

1шт.

3

360630R1

GASKET

regulator and safety valve housing

1шт.

4

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, regulator valve piston

1шт.

5

366638R91

PISTON

regulator valve, w/retainer, rod and spring

1шт.

6

366665R1

FITTING

SEAT, regulator valve

1шт.

7

17018R1

BALL,9/16" Dia

1шт.

8

350084R2

SEAT

RIDER, regulator valve ball

1шт.

9

352026R2

SPRING

regulator valve ball rider

1шт.

10

370766R91

PLUG

AND SCREEN, safety valve orifice (will work for 353853R41 and 355372R92)

1шт.

11

360622R31

HOUSING, regulator and safety valve, w/two plugs and plug 362392R2

1шт.

362392R2

PLUG

regulator and safety valve housing (optional with 365857R1) (3/8-10 N.P.T.F.) (used w/housing, 360622R2)

1шт.

9410359

PLUG

regulator and safety valve housing (3/4-16N.F.) (used w/housing, 360622R3)

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

RING, seal, valve housing plug (used only w/plug, 9410359)

1шт.

12

360626R2

SPRING

safety valve

1шт.

13

360627R2

RETAINER

safety valve spring

1шт.

14

354854R2

RING

snap, safety valve piston

1шт.

15

361023R1

PISTON

safety valve

1шт.
