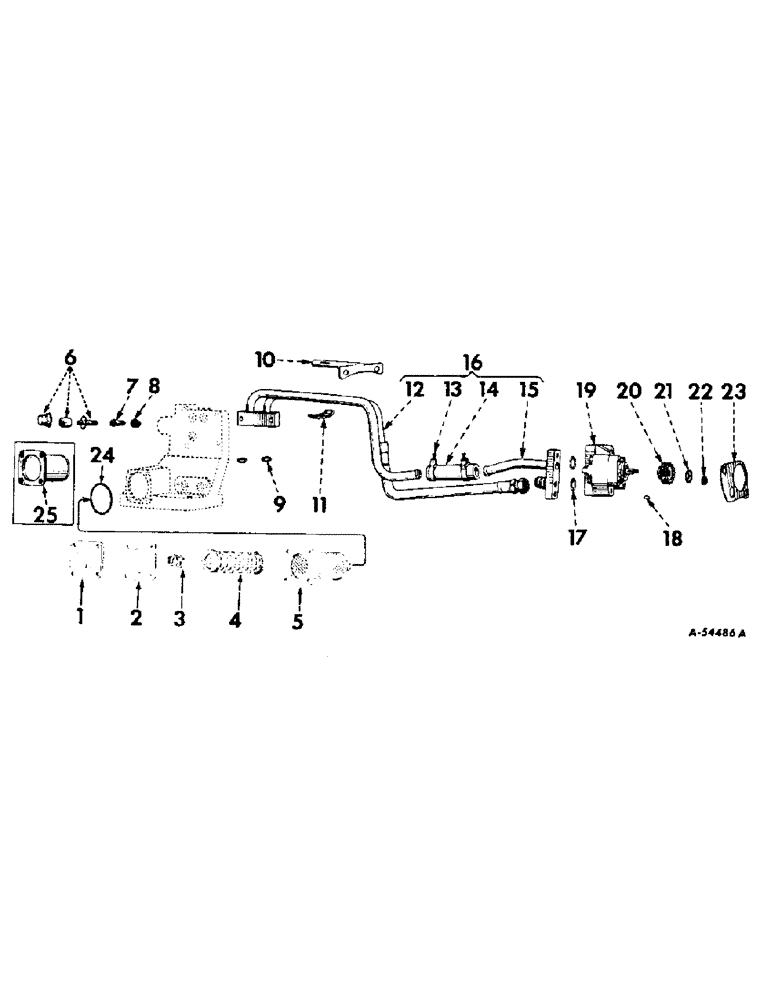

Запчасти Case IH 200 (261) - HYDRAULIC SYSTEM, HYDRAULIC POWER SUPPLY (07) - HYDRAULIC SYSTEM

371933R92

PARTS ACCESSORY, hydraulic power supply

1шт.

1

374979R11

COVER, tandem oil filter strainer, w/pin

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

2

374981R1

GASKET

tandem oil filter cover

1шт.

3

374978R1

SPRING, tandem oil filter thrust

1шт.

4

375078R91

KIT

ELEMENT, tandem oil filter, w/gasket, 374981R1 and ring, 366581R1

1шт.

5

374976R91

FILTER

STRAINER, tandem oil filter, assembly

1шт.

6

366591R91

CLEANER

BREATHER HYDRAULIC, assembly

1шт.

7

444476

ELBOW UNION

ELBOW, street, breather, 90 deg. (optional with 374896R1)

1шт.

7

374896R1

ELBOW, street, breather, 90 deg. (optional with 444476)

1шт.

8

119932

BUSHING, reducing, breather

1шт.

9

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

RING, seal, valve support hose and tube flange

2шт.

10

371261R1

BRACKET, pump manifold tube

1шт.

11

371260R1

CLAMP, pump manifold tube bracket

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

181319

BOLT,Hex, 1/4" - 28 x 1 1/2", Gr 5

1шт.

173124

WASHER

internal-external tooth, 1/4"

1шт.

12

371304R91

HOSE ASSY.

HOSE AND TUBE, hydra-touch valve support w/flange

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8"

2шт.

13

39121H

CLAMP

hose, low pressure tube

2шт.

14

371305R1

HOSE

low pressure tube connecting

1шт.

15

371303R91

TUBE

FLANGE, hydraulic pump w/tubes

1шт.

103026

NUT,3/8"-24, G5

2шт.

328-656

BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 8

SCREW, cap, hex-hd., 3/8-24NF x 3-1/2"

2шт.

16

369734R91

TUBE

HOSE AND TUBE, hydraulic manifold assembly

1шт.

17

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

RING, seal, hydraulic pump flange

2шт.

18

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

19

368633R91

PUMP

HYDRAULIC, assembly (for components see list of parts under details of "hydraulic pump") (optional with 368894R92)

1шт.

19

368894R92

PUMP

HYDRAULIC, assembly (for components see list of parts under details of "hydraulic pump") (optional with 368633R91)

1шт.

20

350709R1

GEAR

hydraulic pump drive (16 teeth)

1шт.

21

351818R1

WASHER

hydraulic pump drive gear

1шт.

22

114494

NUT,Jam, 3/8"-24, G5

1шт.

23

350708R1

GASKET

hydraulic pump

1шт.

24

366581R1

O-RING,2.612" ID x 0.103" Width

RING, seal, tandem oil filter

1шт.

25

366576R91

STRAINER ASSY.

STRAINER, oil, w/flange and screen (order package 374983R91) (not included in the parts accessory)

1шт.

374983R91

KIT

PACKAGE, service, tandem oil filter (will work for 366576R91) (consists of (1) cover 374979R11, (4) screw 179816, (1) element 375078R91, (1) spring 374978R1, (1) gasket 374981R1, (1) strainer 374976R91, (1) ring 366581R1)

1шт.
