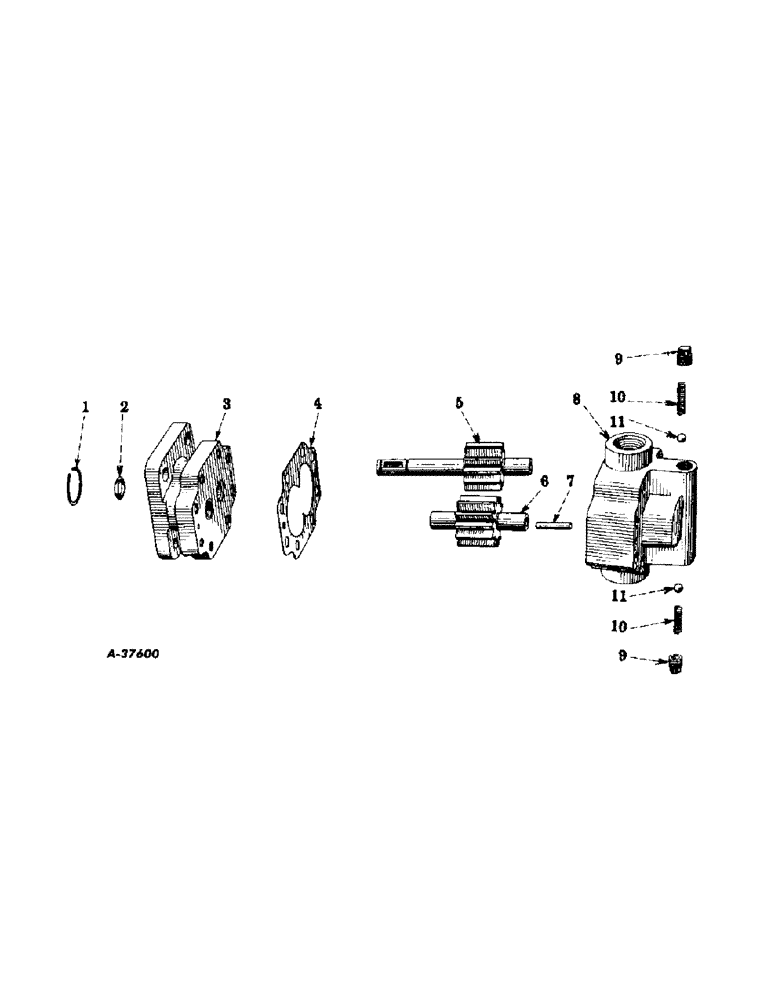

Запчасти Case IH 200 (257) - HYDRAULIC SYSTEM, HYDRAULIC MOTOR, FOR FARMALL 200 TRACTORS EQUIPPED WITH HYDRA-CREEPER (07) - HYDRAULIC SYSTEM

362288R91

MOTOR, hydraulic, assembly

1шт.

1

362297R1

RING, internal snap

1шт.

2

362296R1

RING, drive gear seal

1шт.

3

NSS

NOT SOLD SEPARAT

COVER (not for service) (order 362288R91)

1шт.

4

362291R1

GASKT, body (.001)

1шт.

4

362292R1

GASKET, body (.0015)

1шт.

4

362293R1

GASKET, body (.003)

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR, drive (not for service) (order 362288R91)

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR, driven (not for service) (order 362288R91)

1шт.

7

NSS

NOT SOLD SEPARAT

PIN, driven gear (not for service) (order 362288R91)

1шт.

8

NSS

NOT SOLD SEPARAT

BODY, hydraulic motor (not for serivce) (order 362288R91)

1шт.

9

362295R1

PLUG, ball check

2шт.

10

362294R1

SPRING, ball check

2шт.

11

16008R1

BALL,1/4" Dia, Steel

chrome steel, 1/4" dia.

2шт.

362211R91

VALVE, selector, assembly

1шт.
