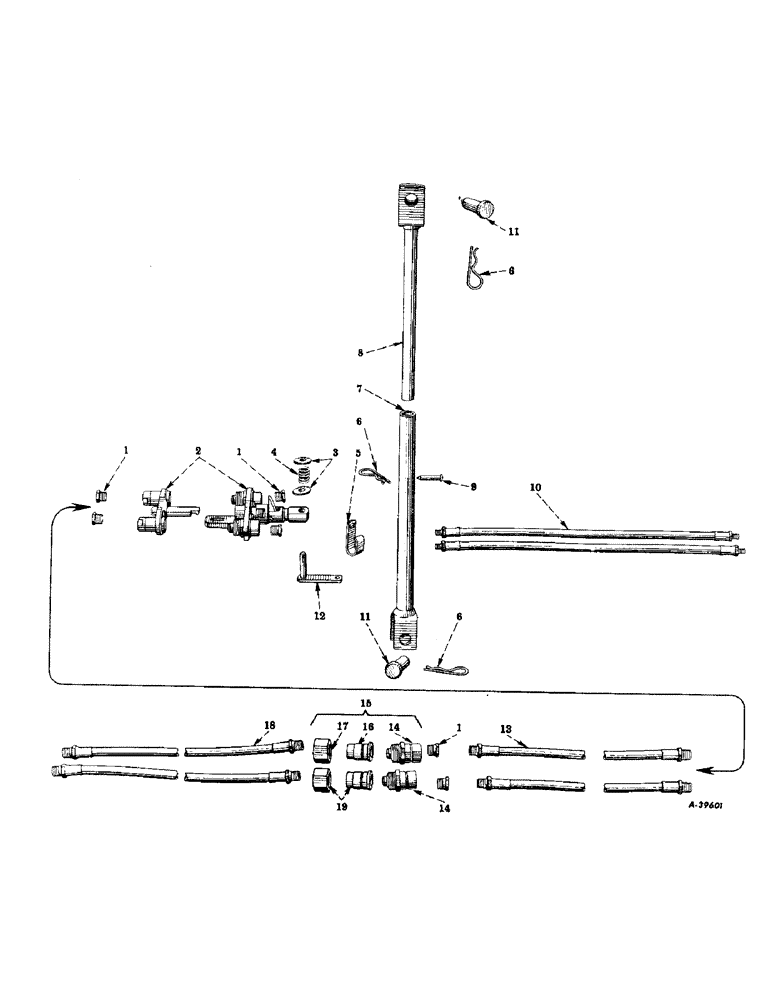

Запчасти Case IH 200 (255) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER HOSE EXTENSION ATTACHMENT, SPECIAL (07) - HYDRAULIC SYSTEM

1

144038

BUSHING, reducing, pipe, zn-dull, 1/2 x 1/4" 1/2" NPT Male x 1/4" NPT Fem

6шт.

2

364310R92

COUPLING

break-away, assembly (will work for 353086R91) (for components see list of parts under detail of "break-away coupling")

1шт.

3

19849H

WASHER, plain, 33/64" I.D. x 1-3/8" O.D. x no. 11 ga.

2шт.

4

353213R2

SPRING

break-away coupling bracket

1шт.

5

360243R1

SUPPORT, cylinder hose

1шт.

6

517843R1

COTTER PIN

PIN, cotter, quick attachable

3шт.

7

360244R11

PIPE, cylinder replacement link

1шт.

8

360246R11

ROD, cylinder replacement link

1шт.

9

360247R1

PIN, cylinder replacement link pipe

1шт.

10

360428R92

HOSE, valve block to break-away coupling (1/4 x 22-1/2" long) (will work for 361075R91)

2шт.

11

360248R1

PIN, clevis, cylinder replacement link

2шт.

12

360249R11

BRACKET, hydraulic break-away coupling

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

1шт.

13

360427R91

HOSE, break-away coupling to self-sealing coupling (1/4 x 61" long) (will work for 361074R91)

2шт.

14

353217R92

COUPLING

half self-sealing male, assembly (for components see list of parts under details of "self-sealing")

1шт.

15

357963R92

COUPLING, half, front, 353217R92 and coupling, half, rear, 357964R92, w/nut, 357965R92

2шт.

16

353218R91

COUPLING

half self-sealing female, assembly (for components see list of parts under details of "self-sealing coupling")

2шт.

17

357965R2

NUT

union, self-sealing coupling half, rear

2шт.

18

360241R91

HOSE, hydraulic cylinder (1/4 x 39" long) (will work for 360242R91 and 361952R91)

2шт.

19

357964R92

COUPLING

half, self sealing, female, 353218R91, w/nut, 357965R2

2шт.
