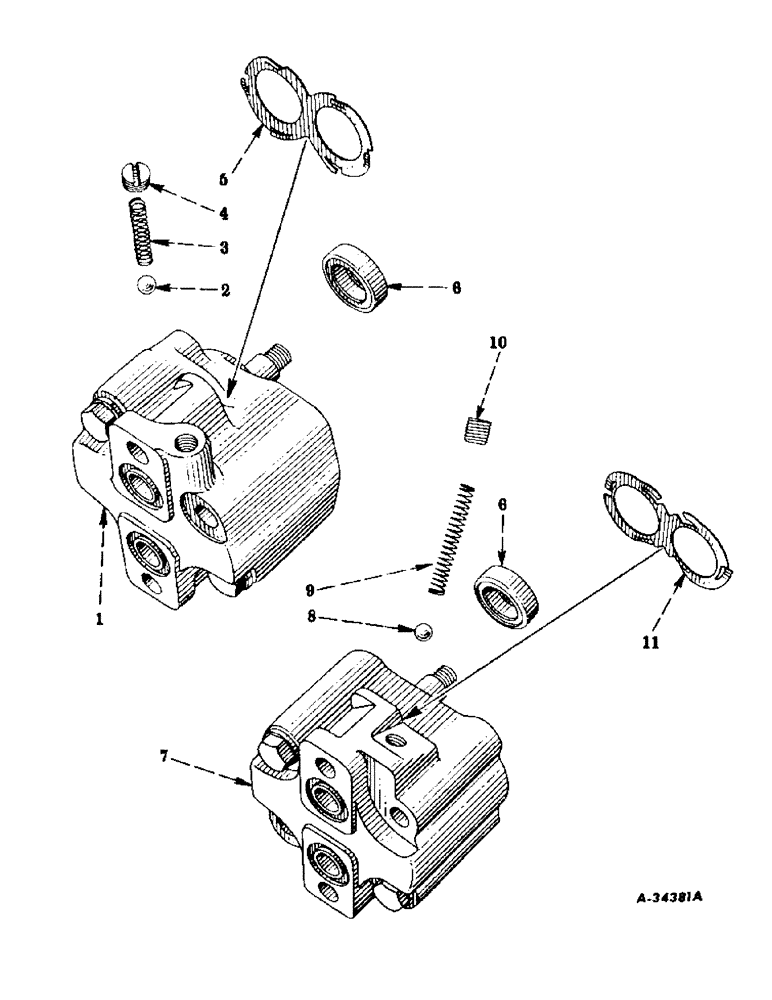

Запчасти Case IH 200 (251) - HYDRAULIC SYSTEM, HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

360689R92

PUMP

hydraulic, assembly (Pesco) (optional with 360945R92) (composed of (1) ball 16008R1, (1) ring 353186R1 (NSS), (1) body, w/four bearings two bolts, cover, two pump gears, and two washers (NSS), (2) ring 253070R1 (NSS), (1) screw 186282

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 2-3/4"

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

16008R1

BALL,1/4" Dia, Steel

chrome, stl., 1/4" dia. (used only with Pesco pumps)

1шт.

3

361627R1

SPRING, ball check (used only on Pesco pumps)

1шт.

4

361628R1

PLUG, ball check (used only on Pesco pumps)

1шт.

5

361625R1

SPRING, bearing cover (used on Pesco pumps)

1шт.

6

353183R91

OIL SEAL

OIL SEAL, pump shaft

1шт.

7

360945R92

PUMP

hydraulic, assembly (Thompson) (optional with 360689R92) (composed of (1) ball 16009R1, (1) plug 361631R1, (1) body w/four bearings, two bolts, cover, and two pump gears (NSS), (1) ring 253070R1 (NSS), (1) ring 293726R1, (2) screw 179851

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

16009R1

BALL

chrome stl., 9/32" dia., (used on Thompson pumps)

1шт.

9

361630R1

SPRING, ball check (used on Thompson pumps)

1шт.

10

361631R1

PLUG, ball check (used on Thompson pumps)

1шт.

11

361629R1

SPRING

pressure plate (used on Thompson pumps)

1шт.

355362R91

PACKAGE

hydraulic pump mounting gasket (composed of (1) gasket 350706R2, (1) gasket 350708R1, (2) ring 350667R1)

1шт.

360691R91

STRIPPER PACKAGE

PACKAGE, manifold and pump seal ring and gasket (used only on Pesco pumps) (composed of (1) gasket 350706R2, (2) ring 350667R1, (1) gasket 350708R1, (1) ring 353186R1 (NSS), (1) key 106749, (2) ring 253070R1 (NSS), (1) oil seal 353183R91

1шт.

360957R91

GASKET KIT

PACKAGE, manifold and pump seal ring and gasket (used only on Thompson pumps) (composed of (1) gasket 350706R2, (1) gasket 350708R1, (1) key 106749, (1) oil seal 353183R91, (2) ring 350667R1, (1) ring 253070R1 (NSS), (1) ring 293726R1 (NSS)

1шт.

365101R1

PLUG

pipe, 168" (manifold flange, rear) (will work for 50410DA)

1шт.

362355R3

PLUG

pipe, sq. socket-stl., (manifold flange, rear) (will work for 50474DA)

2шт.
