Запчасти Case IH 200 (249) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER, 2-1/2 INCH X 8 INCH (07) - HYDRAULIC SYSTEM

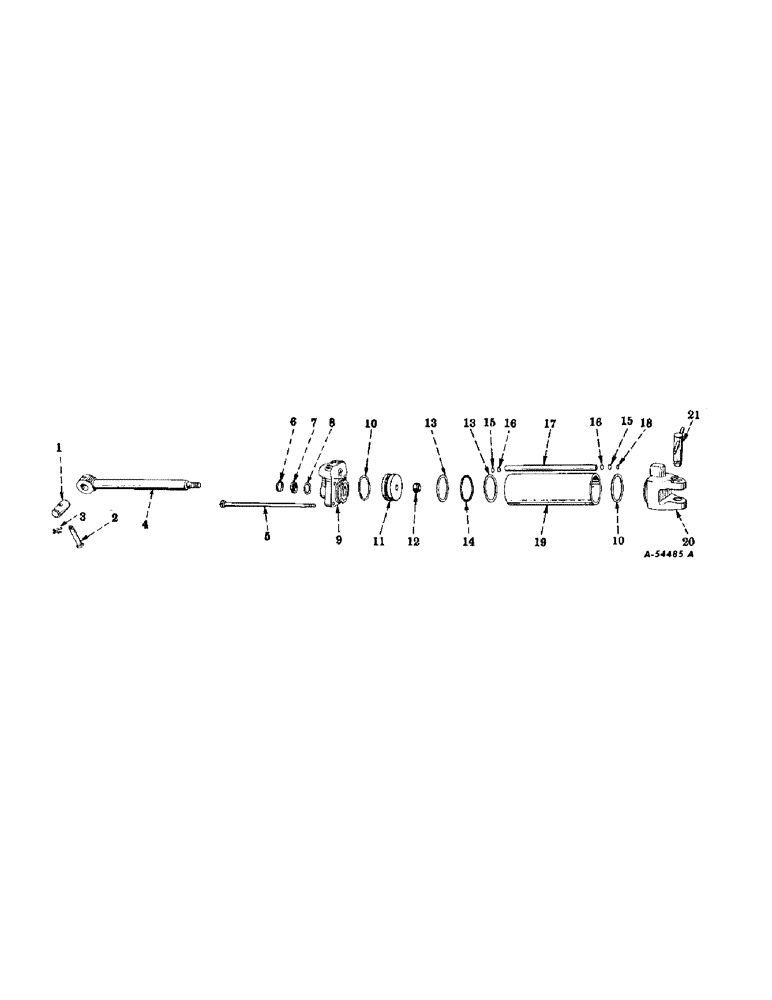

Схема запчастей Case IH 200 - (249) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER, 2-1/2 INCH X 8 INCH (07) - HYDRAULIC SYSTEM
18
5
21
12
18
2
16
6
16
14
10
13
8
9
4
10
20
11
3
13
1
15
15
7
17

Артикул

Название

Примечание

Количество

371290R92

CYLINDER, hydraulic (2-1/2 x 8"), assembly

1шт.

1

371212R1

PIN

hydraulic cylinder housing pivot

1шт.

2

371213R1

PIN, lock, housing pivot pin

1шт.

3

356893R2

WASHER

"X" pivot pin lock pin

1шт.

4

366278R1

ROD

piston

1шт.

5

18179R1

BOLT, machine, hex-hd., 7/16-14NC x 12-1/8"

4шт.

6

354049R1

RETAINER

piston rod dust seal

1шт.

7

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust, piston rod

1шт.

8

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

gland, cylinder piston rod

1шт.

9

371293R21

HEAD, hydraulic cylinder, front w/four balls

1шт.

10

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

RING, seal, hydraulic cylinder

2шт.

11

361000R1

HEAD

piston

1шт.

12

361011R1

NUT

lock piston rod

1шт.

13

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

back-up, piston head

2шт.

14

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING, seal, piston head

1шт.

15

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, cylinder return tube

2шт.

371218R1

BACK-UP RING

WASHER, back-up, return tube o-ring

2шт.

16

354835R1

WASHER

cylinder return tube

2шт.

17

371211R11

TUBE

cylinder return, w/two washers, 354835R1

1шт.

18

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

hydraulic cylinder

1шт.

20

371294R11

HEAD, hydraulic cylinder, rear, w/plug, 362355R3

3шт.

362355R3

PLUG

pipe, cylinder head, 1/4"

1шт.

21

366279R11

PIN

hydraulic cylinder pivot, w/handle

1шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

1шт.

363137R92

SEAL KIT

PACKAGE, hydraulic cylinder seal ring 2-1/2 x 8" (consists of (1) ring 350429R1, (2) ring 293726R1, (1) ring 350657R1, (1) ring 360599R1, (2) ring 352221R1, (1) seal 354048R1, (1) ring 354047R1, (2) washer 361013R1, (2) washer 371218R1)

1шт.

Выбрано товаров: 26
