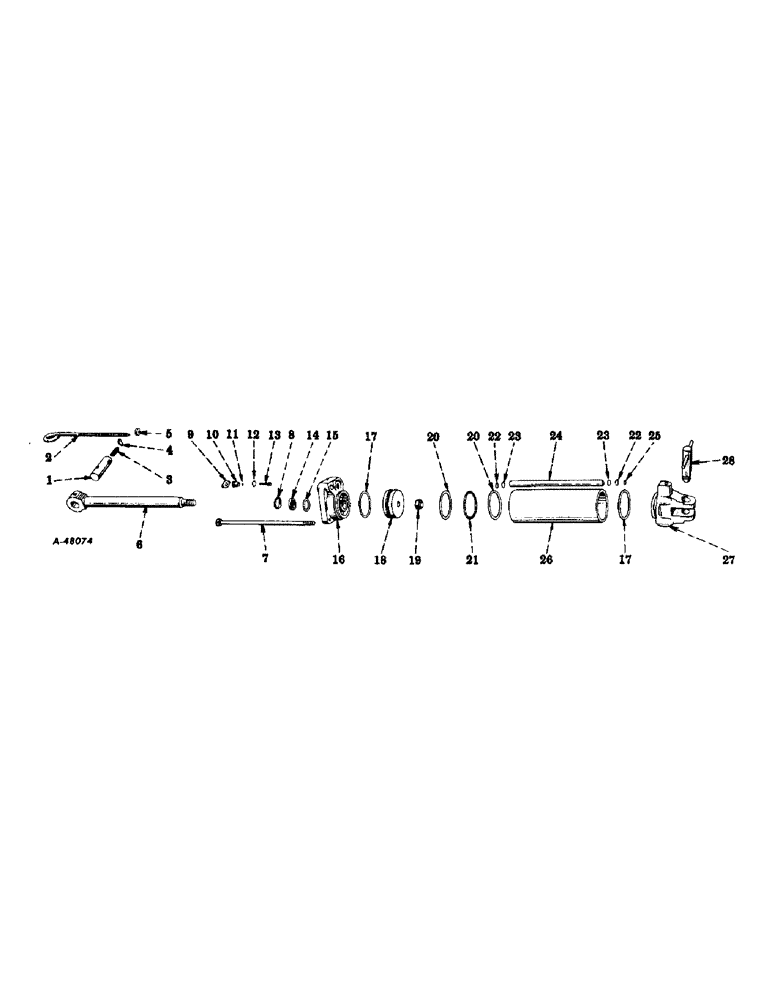

Запчасти Case IH 200 (244) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER, 2-1/2 INCH X 8 INCH (07) - HYDRAULIC SYSTEM

366274R91

CYLINDER, hydraulic (2-1/2 x 8") assembly

1шт.

1

367617R1

HOUSING, hydraulic cylinder pivot pin

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

137248

PIN, cotter, cd-pltd., 5/32 x 2-1/4"

1шт.

2

366284R1

ROD

hydraulic cylinder adjustable stop

1шт.

3

G3792

SPRING

adjustable stop rod

1шт.

4

366282R1

STOP

cylinder adjustable rod

1шт.

5

368762R1

DISC, limit stroke

1шт.

142956

PIN

standard groove, 3/32 x 1"

1шт.

6

366278R1

ROD

piston

1шт.

7

18179R1

BOLT, machine, hex-hd., 7/16-14NC x 12-1/8"

4шт.

8

354049R1

RETAINER

piston rod dust seal

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

2шт.

10

361007R11

RETAINER

limit stop valve, w/seal ring retainer

1шт.

11

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

RING, seal, limit stop valve

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, limit stop valve retainer

1шт.

13

361006R11

VALVE

limit stop, w/seal

1шт.

14

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust, piston rod

1шт.

15

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

gland, cylinder piston rod

1шт.

16

367613R11

HEAD, hydraulic cylinder (piston rod end), w/two plugs, 362355R3, two plugs, 362356R3, and three, 50410DA

1шт.

50410DA

PLUG

pipe, cylinder head, 1/8"

3шт.

362355R3

PLUG

pipe, cylinder head, 1/4"

2шт.

362356R3

PLUG, pipe, cylinder head, 1/2"

2шт.

17

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

RING, seal, hydraulic cylinder

2шт.

18

361000R1

HEAD

piston

1шт.

19

361011R1

NUT

lock, piston rod

1шт.

20

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

back-up, piston head

2шт.

21

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING, seal, piston head

1шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, cylinder return tube

2шт.

23

354835R1

WASHER

cylinder return tube

2шт.

24

354834R11

SLEEVE

TUBE, cylinder return, w/two washers, 354835R1

1шт.

25

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

hydraulic cylinder

1шт.

27

365276R11

HEAD, hydraulic cylinder (bottom end), w/plug, 50410DA

1шт.

50410DA

PLUG

pipe, cylinder head, 1/8"

1шт.

28

366279R11

PIN

hydraulic cylinder pivot, w/handle

1шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

1шт.

363137R92

SEAL KIT

PACKAGE, hydraulic cylinder seal ring 2-1/2 x 8" (consists of (1) ring 350429R1, (2) ring 293726R1, (1) ring 350657R1, (1) ring 360599R1, (2) ring 352221R1, (1) seal 354048R1, (1) ring 354047R1, (2) washer 361013R1, (2) washer 371218R1)

1шт.
