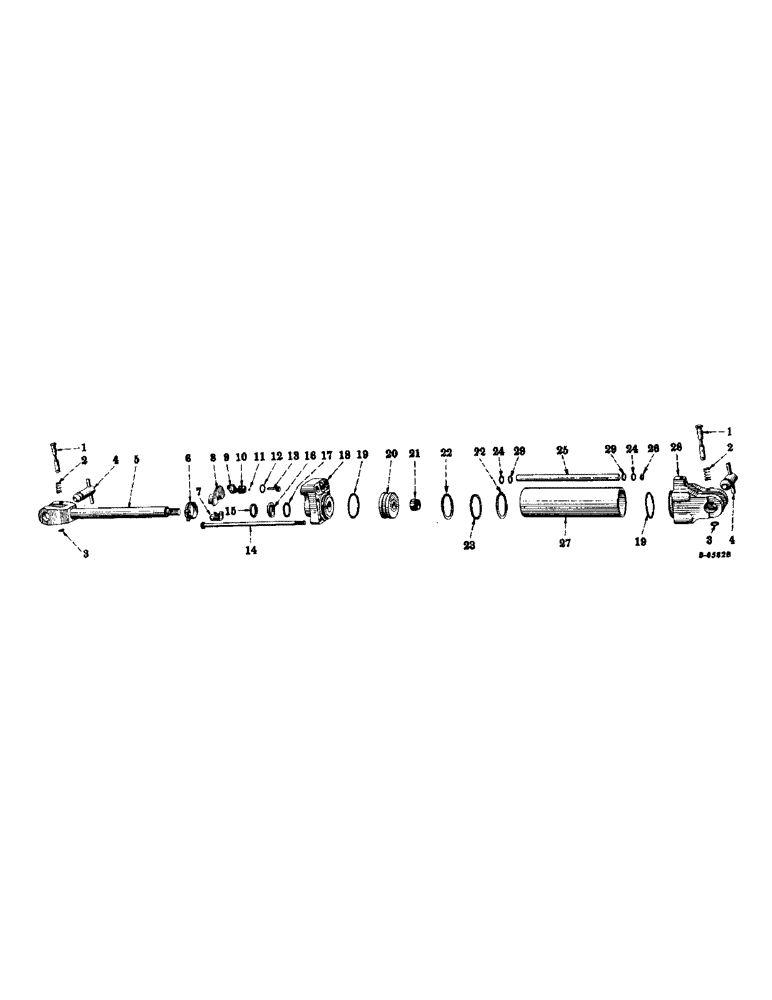

Запчасти Case IH 200 (242[1]) - HYDRAULIC SYSTEM, REMOTE CONTROL CYLINDER, 2-1/2 X 8 INCH WITH 3/16 INCH DIAMETER LIMIT STOP VALVE (07) - HYDRAULIC SYSTEM

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

352231R11

PIN

cylinder pivot, w/handle

2шт.

5

361005R11

PISTON ROD

ROD, piston, w/yoke

1шт.

6

361085R91

CLAMP

stroke limit collar, w/screw (optional with 361087R91)

1шт.

6

361087R91

CLAMP, stroke limit collar, w/screw (optional with 361085R91)

1шт.

7

360372R1

COLLAR

stroke limit plain half

1шт.

8

361010R1

COLLAR

stroke limit flanged half

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

2шт.

10

361007R11

RETAINER

limit stop valve, w/seal ring retainer

1шт.

11

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

RING, seal, limit stop valve

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, limit stop valve retainer

1шт.

13

361006R11

VALVE

limit stop, w/seal

1шт.

14

363880R1

BOLT, cylinder tie (will work for 18179R1)

4шт.

15

354049R1

RETAINER

piston rod dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust, piston rod

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

gland, cylinder piston rod

1шт.

18

360998R11

HEAD

hydraulic cylinder, front, w/two plug, 444691, two plug 444703, and three plug 365101R1)

1шт.

444691

PLUG

automotive pipe, hex-socket, stl., 1/4" (optional with 362355R3)

2шт.

444703

PLUG,Hex Soc, 1/2"-14

automotive pipe, hex-socket, stl., 1/2" (optional with 362356R3)

2шт.

365101R1

PLUG

pipe, cylinder head (1/8") (will work for 50410DA)

3шт.

362355R3

PLUG

pipe, cylinder head (1/4") (optional with 444691)

2шт.

362356R3

PLUG, pipe, cylinder head (1/2") (optional with 444703)

2шт.

19

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

RING, seal, hydraulic cylinder

2шт.

30

361000R1

HEAD

piston

1шт.

21

361011R1

NUT

lock, piston rod

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

back-up, piston head (optional with 362088R1)

2шт.

22

362088R1

WASHER

back-up, piston head (optional with 361013R1)

2шт.

23

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING, seal, piston head

1шт.

24

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, cylinder return tube

2шт.

25

354834R11

SLEEVE

TUBE, cylinder return, w/two washers

1шт.

26

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

hydraulic cylinder

1шт.

28

360999R11

HEAD

hydraulic cylinder, rear, w/plug, 365101R1

1шт.

365101R1

PLUG

pipe, cylinder head rear (1/8") (will work for 50410DA)

1шт.

29

354835R1

WASHER

cylinder return tube

2шт.

363137R92

SEAL KIT

PACKAGE, 2-1/2 x 8" hydraulic cylinder seal ring (consists of (1) ring 350429R1, (2) ring 293726R1, (1) ring 350657R1, (1) ring 360599R1, (2) ring 352221R1, (1) seal 354048R1, (1) ring 354047R1, (2) washer 361013R1, (2) washer 371218R1)

1шт.
