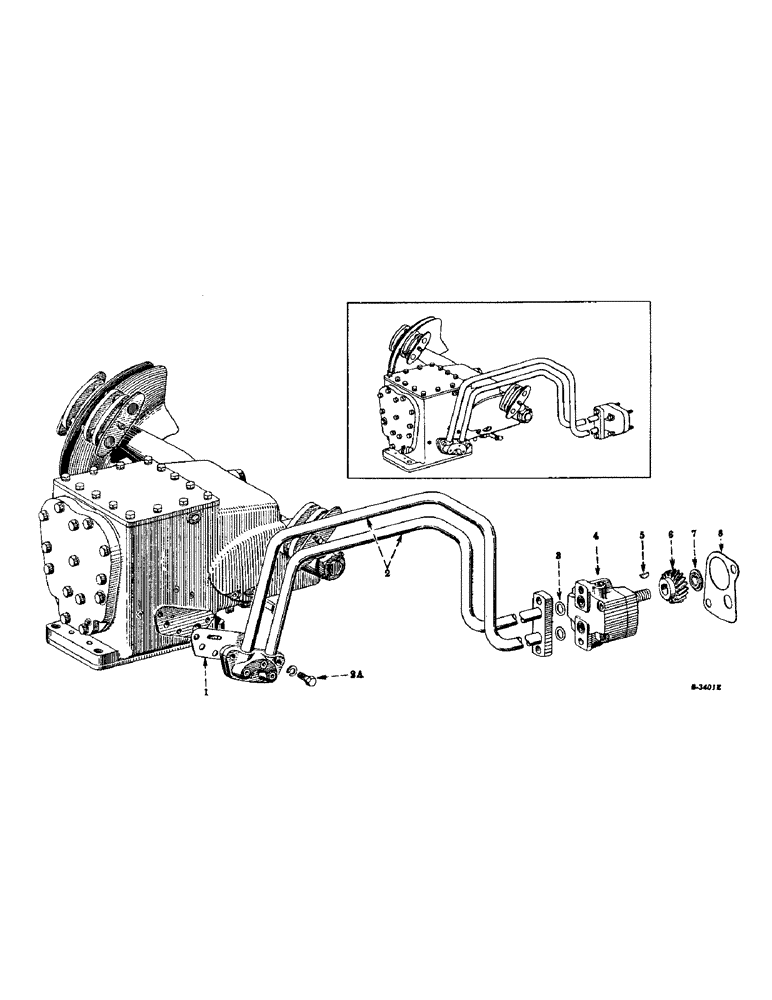

Запчасти Case IH 200 (228) - HYDRAULIC SYSTEM, TOUCH-CONTROL SYSTEM, FARMALL 200 TRACTORS, HYDRAULIC PUMP AND MANIFOLD TUBES (07) - HYDRAULIC SYSTEM

1

350706R2

GASKET

manifold rear flange (not used on tractors equipped with hydraulic remote control attachment)

1шт.

2

350701R94

HYD TUBE

TUBES, manifold, w/two flanges, plug 50410DA and two plugs, 362355R3 (not used on tractors equipped with hydraulic remote control attachment)

1шт.

2

356779R92

HYD TUBE

TUBES, manifold (tractors equipped with hydraulic remote control attachment) (illustrated with auxiliary control valve and connections)

1шт.

103026

NUT,3/8"-24, G5

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd, 3/8-16 NC x 1-1/4" (Tractor equipped with hydraulic remote control attachment)

2шт.

181381

BOLT,Hex, 3/8" - 24 x 2 1/2", Gr 5

SCREW, cap, hex-hd, 3/8-24 NF x 2-1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (4 used on tractors equipped with remote control attachment) 3/8"

2шт.

2a

353331R1

SCREW, cap, manifold rear flange (not used on tractors equipped with hydraulic remote control attachment)

3шт.

3

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, manifold front flange

2шт.

4

NSS

NOT SOLD SEPARAT

PUMP, touch control (for components see list of parts under details of "Hydraulic Pump")

1шт.

5

106749

KEY

Woodruff, No. 3

1шт.

6

350709R1

GEAR

drive, touch-control pump (16 teeth)

1шт.

7

351818R1

WASHER

drive gear, touch-control pump

1шт.

8

350708R1

GASKET

touch control pump

1шт.

365101R1

PLUG

pipe, 1/8" (manifold flange, rear) (will work for 50410DA)

1шт.

362355R3

PLUG

pipe, sq-socket stl, 1/4" (manifold flange, rear) (will work for 50474DA)

2шт.
