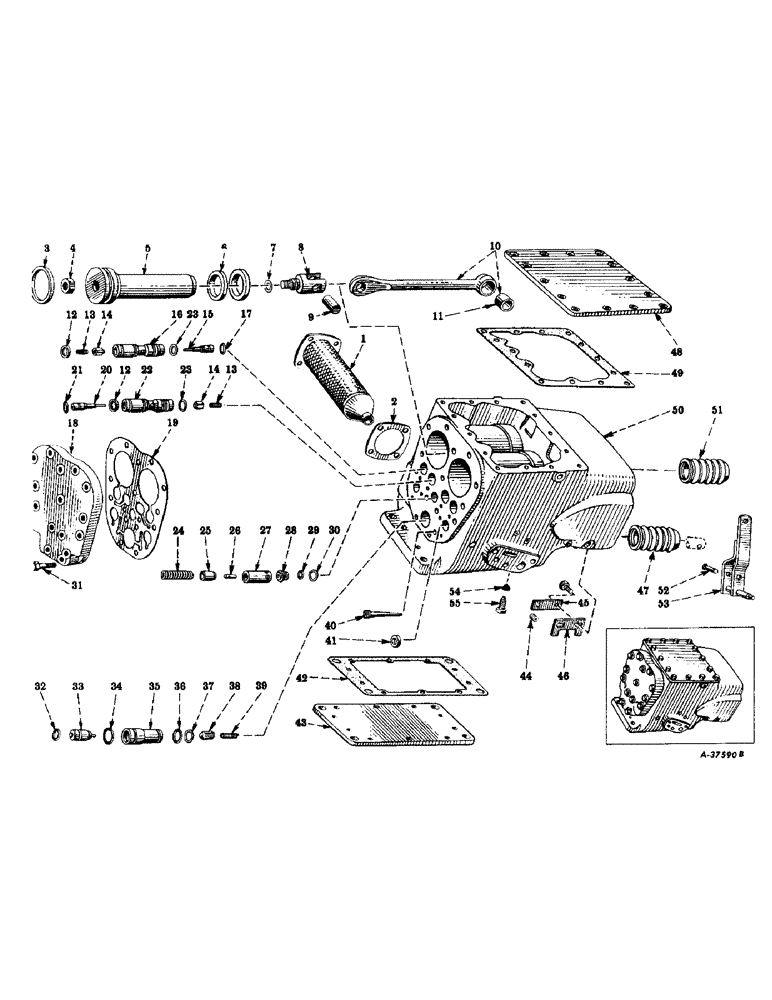

Запчасти Case IH 200 (224) - HYDRAULIC SYSTEM TOUCH-CONTROL SYSTEM, FARMALL 200 TRACTORS, CYLINDER BLOCK VALVES AND RELATED PARTS (07) - HYDRAULIC SYSTEM

359560R95

TOUCH CONTROL, assembly, composed of (1) block 364659R91, (1) rockshaft 359558R91, (4) screw, 271569, (4) washer 103325

1шт.

354465R99 Package, touch-control (complete package discontinued) (consists of parts listed in touch control units -

1шт.

1

354355R91

STRAINER ASSY.

STRAINER, cylinder block oil (for tractors not equipped with heat indicator)

1шт.

1

355844R91

SCREEN

STRAINER, cylinder block oil (for tractors equipped with heat indicator)

1шт.

Service parts for tractors equipped with touch control (Farmall 200)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd, 1/4-20NC x 9/16"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

350651R1

GASKET

cylinder block oil strainer

1шт.

3

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL, piston head

2шт.

4

354513R1

NUT, connecting rod yoke

2шт.

103334

LOCK WASHER

WASHER, lock, light, 5/8"

2шт.

5

355348R91

PISTON, (optional with 357372R91)

2шт.

5

357372R91

PISTON

(optional with 355348R91)

2шт.

6

350658R1

O-RING

SEAL, piston sleeve

4шт.

7

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, connecting rod yoke

2шт.

8

355353R1

YOKE

connecting rod

2шт.

9

350661R1

PIN, connecting rod yoke

2шт.

10

350659R11

ROD

connecting, w/bushing, 350019R1

2шт.

11

350019R1

BUSHING

connecting rod

2шт.

12

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve bushing

4шт.

13

350668R1

VALVE SPRING

SPRING, check valve

4шт.

14

354057R2

VALVE

check

4шт.

15

353953R1

SHAFT

ACTUATOR, rear check valve (has no identifying grooves)

2шт.

16

355369R1

VALVE

BUSHING, rear check valve

2шт.

17

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, check valve actuator

2шт.

18

354353R11

HEAD, cylinder, w/plug, 444691

1шт.

19

354354R3

CYLINDER HEAD GASKET

cylinder head

1шт.

20

353953R1

SHAFT

ACTUATOR, front check valve (has no identifying grooves)

2шт.

21

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, check valve actuator

2шт.

22

355368R1

VALVE

BUSHING, front check valve

2шт.

23

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve, bushing

4шт.

24

361340R2

VALVE SPRING

SPRING, safety valve

1шт.

25

361342R1

SLEEVE

safety valve

1шт.

26

361341R3

PISTON ASSY.

PISTON, safety valve

1шт.

27

360474R1

BUSHING

outer, safety valve

1шт.

28

360475R1

BUSHING

inner, safety valve

1шт.

29

355966R1

O-RING,0.424" ID x 0.103" Width

RING, seal, safety valve inner bushing

1шт.

30

360476R1

VALVE SPRING

SPRING, tension, safety valve bushing

1шт.

31

354388R1

BOLT (SPREADER),Hex, 7/16" - 14 x 1 3/4", Gr 8

SCREW, cap, cylinder head

14шт.

32

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, pressure regulator valve piston

1шт.

33

360724R11

PISTON ASSY.

PISTON, pressure regulator valve, w/retainer, rod and spring

1шт.

34

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, rear pressure regulator valve bushing

1шт.

35

360725R1

VALVE BODY

BUSHING, pressure regulator valve

1шт.

36

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING, seal, front, pressure regulator valve bushing

1шт.

37

360727R1

SPRING WASHER

SPRING, tension, pressure regulator valve

1шт.

38

360726R1

LOCK VALVE

VALVE, check, pressure regulator

1шт.

39

360728R1

VALVE SPRING

SPRING, pressure regulator check valve

1шт.

40

353853R41

ORIFICE

PLUG AND SCREEN, pressure regulator valve orifice (optional with 355372R93)

1шт.

40

355372R93

VENT

PLUG AND SCREEN, pressure regulator valve orifice (optional with 353853R41)

1шт.

41

350672R1

O-RING,0.482" ID x 0.153" Width

RING, seal control valve

2шт.

42

350646R1

GASKET

cylinder block cover

1шт.

43

350645R1

COVER, cylinder block

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

44

365101R1

PLUG

cylinder block (will work for 50410DA)

16шт.

45

354360R1

BLOCK, tapping, control valve operating lever stop

2шт.

46

354674R1

STOP

control valve operating lever

2шт.

191244

SCREW,5/16" - 24 x 7/8"

cap, hex-hd, 5/16-24NF x 7/8"

4шт.

47

364832R1

INSULATOR

BOOT, control valve (rubber) (will work for leather boot, 351753R3)

2шт.

68251D

WIRE, lkg., no. 18 ga x 4" long (used only with leather boot)

2шт.

351812R1

WIRE, lkg., no. 18 ga x 6-1/2" long (used only with leather boot)

2шт.

48

357637R1

COVER, hydraulic cylinder block top (with csk. holes)

1шт.

Service parts for tractors equipped with touch control (Farmall 200)

1шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

machine, slotted-fl-hd., 5/16-18 NC x 3/4"

14шт.

Service parts for tractors equipped with touch control (Farmall 200)

1шт.

48

355351R1

COVER, hydraulic cylinder blocktop (w/plain holes)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

49

355352R1

GASKET

hydraulic cylinder block top cover

1шт.

50

362451R92

BLOCK, cylinder assembly (composed of (1) block 357657R5 (NSS), (1) gasket 3405H, 18 plug 365101R1, (1) plug 172592, (1) plug 359875R1, (1) plug 103867, (2) screen 354269R1, (2) screw 102570, (2) ring 350672R1, (2) valve 354264R91, (2) valve 354357R1 (NSS

1шт.

63556R1

PLUG

expansion 2"

1шт.

103867

PLUG

pipe, sq-hd, C.I., 3/8" (optional with 103879)

1шт.

103879

PLUG, pipe, sq-hd, stl., 3/8" (optional with 103867)

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, cylinder block, mounting

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Fuel tank attaching screw) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set, hex-socket, 1/4-20 NC x 3/8" (in control valve)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

50

364659R91

BLOCK, cylinder, assembly (will work for 354351R99) (composed of reference numbers 1 to 55 inclusive, also (1) brace 350678R1, (1) brace 350679R1, (2) link 350677R2, (4) nut 110633, (4) pin 103397, (2) pin 103373, (2) pin 350662R1, (2) in 350680R2

1шт.

51

364832R1

INSULATOR

BOOT, piston sleeve (rubber) (will work for leather boot, 351754R3)

2шт.

19526D

WIRE, lkg., no. 18 ga x 10" long (used only with leather boot)

2шт.

68251D

WIRE, lkg., no. 18 ga x 4" long (used only with leather boot)

2шт.

52

354358R1

PIN

control valve

2шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

53

354366R92

LEVER

operating, control valve, w/pin

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

54

354269R1

SIEVE

SCREEN, relief valve

2шт.

55

354264R91

VALVE

relief, w/plug, poppet, and spring

1шт.

350727R1

CLIP, governor control rod (illustrated with rod)

1шт.

372703R1

FLUID, hy-tran (quart can) (not included in touch-control parts accessory)

1шт.

Service parts for tractors equipped with touch control (Farmall 200)

1шт.

372704R1

TRANSMISSION OIL

FLUID, hy-tran (gallon can) (not included in touch-control parts accessory

1шт.

Service parts for tractors equipped with touch control (Farmall 200)

1шт.

372705R1

FLUID

hy-tran (five gallon can) (not included in touch-control parts accessory)

1шт.

3405H

GASKET

filler plug

1шт.

354007R96

GASKET KIT

PACKAGE, service, cylinder block gasket and seal ring (consists of (1) gasket 350646R1, (1) gasket 350651R1, (1) gasket 350706R2, (1) gasket 353771R2, (1) gasket 354354R3, (1) gasket 355352R1, (4) ring 355967R1, (4) ring 350429R1, (2) ring 350657R1

1шт.

365101R1

PLUG

control valve (will work for 50410DA)

2шт.

444691

PLUG

pipe, 1/4" in cylinder head) (optional with 362355R3)

1шт.

362355R3

PLUG

pipe, 1/4" (in cylinder head) (optional with 444691)

1шт.
