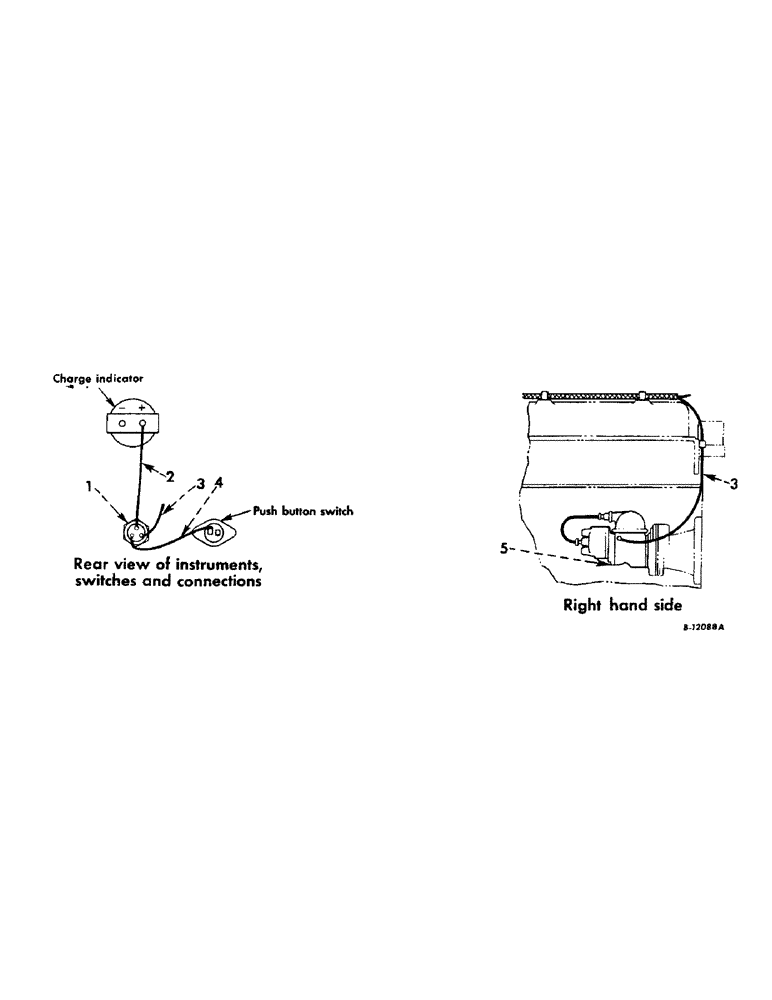

Запчасти Case IH 200 (124) - ELECTRICAL SYSTEM, MAGNETO IGNITION SYSTEM, 6 VOLT, TRACTORS WITH STARTING AND LIGHTING (06) - ELECTRICAL SYSTEMS

1

373142R91

SWITCH, magneto ignition, assembly (for components see list of parts under details of "magneto ignition switch")

1шт.

2

367166R91

CABLE, charge indicator to magneto ignition switch

1шт.

3

NSS

NOT SOLD SEPARAT

CABLE, magneto ignition switch to magneto (order harness, as in battery ingnition)

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, machine, slotted-fil-hd., cd-pltd., no. 10-32NF x 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

4

363841R91

CABLE, magneto ignition switch to push button switch

1шт.

5

371893R91

MAGNETO, assembly (for components see list of parts under details of "magneto")

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24523D

WASHER

magneto mounting screw

2шт.
