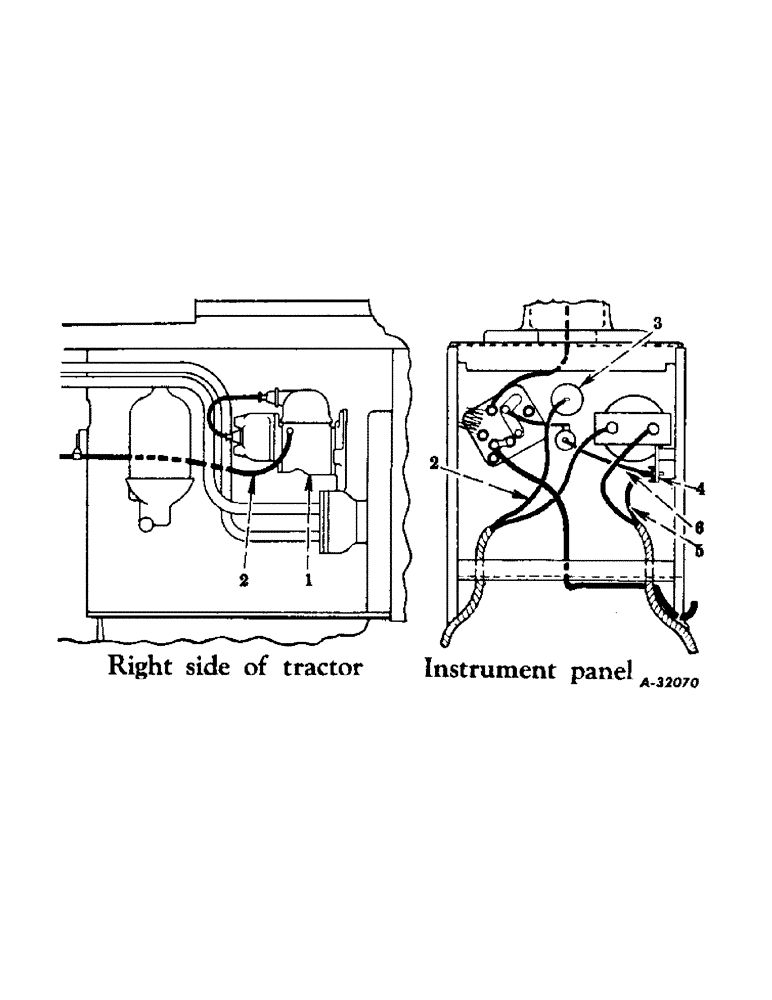

Запчасти Case IH 200 (123) - ELECTRICAL SYSTEM, STARTING & LIGHTING SYSTEM, MAGNETO IGNITION, 6 VOLT, FARMALL 200 & 230 TRACTORS (06) - ELECTRICAL SYSTEMS

1

351218R92

MAGNETO

assembly (for components see list of parts under detail of "magneto")

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

358114R91

CABLE, ignition, Serial Range: switch-magneto

1шт.

3

54207DB

SWITCH

magneto ignition assembly (for components see list of parts under detail of "magneto ignition switch")

1шт.

4

42915D

BLOCK

junction, w/screw

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

110531

SCREW

slotted-rd-hd., 10-24NC x 7/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

5

NSS

NOT SOLD SEPARAT

CABLE, junction block to regulator "L" terminal (natural with open cross tracers)

1шт.

6

NSS

NOT SOLD SEPARAT

CABLE, fuse housing to junction block

1шт.
