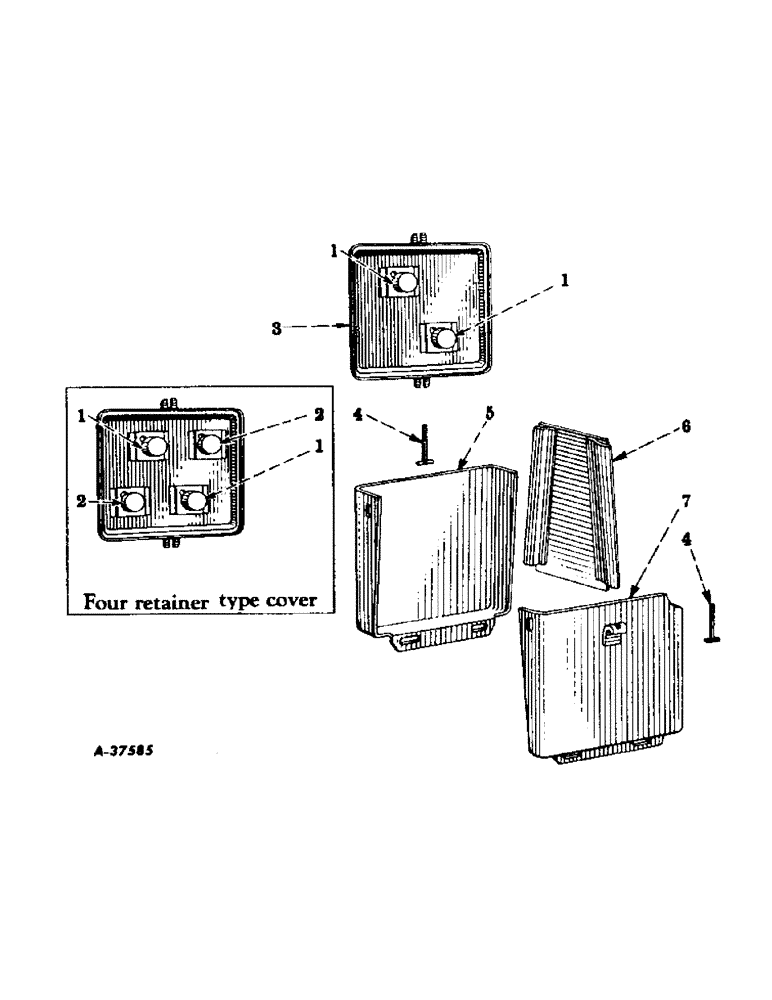

Запчасти Case IH 200 (109) - ELECTRICAL SYSTEM, BATTERY BOX, FARMALL 200 AND 230 TRACTORS (06) - ELECTRICAL SYSTEMS

1

351814R2

RUBBER, battery hold-down, long

2шт.

2

51714D

RUBBER, battery hold-down, short (used only with four type cover)

2шт.

3

350637R92

COVER ASSY

COVER, battery box w/two retainers

1шт.

4

50939DA

SPECIAL BOLT,1/4" - 20 x 2 1/4"

SCREW, battery box cover hold-down

2шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

Q391

WASHER

plain, 9/32" I.D. x 5/8" O.D. x no. 18 ga.

2шт.

5

367215R91

SIDE, battery box, L.H., w/clip (for tractors with fast-hitch)

1шт.

5

358540R11

SIDE ASSY.

SIDE, battery box, L.H., w/clip (for tractors witout fast-hitch)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

3шт.

6

358542R11

SUPPORT

COVER, battery box front cover (for tractors without touch control)

1шт.

7

358541R11

SIDE ASSY.

SIDE, battery box, R.H., w/clip

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

95-11041

WASHER,3/8"

plain, 9/32" I.D. x 5/8" O.D. x no. 18 ga.

2шт.

BS T1 Battery

1шт.
