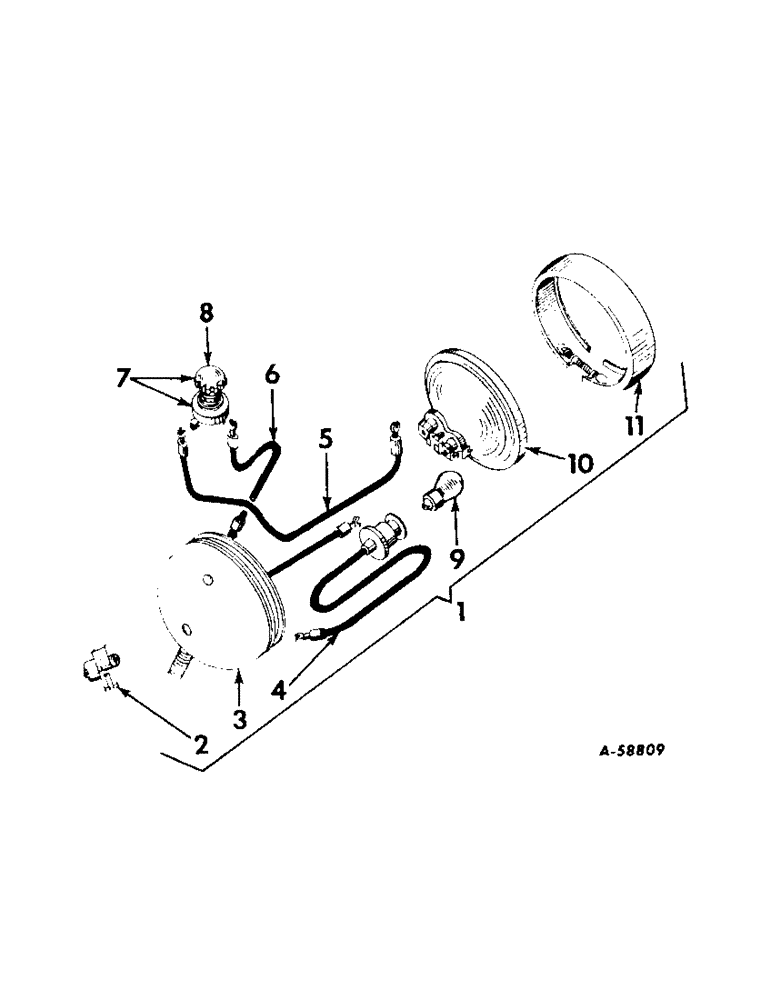

Запчасти Case IH 200 (101) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT, SEALED BEAM (06) - ELECTRICAL SYSTEMS

1

373305R91

LIGHT

combination rear light and tail light (6 volt) assembly

1шт.

2

365664R91

ELEC CONNECTOR

CONNECTOR TERMINAL, assembly

1шт.

3

NSS

NOT SOLD SEPARAT

BODY, light (not serviced separately - order light assembly)

1шт.

4

373310R91

SOCKET AND WIRE, switch to red light

1шт.

5

373311R91

WIRE, switch to sealed beam unit

1шт.

6

373311R91

WIRE, Serial Range: switch-connector

1шт.

7

373308R91

LIGHT SWITCH

SWITCH, light, assembly

1шт.

8

373309R1

KNOB

light switch

1шт.

9

454493

LAMP, no. 209, 6 volt #209, Type C-6, 6V

1шт.

10

371458R91

SEALED BEAM UNIT

UNIT, sealed beam

1шт.

11

371450R91

BEZEL

MOULDING, assembly

1шт.

365697R1

NUT, hex. no. 8-32NC

1шт.

132489

SCREW, mach. slt-fil-hd. no. 8-32NC x 1-1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.
