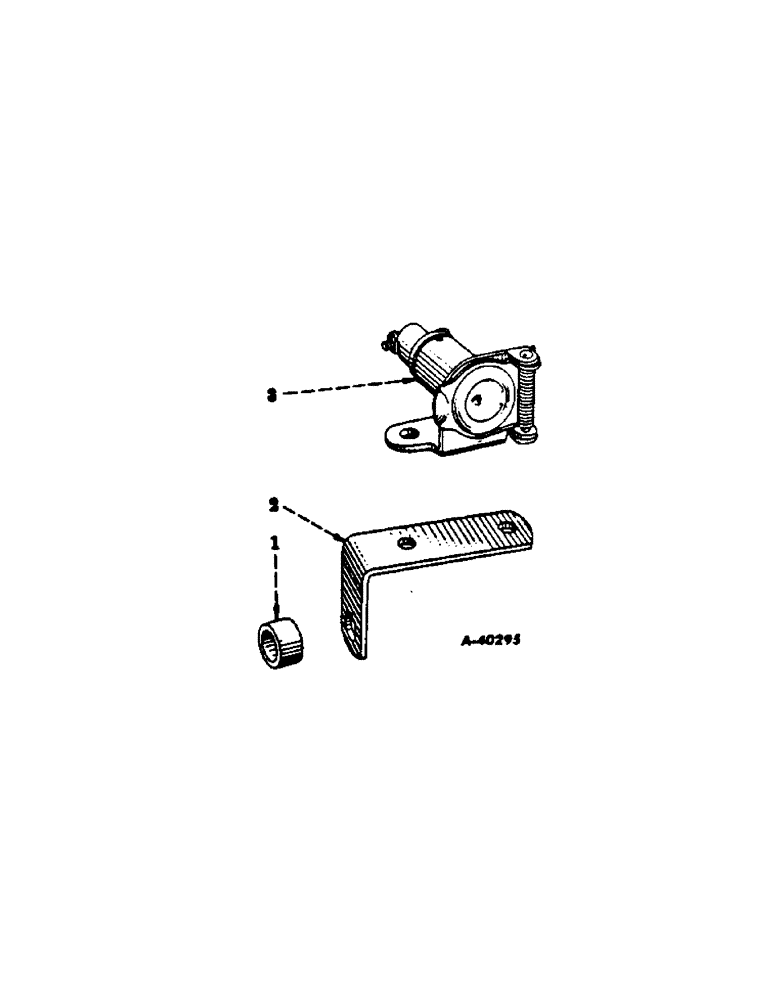

Запчасти Case IH 100 (08-41) - ELECTRICAL, ELECTRICAL BREAK-AWAY CONNECTOR SOCKET (06) - ELECTRICAL

1

526712R1

BUSHING

SPACER, socket mounting bracket, 9/16 in. long

1шт.

1

364002R1

SPACER,3/8" Pipe x 1"

socket mounting bracket, 1 in. long

1шт.

2

364004R1

BRACKET, break-away connector socket mounting

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

1шт.

120575

SCREW, 1/4-20 x 1-1/2 slt-truss-hd mach

2шт.

61401V

SPACER, electrical break-away socket mounting

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

362002R92

SOCKET

ASSY, electrical break-away connector

1шт.

109084

NUT,1/4"-20, G5

2шт.

120572

SCREW, 1/4-20 x 3/4 slt-truss-hd mach

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

NSS

NOT SOLD SEPARAT

CABLE, break-away connector socket to rear light, order cable, 358572R92, terminal, no. 10 type B and sleeve, 364003R1

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

NSS

NOT SOLD SEPARAT

CABLE, break-away connector socket to ground terminal, order cable, 358572R92, terminal, 7/16 type B and sleeve, 364003R1

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

358572R92

CABLE, w/2 sleeves & terminals, to make 2 break-away connector socket cables from this cable, measure & cut length needed for each cable from each end terminal, then assemble 1 sleeve, 364003R1 & 1 terminal no. 10 or 7/16 type B to complete each cable

1шт.
