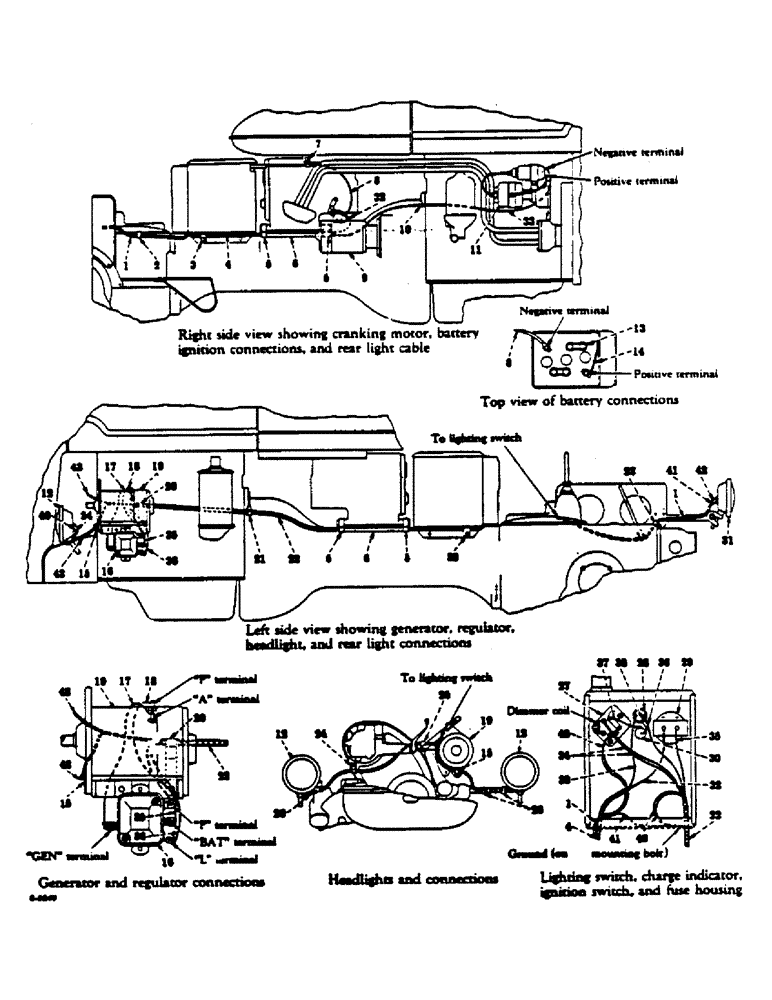

Запчасти Case IH 100 (08-22) - ELECTRICAL, STARTING AND LIGHTING, BATTERY IGNITION, 6 VOLT, FOR 100 AND 130 SERIES TRACTORS (06) - ELECTRICAL

1

363476R91

SPARE PART HARNESS ASSY, lighting switch to rear light

1шт.

2

363477R1

SPARE PART CLIP, rear light cable, on starting crank mounting bracket bolt

1шт.

3

359526R1

SPARE PART CLIP, cable, on battery box mounting bolt

1шт.

4

358109R92

HARNESS

HARNESS ASSY, ignition and lighting

1шт.

5

350741R1

SPARE PART CLIP, harness, on touch-control cylinder block mounting bolts

4шт.

5

351673R1

CLIP

CLIP, cable harness, for 100 series tractors not equipped with touch-control

4шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

BOLT, Hex, 1/2"-13 x 3/4", G5, Full Thd

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

69576C1

SPARE PART CONDUIT, convoluted, replaces 363479R1

2шт.

7

362123R1

CLIP

CLIP, battery cable, on fuel rear mounting screw

1шт.

8

367139R91

CABLE

CABLE W/BOLT, 356062R91, battery to cranking motor

1шт.

356062R91

BOLT

BOLT ASSY, terminal

1шт.

9

1107093

SPARE PART MOTOR ASSY, cranking, order 1108098, for components see list of parts under details of cranking motor

1шт.

9

104221A2GV

STARTER MOTOR

Value, 6V, 10MT Inertia

1шт.

9

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia

1шт.

9

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

363480R1

SPARE PART CLIP, ignition switch to coil cable, on clutch housing bolt

1шт.

11

NSS

NOT SOLD SEPARAT

BATTERY IGNITION UNIT, refer to C-123 engine section B in eng-1 parts catalog

1шт.

12

NSS

NOT SOLD SEPARAT

LIGHT ASSY, head, refer to head lights, rear lights and support

2шт.

13

355196R93

SPARE PART BATTERY, prestolite 1110x, 6 volt

1шт.

14

350736R91

CABLE

CABLE W/BOLT, 356062R91, Serial Range: battery-ground

1шт.

356062R91

BOLT

BOLT ASSY, terminal

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on generator front mounting bolt

1шт.

16

1119575

REGULATOR

REGULATOR ASSY, voltage

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

SCREW, 1/4-20 x 5/16 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

358112R92

CABLE

CABLE, generator, A terminal to regulator, gen terminal, brown

1шт.

18

358116R92

SPARE PART CABLE, generator, F terminal to regulator, F terminal, black

1шт.

19

NSS

NOT SOLD SEPARAT

GENERATOR ASSY, refer to generator and connections

1шт.

20

362126R1

CLIP

CLIP, cable harness, on generator bracket rear bolt

1шт.

21

350742R1

SPARE PART CLIP, cable harness, on clutch housing bolt

1шт.

22

363483R91

HARNESS

HARNESS ASSY, cable

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, on lower rear ligh bracket bolt

1шт.

24

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on crankcase front cover bolt

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on generator brace bolt

1шт.

26

363484R1

SPARE PART CLAMP, head light cable, on light post

3шт.

110633

NUT,#10-24

NUT, #10-24

3шт.

110501

SCREW

SCREW, 10-24 x 5/8 slt-rd-hd mach

3шт.

27

371464R91

SWITCH

SWITCH ASSY, lighting

1шт.

28

62801DC

SWITCH

SWITCH ASSY, battery ignition

1шт.

29

378424R91

GAUGE

INDICATOR ASSY, charge, replaces 360053R92

1шт.

30

354232R91

BOX

HOUSING W/KNOB, 356445R91, fuse

1шт.

432644

FUSE,20 Amp, Type SFE

FUSE, cartridge type SFE 20

1шт.

31

NSS

NOT SOLD SEPARAT

LIGHT ASSY, rear, refer to head lights, rear lights and supports

1шт.

32

NSS

NOT SOLD SEPARAT

CABLE, charge indicator to cranking motor, brown, order harness, 358109R92

1шт.

33

NSS

NOT SOLD SEPARAT

CABLE, ignition switch to coil, black, order harness, 358109R92

1шт.

34

NSS

NOT SOLD SEPARAT

CABLE, lighting switch to head light, black, order harness, 363483R91

1шт.

35

NSS

NOT SOLD SEPARAT

CABLE, regulator, bat terminal to charge indicator, gray, order harness, 363483R91

1шт.

36

NSS

NOT SOLD SEPARAT

CABLE, ignition switch to regulator, L terminal, light green, order harness, 363483R91

1шт.

37

NSS

NOT SOLD SEPARAT

CABLE, fuse housing to lighting switch, order fuse housing, 354232R91

1шт.

38

NSS

NOT SOLD SEPARAT

CABLE, fuse housing to ignition switch, order fuse housing, 354232R91

1шт.

39

363481R1

SPARE PART CLIP, cable harness, on battery box bolt

1шт.

40

NSS

NOT SOLD SEPARAT

CABLE, head light to ground, pink, order harness, 363483R91

1шт.

41

NSS

NOT SOLD SEPARAT

CABLE, rear light to ground, pink, order harness, 363476R91

1шт.

42

NSS

NOT SOLD SEPARAT

CABLE, lighting to rear, black, order harness, 363476R91

1шт.

43

NSS

NOT SOLD SEPARAT

CABLE, head light, black, order harness, 363483R91

1шт.
