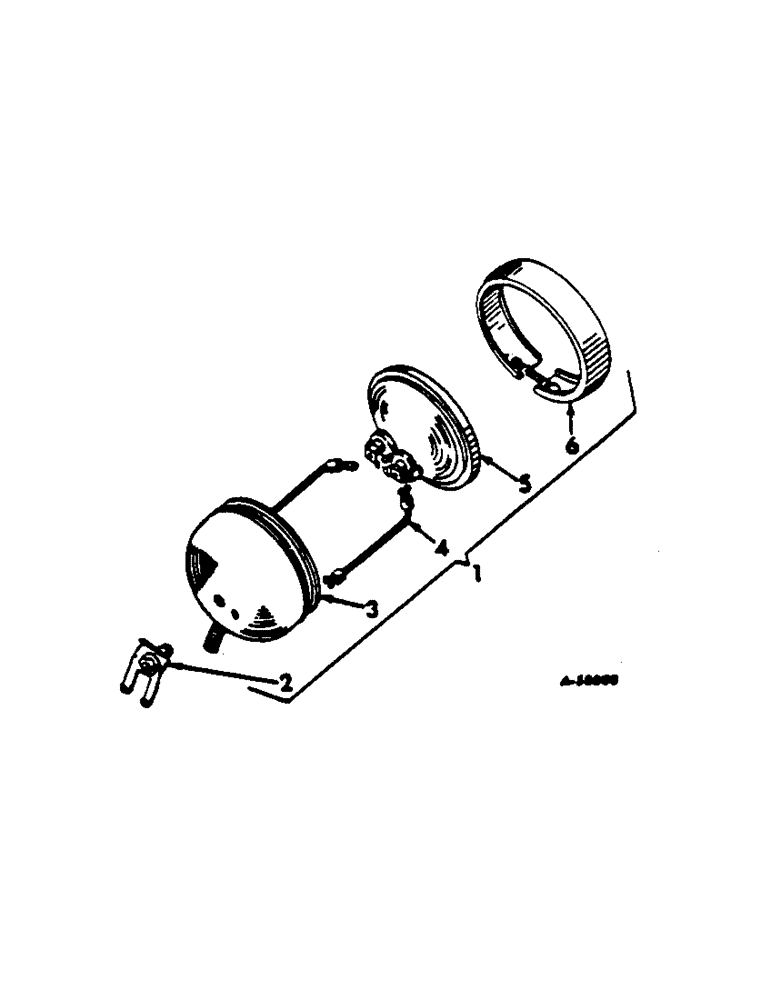

Запчасти Case IH 100 (08-16) - ELECTRICAL, HEAD LIGHTS OR REAR LIGHT, FOR 100 AND 130 SERIES TRACTORS (06) - ELECTRICAL

1

373572R91

LAMP

LIGHT ASSY, head or rear, 6 volt, sealed beam, order light assy, 381181R91, cable, 381182R91 and spacer, 365503R1

1шт.

2

68417D

INSULATOR

PACKAGE, terminal plate assy

1шт.

3

NSS

NOT SOLD SEPARAT

BODY, light, not serviced separately, order light assy, 381181R91, cable, 381182R91 and spacer, 365503R1

1шт.

4

373311R91

WIRE, connector to sealed beam unit

1шт.

5

373661R91

LAMP BASE

UNIT, sealed beam

1шт.

6

371450R91

BEZEL

MOLDING ASSY

1шт.

364697R1

NUT, clamp screw molding

1шт.

132489

SCREW, 8-32 x 1-1/4 ni-bright brass stl-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

375376R1

RING

GASKET, sealed beam unit, used only if unit is loose in light body

1шт.

370734R91

LAMP

LIGHT ASSY, head or rear, 6 volt, order light assy, 381181R91 and cable, 38182R91

3шт.
