Запчасти Case IH 100 (13-6) - SUPERSTRUCTURE, FENDERS AND CONNECTIONS (05) - SUPERSTRUCTURE

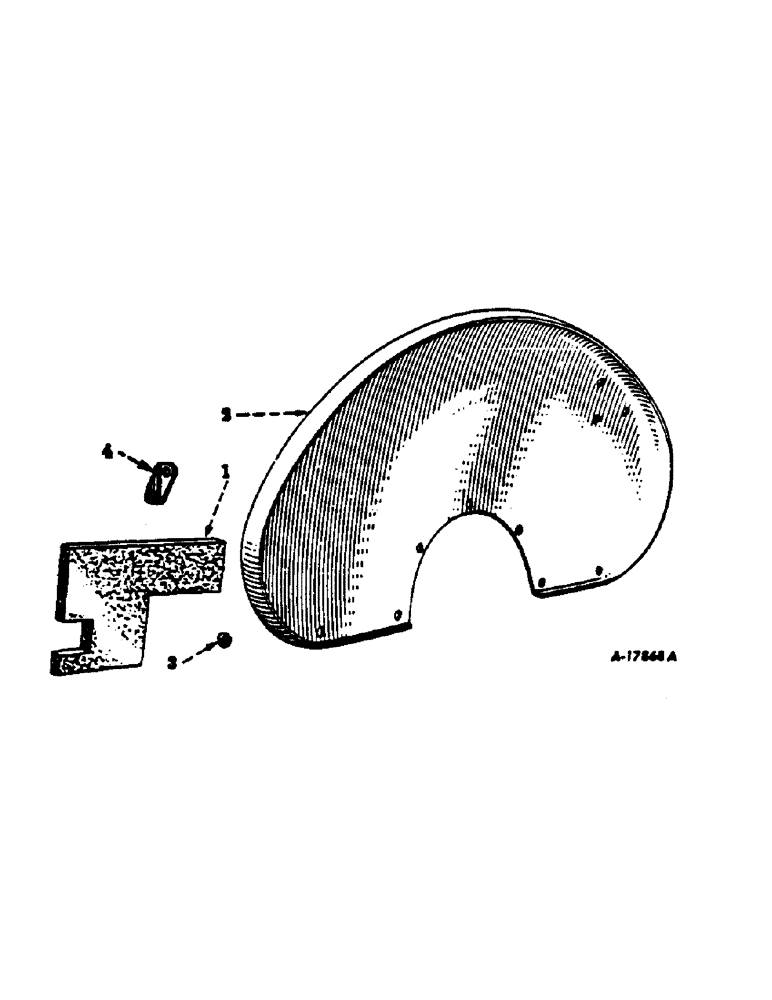

Схема запчастей Case IH 100 - (13-6) - SUPERSTRUCTURE, FENDERS AND CONNECTIONS (05) - SUPERSTRUCTURE
4
1

Артикул

Название

Примечание

Количество

1

55788DA

PAD, fender to transmission case felt, used on left fender only

1шт.

2

350608R2

FENDER

LH rear

1шт.

102635

NUT,3/8"-16, G5

Not used on tractors equipped with power take- off 3/8"-16, G5

1шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

3/8-16 x 9/16 hex-hd cap

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , 100 series med lock, 100 series tractors w/ S/N 12876 and below 3/8"

6шт.

20285H

WASHER

13/32 x 3/4 x 11 ga, 100 series tractors w/serial no. 12877 and above, all 130 and 140 series tractors

6шт.

2

350609R2

FENDER, RH rear

1шт.

103026

NUT,3/8"-24, G5

7шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex, jam

1шт.

181371

BOLT

SCREW, 3/8-24 x 1-3/8 hex-hd cap

5шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

181425

BOLT,Hex, 1/2" - 20 x 3/4"

SCREW, 1/2-20 x 3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20285H

WASHER

13/32 x 3/4 x 11 ga, 100 series tractors w/serial no. 12877 and above, all 130 and 140 series tractors

7шт.

3

24523D

WASHER

SPACER, RH fender

1шт.

4

43514D

CLIP, LH fender support, not used on tractors equipped with mower take-off

1шт.

Выбрано товаров: 19
