Запчасти Case IH 100 (13-2) - SUPERSTRUCTURE, RADIATOR GRILLE AND HOOD, FOR 100 AND 130 SERIES TRACTORS (05) - SUPERSTRUCTURE

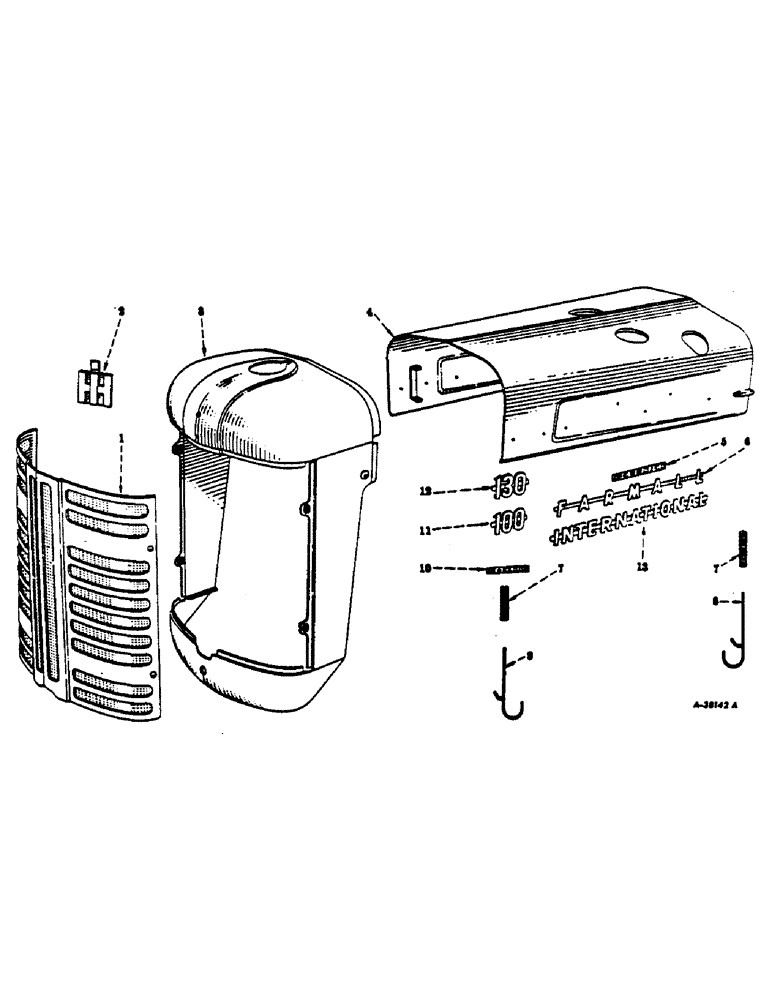

Схема запчастей Case IH 100 - (13-2) - SUPERSTRUCTURE, RADIATOR GRILLE AND HOOD, FOR 100 AND 130 SERIES TRACTORS (05) - SUPERSTRUCTURE
4
7
1
10
11

Артикул

Название

Примечание

Количество

1

362592R11

GRILLE

GRILL ASSY, radiator

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW W/WASHER, radiator grill

4шт.

2

362513R1

EMBLEM, IH hood

1шт.

363284R2

CLIP

FASTENER, tubular clip

2шт.

3

362584R91

SUPPORT W/FOUR NUTS, 362594R91, radiator grill

1шт.

362594R91

NUT

radiator grill fastener screw speed grip

4шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, radiator grill support fastener

3шт.

4

362503R22

HOOD W/SHIELD AND BRACKETS ASSY, Farmall 100 and 130 tractors, gasoline

1шт.

4

362504R22

HOOD W/SHILED AND BRACKETS ASSY, Farmall 100 and 130 hi-clear tractors, gasoline

1шт.

4

362505R22

HOOD W/SHIELD AND BRACKETS ASSY, International 100 and 130 tractors, gasoline

1шт.

4

NSS

NOT SOLD SEPARAT

HOOD W/SHIELD AND BRACKETS ASSY, distillate or kerosene, discontinued for service

1шт.

5

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, McCormick name plate, order package, 389507R91

2шт.

363784R1

FASTENER

tubular clip

4шт.

6

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, Farmall name plate, order package, 389507R91

2шт.

363784R1

FASTENER

tubular clip

10шт.

7

48707DA

SPRING

hood clamp

4шт.

8

363668R91

CLAMP

ASSY, LH rear hood

1шт.

8

363669R91

CLAMP

ASSY, RH rear hood

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

9

58146D

CLAMP

ASSY, LH front hood

1шт.

9

58147D

CLAMP

ASSY, RH front hood

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

10

363129R1

PRODUCT GRAPHIC, hi-clear name plate

2шт.

363784R1

FASTENER

tubular clip

4шт.

11

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, 100 tractor model designation plate, order package, 389507R91

2шт.

363784R1

FASTENER

tubular clip

4шт.

12

366721R1

PRODUCT GRAPHIC, 130 tractors model designation plate

2шт.

363784R1

FASTENER

tubular clip

4шт.

13

362388R2

PRODUCT GRAPHIC, International name plate

2шт.

363784R1

FASTENER

tubular clip

10шт.

Выбрано товаров: 30
