Запчасти Case IH 100 (05-2) - STEERING, STEERING MECHANISM (04) - STEERING

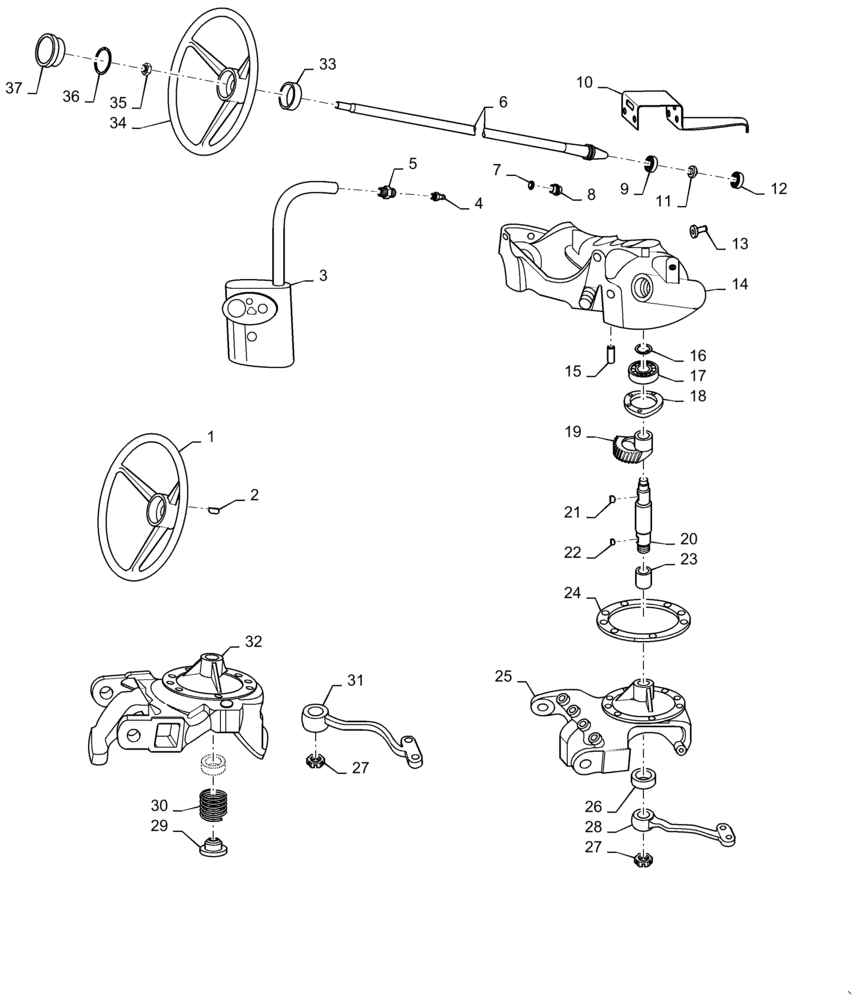

Схема запчастей Case IH 100 - (05-2) - STEERING, STEERING MECHANISM (04) - STEERING
6
32
22
12
9
8
2
37
1
4
19
7
3
28
5
11
34
15
14
27
27
29
23
36
21
13
16
20
33
10
25
35
26
18
30
24
31
17

Артикул

Название

Примечание

Количество

1

60070D

STEERING WHEEL

WHEEL, 17-3/4 in. steering, 100 and 130 series tractors

1шт.

2

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 Woodruff A aly-stl, 100 and 130 series tractors

1шт.

3

355458R93

SUPPORT, steering shaft and instrument panel, 6 volt, 100 and 130 series tractors, 140 series tractors w/serial no. 26800 and below

1шт.

3

387464R91

SUPPORT, steering shaft and instrument panel, 12 volt, 140 series tractors w/serial no. 26801 and above

1шт.

432466

BEVEL PINION

PLUG, 17/32 chrome bright button, for fuse housing w/o lighting

1шт.

432600

PLUG, 23/32 chrome bright button, for lighting hose w/o lighting

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

9442DAX

BRACKET

W/FITTING, 109461, steering shaft support

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

351820R92

SHAFT

W/WORM, steering, 100 and 130 series tractors

1шт.

6

369404R11

SHAFT

W/WORM, steering, 140 series tractors

1шт.

6

381403R91

SHAFT

W/WORM, steering, 140 series tractors w/fast steering

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex, jam

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

7

382229R91

OIL SEAL

OIL SEAL, steering worm shaft

1шт.

8

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

steering worm

1шт.

9

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING, steering worm ball

1шт.

10

362600R11

BRACKET, starting crank, 100 and 130 series tractors

1шт.

10

368346R11

BRACKET, radiator grille bottom support, 140 series tractors

1шт.

271505

BODY

7/16-20 hex

2шт.

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

7/16-20 x 3-1/2 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

69442D

NUT

steering worm

1шт.

12

6660DA

BEARING CAP

steering worm bearing

1шт.

13

356569R1

PLUG

steering gear housing vent and filler

1шт.

14

6532DFX

HOUSING ASSY, steering gear, composed of (1) bushing 41096DBR (1) housing 6532DF (NSS) (2) pin 25086DA (1) plug 356569R1 (1) plug 444571 (1) plug 444576 (1) seal 382229R91

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto. sq-hd pipe, oil level plug

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket, drain plug

1шт.

425-1110

NUT,5/8"-18, G5

3шт.

361858R1

CAPSCREW,5/8" - 11 x 2 1/2"

SCREW, steering gear housing cap, 2-1/2 in. long

1шт.

362015R1

SCREW, steering gear housing cap, 2-3/4 in. long

2шт.

362017R1

SCREW, steering gear housing cap, 3-1/2 in. long

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

25086DA

STUD

PIN, steering gear housing dowel

2шт.

16

47679D

RING, SNAP

RING, steering worm wheel shaft snap

1шт.

17

ST288

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

BEARING, steering worm wheel shaft ball

1шт.

18

43500D

RETAINER

steering worm wheel shaft brg

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

70889C1

GEAR WHEEL

GEAR, steering worm, 28 teeth, replaces 368676R1 by also ordering key 114745 and shaft 70890C1, 100 and 130 series tractors, 140 series tractors w/fast steering

1шт.

70889C1 WORM GEAR HAS 10 TEETH

1шт.

19

70888C1

GEAR

steering worm, 22 teeth, replaces 351815R1 by also ordering key 114745 and shaft 70890C1, 140 series tractors

1шт.

70888C1 WORK GEAR HAS 8 TEETH

1шт.

21745R1

SNAP RING,#118, Ext

RING, Snap, , worm gear #118, Ext

1шт.

20

70890C1

SHAFT

steering worm wheel, replaces 356549R2 by also ordering key 114745 and gear 70888C1 w/o fast steering or gear 70889C1 w/fast steering

1шт.

21

117989

WOODRUFF KEY,#19, 3/16" x 1 1/4", HT

Used w/shaft 356549R2 #19, 3/16" x 1 1/4", HT

1шт.

21

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

Used w/shaft 70890C1 #21, 1/4" x 1 1/4", HT

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

23

47676DR

BUSHING,30.14mm ID x 33.34mm OD x 42.86mm L

steering worm wheel shaft

1шт.

24

47675D

GASKET

steering gear housing

1шт.

25

6530DDX

BASE

W/BUSHING, 47676DR, + oil seal 382230R91, steering gear housing, for all tractors, except hi-clear models, and those not equipped with heavy duty adjustable front axle

1шт.

271505

BODY

7/16-20 hex

2шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

SCREW, 7/16-20 x 2-1/4 hex-hd cap

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

6шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

26

382230R91

OIL SEAL

OIL SEAL, steering worm wheel shaft

1шт.

27

359040R1

NUT

steering worm wheel shaft

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

28

356550R2

ARM

steering gear, for all tractors except hi-clear models not equipped with heavy duty adjustable front axle

1шт.

29

60399DA

RETAINER, front axle stop spring, for hi-clear tractors, also all tractors except hi-clear models equipped with heavy duty adjustable front axle

2шт.

117311

SCREW, 3/8-16 x 1-3/4 slt-fil-hd

1шт.

30

58574D

SPRING, front axle stop, for hi-clear tractors, also all tractors except hi-clear models equipped with heavy duty adjustable front axle

2шт.

91955H

SPACER, front axle stop spring, for hi-clear tractors, also all tractors except hi-clear models equipped with heavy duty adjustable front axle

2шт.

31

356551R3

ARM

steering gear, for hi-clear tractors, also all tractors except hi-clear models equipped with heavy duty adjustable front axle

1шт.

32

9061DAX

BASE W/BUSHING, 47676DR, + oil seal 382230R91, steering gear housing, for hi-clear tractors, also all tractors except hi-clear models equipped with heavy duty adjustable front axle

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

33

369405R1

CUP

CUP, steering shaft, 140 series tractors

1шт.

34

366557R2

STEERING WHEEL

WHEEL, 18 in. steering, 140 series tractors

1шт.

35

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel, 140 series tractors

1шт.

36

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap retainer, 140 series tractors

1шт.

37

68837C1

CAP

ASSY, steering wheel, replaces 366558R1, 140 series tractors

1шт.

356552R94

PACKAGE

steering gear arm and shaft, tractors with out fast steering, consists of (1) shaft 70890C1 (1) pin 103388 (1) key 124553 (1) key 114745 (1) nut 359040R1 (1) arm 356554R1 (1) gear 70888C1 (1) ring 370504R1

1шт.

356553R94

PACKAGE, steering gear arm and shaft, tractors with fast steering, consists of (1) shaft 70890C1 (1) pin 103388 (1) key 124533 (1) key 114745 (1) nut 359040R1 (1) arm 356555R1 (1) gear 70889C1 (1) ring 370504R1

1шт.

Выбрано товаров: 79
