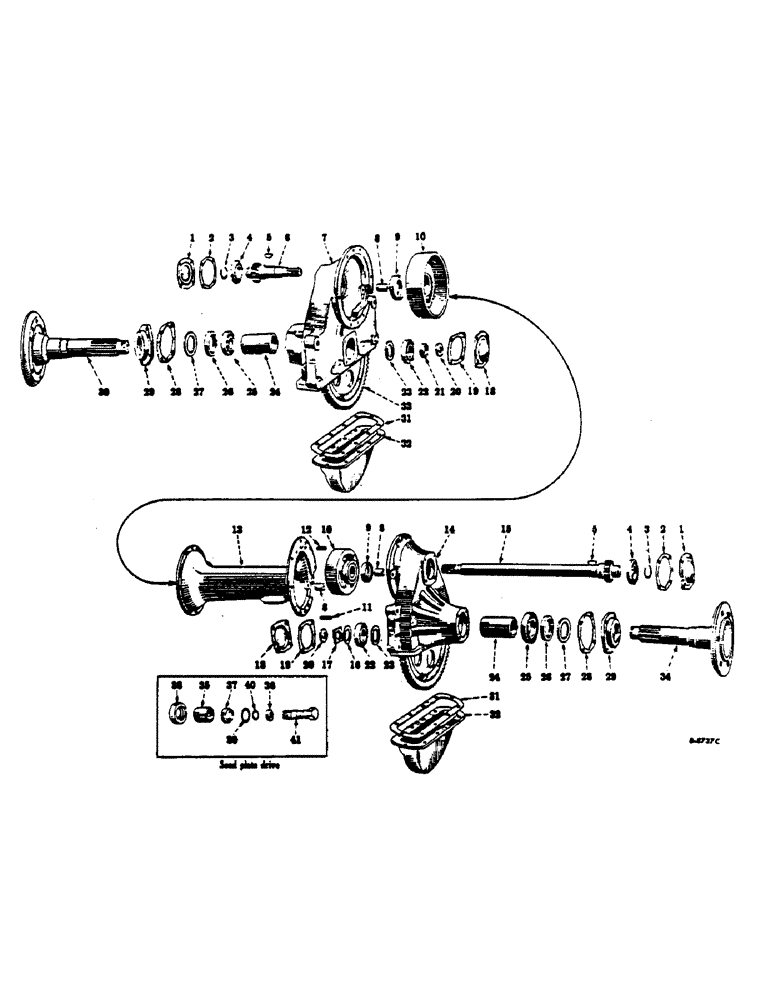

Запчасти Case IH 100 (07-12) - DRIVE TRAIN, FINAL DRIVE (04) - Drive Train

1

48010D

COVER

differential shaft bearing

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

366838R1

GASKET

differential shaft bearing cover, replaces 48009DB

2шт.

3

359141R1

RING, SNAP

RING, differential shaft bearing snap

2шт.

4

ST249

BALL BEARING,35mm ID x 80mm OD x 21mm W

BEARING, differential shaft ball

2шт.

5

117993

WOODRUFF KEY,#22, 1/4" x 1 3/8", HT

KEY, 1/4 x 1-3/8 woodruff no. 22, ni-slt

2шт.

6

362769R1

SHAFT

LH differential, 13 teeth

1шт.

7

362771R11

HOUSING ASSY, reat axle LH, for service replacement also order drawbar mounting bolts, 373339R1, if not so equipped, composed of (1) bushing 358658R1, (1) housing 362771R1 (NSS), (1) oil seal 386455R91, (1) plug 444679

1шт.

444679

PLUG

1, 11-1/2 C-Z aut, sq-soc pipe

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, 7/16-14 x 1-3/8 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 1-1/2 hex-hd cap

2шт.

8

358658R1

BUSHING

toggle pivot pin

3шт.

9

288864R93

OIL SEAL

differential shaft pinion oil, replaces 51494DA, 100 and 130 series tractors

2шт.

9

386455R91

OIL SEAL

differential shaft pinion oil, 140 series tractors

2шт.

10

6401DBX

HUB

DRUM ASSY, brake

2шт.

102635

NUT,3/8"-16, G5

2шт.

102897

SET SCREW,Sq Hd, 3/8"-16 x 1 1/4"

Sq Hd, 3/8"-16 x 1 1/4" (Cup Pt)

2шт.

11

362753R1

PIN

differential shaft housing dowel long

1шт.

12

362754R1

PIN

differential shaft housing dowel short

1шт.

13

362768R11

HOUSING ASSY, differential shaft, composed of (1) bushing 358658R1, (1) housing 362768R1 (NSS), (1) pin 362753R1, (1) pin 362754R1

1шт.

362441R1

SCREW,Hex, 7/16"-14 x 1 1/2", G8

differential shaft housing cap

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

14

362772R11

HOUSING ASSY, rear axle RH, for service replacement, also order drawbar mounting bolts 373339R1, if not so equipped, composed of (1) bushing 358658R1, (1) housing 362772R1 (NSS), (1) oil seal 386455R91, (1) plug 444679

1шт.

444679

PLUG

1, 11-1/2 C-Z auto, sq-soc pipe

1шт.

362442R1

BOLT,Hex, 7/16" - 20 x 2", Gr 8

SCREW, 7/16-20 x 2 hex-hd cap

6шт.

456939

NUT,7/16"-20, G8

7/16-20 hex

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

15

362770R1

SHAFT, RH differential, 13 teeth

1шт.

16

47907D

WASHER

rear axle inner bearing spacer RH

1шт.

17

47906DX

WASHER

SPACER ASSY, rear axle inner bearing RH

1шт.

18

47946D

CAP

rear axle inner bearing, not used on tractors equipped with seed plate drive

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

19

47954D

GASKET

rear axle inner bearing cap

2шт.

20

43240D

WASHER

rear axle retainer, 1 used on tractors equipped with seed plate drive

2шт.

21

47905D

SPACER

rear axle shaft bearing LH, not used on tractors equipped with seed plate drive

1шт.

23

ST204A

BALL BEARING,35mm ID x 71.99mm OD x 17mm W

BEARING, rear axle inner ball

2шт.

23

49313DA

WASHER,35.32mm ID x 57.15mm OD x 3.97mm Thk

rear axle inner bearing

2шт.

24

49903D

SPACER

rear axle bearing

2шт.

25

ST279A

BALL BEARING,55mm ID x 100mm OD x 21mm W

BEARING, rear axle outer ball

2шт.

26

536144R91

OIL SEAL

rear axle bearing retainer oil, replaces 362767R91 and 536144R91

2шт.

27

362777R1

WASHER

rear axle bearing retainer felt, order seal 536144R91

2шт.

28

362778R1

GASKET

rear axle bearing retainer

2шт.

29

362776R11

HUB

RETAINER W/OIL SEAL, 536144R91, rear axle bearing

2шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

30

362773R1

AXLE, LH rear, for all tractors except hi-clear models

1шт.

30

362775R1

AXLE, LH rear, for hi-clear tractors

1шт.

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

SCREW, 5/8-18 x 1-1/4 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

31

43245D

GASKET

rear axle housing pan

2шт.

32

43244D

PAN

rear axle housing

2шт.

368485R91

SCREW W/INT TOOTH LOCK WASHER, 5/16-18 x 1/2 hex-hd cap

20шт.

33

366335R1

GEAR

rear axle drive, 76 teeth, will work for 351808R93 and 357480R93

2шт.

104268

RIVET, 5/16 x 1-1/8 fl-hd, used only with gear having riveted hub

12шт.

34

362774R1

AXLE, RH rear, for all tractors except hi-clear models

1шт.

34

362775R1

AXLE, RH rear, for hi-clear tractors

1шт.

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

SCREW, 5/8-18 x 1-1/4 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

35

350020R1

BUSHING,35.03mm ID x 46.02mm OD x 50.8mm L

SHAFT, seed plate drive

1шт.

36

350021R1

WASHER

seed plate drive shaft

1шт.

37

384808R2

BUSHING

RETAINER, seed plate drive sealing ring

1шт.

38

384807R91

SEAL

seed plate drive oil, will work for retainer, 350177R91, w/oil, 273563R91

1шт.

39

384810R1

RING

seed plate drive cutter sealing

1шт.

40

21233R1

O-RING, 5/8 x 13/16 x 3/32, seed plate drive inner

1шт.

COULD USE 238-6114 PER STDS CATALOG

1шт.

41

384811R1

BOLT,Spcl, Shoulder, Hex, 5/8" - 18 x 1.50", Gr 2

LH rear axle

1шт.

384806R91

DRIVE

PARTS ACCESSORY, seed plate drive, composed of (1) bolt 384811R1, (1) oil seal 384807R91, (1) o-ring 21233R1, (1) retainer 384808R2, (1) ring 384810R1, (1) shaft 350020R1, (1) washer 350021R1

1шт.
