Запчасти Case IH 100 (07-10) - DRIVE TRAIN, GEAR SHIFTER MECHANISM AND TRANSMISSION (04) - Drive Train

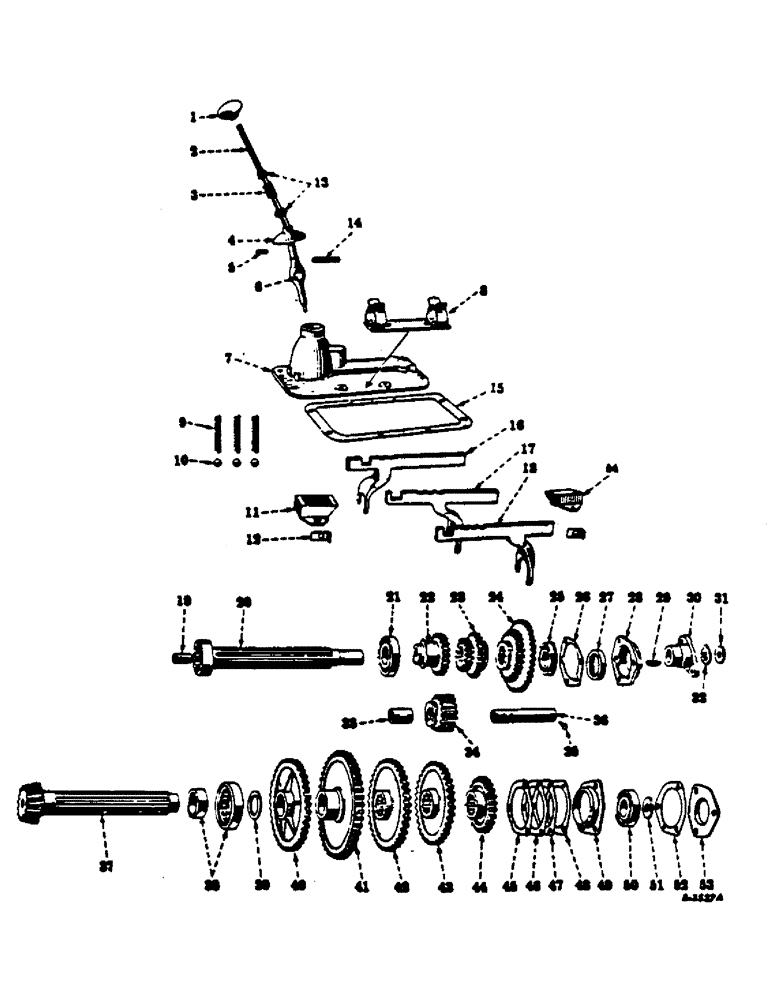

Схема запчастей Case IH 100 - (07-10) - DRIVE TRAIN, GEAR SHIFTER MECHANISM AND TRANSMISSION (04) - Drive Train
16
35
40
5
2
53
13
47
15
36
54
31
9
33
44
6
51
39
30
43
4
14
18
23
20
38
1
10
52
25
22
29
7
11
49
34
45
26
17
28
21
48
12
32
46
41
3
50
19
8
24
42
37
27

Артикул

Название

Примечание

Количество

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

369042R11

LEVER

ASSY, gear shift

1шт.

3

43578D

SPRING

gear shift swivel

1шт.

4

49489D

SHIELD

gear shift swivel

1шт.

5

43580D

PIN

gear shift swivel spring retainer

1шт.

6

49488D

PIN

SHAFT, gear shift swivel, large

1шт.

7

6832DAX

COVER W/PLUG, 444679, transmission case

1шт.

444679

PLUG

1, 11-1/2 C-Z auto, sq-soc pipe

1шт.

NLS

NO LONGER SERVICED

6шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

350639R91

BRACKET

ASSY, starting crank mounting, for tractors equipped with starting and lighting system, special for all others

1шт.

9

41058DA

SPRING

gear shift poppet ball

3шт.

10

16016R1

BALL

1/2 diameter chrome stl, gear shifter poppet

3шт.

11

47289DB

GUIDE

ASSY, gear shift rail rear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

48567D

SUPPORT

LOCK, gear shift rail guide support cap screw

4шт.

13

43579D

RETAINER

gear shift swivel spring

2шт.

14

49492D

AXLE PIN

SHAFT, gear shift swivel, small

1шт.

15

47279DA

GASKET

transmission case cover

1шт.

16

51178DBX

FORK

RAIL ASSY, reverse speed gear shifter

1шт.

17

48833DBX

FORK

RAIL ASSY, first and second speed gear shifter

1шт.

18

48834DBX

FORK

RAIL ASSY, third and fourth speed gear shifter

1шт.

19

351144R1

BUSHING

transmission spline shaft

1шт.

20

351143R21

SHAFT

W/BUSHING 351144R1, transmission spline, 10 teeth

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, 7/16-20 x 1 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, spline shaft rear ball

1шт.

22

351063R21

GEAR

ASSY, reverse spline, 20 teeth, includes rivet, 105088, 100 and 130 series tractors

1шт.

22

369023R21

GEAR

ASSY, reverse spline, 22 teeth, 140 series tractors

1шт.

105088

RIVET,But Hd, 3/16" x 2 1/4"

3/16 x 2-1/4 rd-hd, used with shaft 351143R11

1шт.

376909R1

SNAP RING,#137, 1.291", Ext

RING, reverse spline gear snap, used with shaft, 351143R21

1шт.

23

351064R1

GEAR

first and reverse speed sliding, 16 and 22 teeth, order 364442R1 and 364443R1, 100 series tractors w/serial no. 14865 and below

1шт.

23

364443R1

GEAR, first and reverse speed sliding, 16 and 22 teeth, 100 series tractors w/serial no. 14866 and aboe, all 130 series tractors

1шт.

23

369024R1

GEAR

first and reverse speed sliding, 14 and 22 teeth

1шт.

24

351065R1

PINION

GEAR, third and fourth speed sliding, 26 and 37 teeth, 100 and 130 series tractors, 140 series tractors with optional fourth gear

1шт.

Per print 351065r1 has 26 & 37 teeth, and 369025R1 has 26 and 53

1шт.

24

369025R1

GEAR

third and fourth speed sliding, 26 and 37 teeth, 140 series tractors

1шт.

Per print 351065r1 has 26 & 37 teeth, and 369025R1 has 26 and 53

1шт.

25

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, spline shaft front ball

1шт.

26

46503D

GASKET,0.79mm Thk

transmission spline shaft bearing retainer

1шт.

27

381907R91

OIL SEAL,39.24mm ID x 62mm OD x 8mm Thk

transmission spline shaft oil

1шт.

28

369026R11

HUB

RETAINER W/OIL SEAL, 381907R91, transmission spline shaft, will work for 6425 DX and 36000R11

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

29

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, 3/16 x 2-1/8 woodruff no. 126, transmission drive flange

1шт.

30

43548D

CLAMP

FLANGE, transmission drive

1шт.

31

43262DA

WASHER

transmission drive flange

1шт.

32

359992R1

GASKET

transmission drive flange

1шт.

33

51177DR

BEARING

BUSHING, reverse idler gear

1шт.

34

364490R12

GEAR W/BUSHING, 51177DR, reverse idler, 16 teeth, 100 and 130 series tractors

1шт.

34

369027R11

GEAR

W/BUSHING, 51177DR, reverse idler, 14 teeth, 140 series tractors

1шт.

35

61082D

SCREW, reverse idler shaft lock

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

36

351816R1

SHAFT

reverse idler

1шт.

37

49298D

SHAFT

PINION, countershaft and bevel, 13 teeth

1шт.

181397

BOLT,Hex, 7/16" - 20 x 1 1/4", Gr 5

SCREW, 7/16-20 x 1-1/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

38

49339D

BEARING ASSY,35mm ID x 72mm OD x 16.77mm W

countershaft roller

1шт.

39

58338D

WASHER

SPACER, first speed gear

1шт.

40

354643R11

PINION

GEAR ASSY, transmission oiler, 100 and 130 series tractors

1шт.

40

369020R11

GEAR

ASSY, transmission oiler, 140 series tractors

1шт.

41

351059R1

GEAR, first speed, 45 teeth, order 364442R1 and 364443R1, 100 series tractors w/serial no. 14865 and below

1шт.

41

364442R1

GEAR, first speed, 45 teeth, 100 series tractors w/serial no. 14866 and above, all 130 series tractors

1шт.

41

369021R1

GEAR

first speed, 47 teeth, 140 series tractors

1шт.

42

351060R1

GEAR

second speed, 39 teeth

1шт.

43

351061R1

PINION

GEAR, third speed, 35 teeth

1шт.

44

351062R1

PINION

GEAR, fourth speed, 24 teeth, 100 and 130 series tractors 140 series tractors with optional fourth gear

1шт.

44

369022R1

GEAR

fourth speed, 27 teeth, 140 series tractors

1шт.

45

47284D

SHIM

countershaft bearing cage, light, .007

2шт.

46

47285D

SHIM

countershaft bearing cage medium, .015

1шт.

47

47286D

SHIM

countershaft bearing cage heavy, .030

1шт.

48

50493D

SHIM

countershaft bearing cage, fine, .004

1шт.

49

47281DA

CAGE

countershaft bearing, also order gasket, 47283DA, for service relpacement of 47281D

1шт.

372020R1

RING

countershaft bearing cage seal

1шт.

50

ST213T

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, countershaft ball

1шт.

51

43262DA

WASHER

countershaft

1шт.

52

47283DA

GASKET

countershaft bearing cage

1шт.

53

47282DA

COVER

RETAINER, countershaft bearing cage

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

54

357538R91

GUIDE

ASSY, gear shifter rail front

1шт.

369411R1

SCREW

front rail guide support cap

2шт.

Выбрано товаров: 83
