Запчасти Case IH 100 (07-08) - DRIVE TRAIN, TRANSMISSION CASE AND DIFFERENTIAL (04) - Drive Train

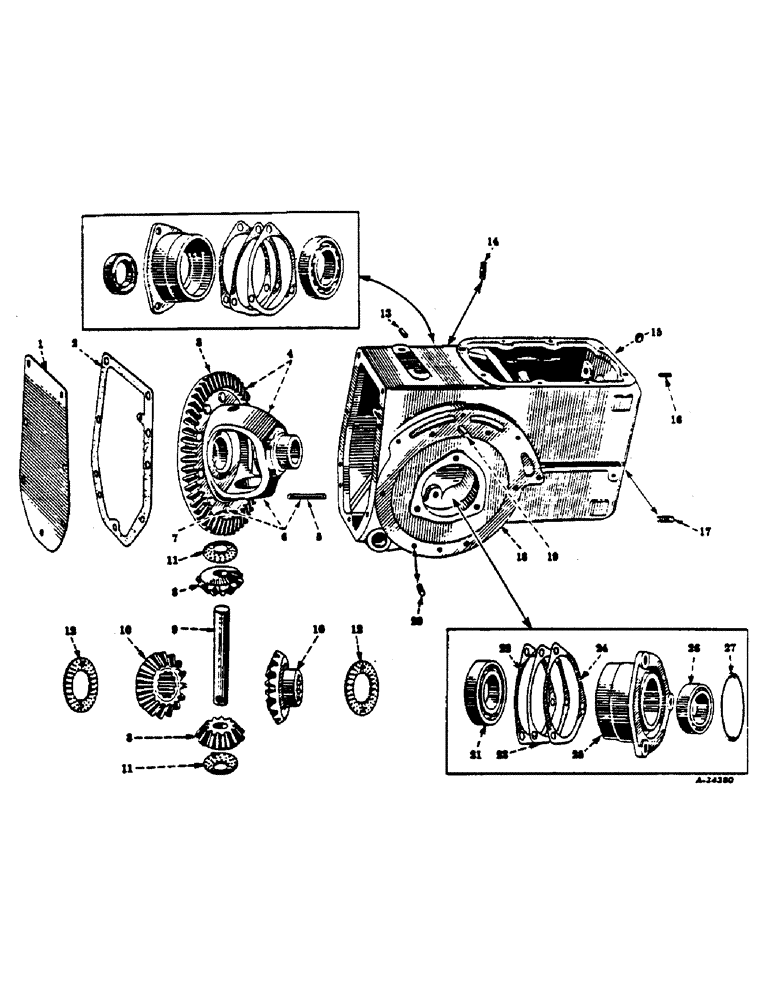

Схема запчастей Case IH 100 - (07-08) - DRIVE TRAIN, TRANSMISSION CASE AND DIFFERENTIAL (04) - Drive Train
19
22
13
3
17
5
8
22
9
21
25
1
4
6
24
12
16
8
26
11
15
10
10
11
27
12
18
14
7
2
20

Артикул

Название

Примечание

Количество

1

46060D

PLATE, transmission case gear cover, not used on tractors equipped with power take-off

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap, five used on tractors equipped with remote control

7шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , 5 used on tractors equipped with remote control 7/16"

7шт.

2

60589DA

GASKET

transmission case rear cover plate

1шт.

3

46371DX

GEAR

W/TEN RIVETS, 53972VA differential drive, 54 teeth

1шт.

4

46385DC

CASE ASSY, differential

1шт.

5

95022H

AXLE PIN

PIN, differential pion shaft lock

1шт.

6

6579ODX

CASE ASSY, differential, composed of (1) case 679OD, (1) pin 95002H, (10) rivet 53972VA, (2) washer 109870R1, (2) washer 109871R1

1шт.

7

53972VA

RIVET

differential drive gear

10шт.

8

50817R2

GEAR

PINION, differential, 10 teeth

2шт.

9

1094Y

SHAFT

differential pinion

1шт.

10

50818R2

GEAR

diferential side, 16 teeth

2шт.

11

109871R1

WASHER

differential pinion thrust

2шт.

12

109870R1

THRUST WASHER

differential side gear thrust

2шт.

13

358658R1

BUSHING

toggle pivot pin

1шт.

14

355790R1

STUD

rear axle housing mounting

6шт.

456939

NUT,7/16"-20, G8

7/16-20 type 8 hex

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

15

172558

PLUG,Exp, 1 1/4"

1-1/4 expansion

1шт.

16

357232R1

PIN

transmission case to clutch housing dowel

2шт.

17

7210T

STUD, transmission countershaft bearing cage

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

369410R11

CASE ASSY, transmission, composed of 1 bushing 358658R1, 1 case 369410R1 (NSS), 2 cork 104940, 2 pin 357232R1, 3 pin 362754R1, 1 pin 362753R1, 1 plug 172558, 1 plug 444660, 1 plug 444679, 1 screw 61082D, 1 stud 7210D, 6 stud 355790R1, 1 washer 103320

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 aut. sq-soc pipe

1шт.

444679

PLUG

1, 11-1/2 C-Z auto. sq-soc pipe

1шт.

19

362754R1

PIN

rear axle and differential housing dowel, short

3шт.

20

362753R1

PIN

rear axle and differential housing dowel, long

1шт.

21

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, differential ball

2шт.

22

50492D

SHIM

differential ball bearing retainer, fine, .004 (or as required)

3шт.

22

46062D

SHIM

differental ball bearing retainer, light, .007 (or as required)

4шт.

23

46063D

SHIM

differential ball bearing retainer, medium, .015 (or as required)

2шт.

24

46064D

SHIM

differentail ball bearing retainer, heavy, .030 (or as required)

2шт.

25

6578DB

RETAINER, differential ball bearing

2шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

26

71597C91

OIL SEAL,37.54mm ID x 60.4mm OD x 12.7mm Thk

differential ball bearing, retainer oil replaces 46282D, 100 and 130 series tractors

2шт.

26

385865R91

OIL SEAL

differential ball bearing retainer oil, 140 series tractors

2шт.

27

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8, differential bearing retainer

2шт.

Выбрано товаров: 39
