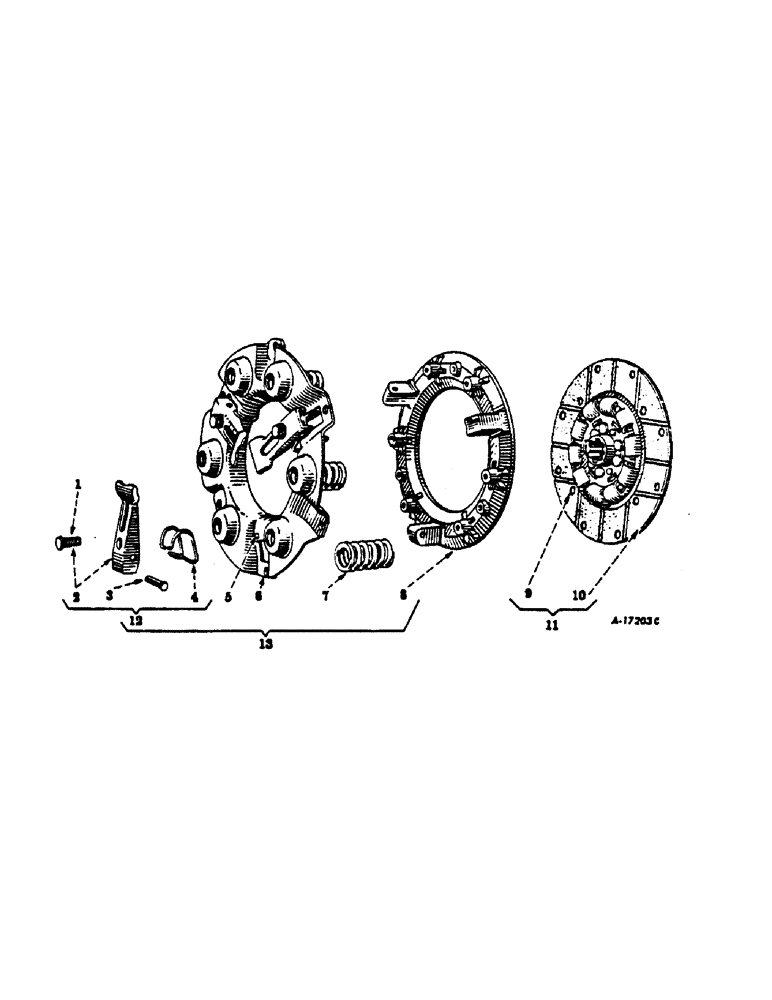

Запчасти Case IH 100 (07-04) - DRIVE TRAIN, CLUTCH, ROCKFORD, 9 INCHES (04) - Drive Train

1

352745R1

BOLT,3/8" - 24 x 3/4", Class 2

SCREW, clutch lever adjusting

3шт.

114494

NUT,Jam, 3/8"-24, G5

NUT, Jam, 3/8"-24, G5

3шт.

2

351449R91

LEVER

LEVER W/SCREW, 352745R1, and nut, 114494, clutch

3шт.

3

51460D

STUD

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

4

51461D

SPRING

SPRING, clutch lever

3шт.

5

16008R1

BALL,1/4" Dia, Steel

BALL, clutch lever adjusting screw seat

3шт.

6

352744R91

PLATE ASSY.

PLATE W/THREE BALL, 14008R1, clutch back

1шт.

7

52907D

SPRING

SPRING, clutch pressure, used w/plate assy, 351447R91

6шт.

7

353244R1

SPRING

SPRING, clutch pressure, used w/plate assy, 361581R91

6шт.

8

351448R2

PLATE

PLATE, clutch pressure, used w/plate assy, 351447R91

1шт.

8

375494R1

PLATE ASSY.

PLATE, clutch pressure, used w/plate assy, 361581R91

1шт.

9

61176V

RIVET

RIVET, clutch facing, use as required

1шт.

10

30718DXA

FACING

FACING SET, clutch, consists of two facing with twenty-two rivets, 61176V

1шт.

11

56631DB

DISC

DISC ASSY, clutch driven

1шт.

11

56631DBR

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 9 in., 6Tooth hub, full face friction matl

1шт.

11

56631DBC

CORE-CLUTCH DISC

Return Part Number

1шт.

11

389771A1

REMAN-CLUTCH KIT

100 Farmall, Kit Includes:Kit Includes: 1 - 1251692C91 Plate, 1 - 56631DBR Disc, 1 - ., 1 361292R91 Brg. 1 - 364527R2 Pivot Brg.

1шт.

11

389771A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

12

352582R91

LEVER

LEVER ASSY, clutch, composed of (3) lever 351449R91, (3) pin 51460D, (3) pin 103373, (3) spring 51461D

1шт.

13

361581R91

LARGE PLATE

PLATE, LARGE PLATE ASSY, clutch pressure, replaces 351467R91, composed of (1) lever package 353582R91, (1) plate 375494R1, (1) plate 252744R91, (4) spring 353244R1

1шт.

13

1251692C91

REMAN-CLUTCH PLATE

Farmall 100, Reman For New P/N 361581R91

1шт.

13

1944233C1

CORE-CLUTCH PLATE

Return Part Number

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
