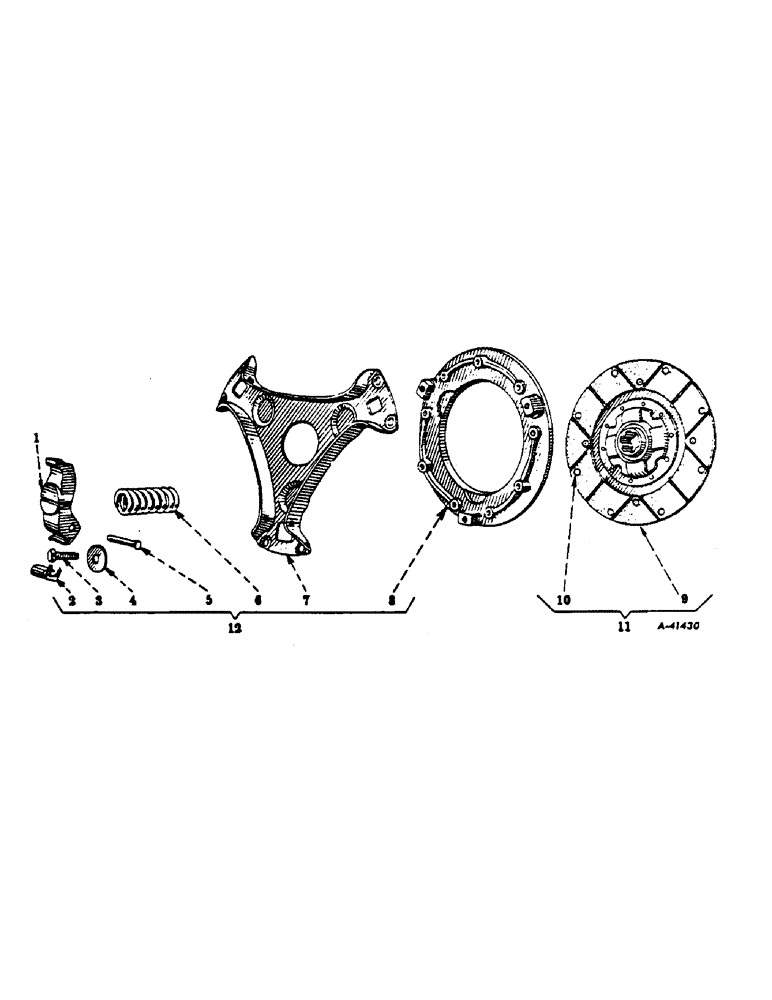

Запчасти Case IH 100 (07-03) - DRIVE TRAIN, CLUTCH, AUBURN, 9 INCHES (04) - Drive Train

1

69904D

LEVER, clutch release

3шт.

2

355110R1

NO LONGER SERVICED

CLIP, return

3шт.

3

355106R1

SCREW, clutch release lever adjusting

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

4

355096R1

WASHER, adjusting screw

3шт.

5

63161D

PIN, clutch release lever pivot

1шт.

6

362402R1

SPRING, pressure

3шт.

7

351918R1

BRACKET, clutch

1шт.

8

357419R1

PLATE, clutch pressure

1шт.

9

30718DXA

FACING

SET, clutch, consists of two facings with twenty-two rivets, 61176V

1шт.

10

61176V

RIVET

clutch facing, use as required

1шт.

11

351297R92

DISC

ASSY, clutch driven

1шт.

12

362138R91

PLATE

ASSY, clutch pressure, order plate assy, 375493R91, composed of (1) bracket 351918R1, (3) clip 355110R1, (3) lever 69904O, (3) nut, 114493, (3) pin 63161D, (1) plate 357419R1, (3) screw 355106R1, (3) spring 362602R1, (3) washer 355096R1

1шт.

12

1251692C91

REMAN-CLUTCH PLATE

Farmall 100, Farmall 130, Farmall 140, Reman For New P/N 362138R91

1шт.

12

1944233C1

CORE-CLUTCH PLATE

Return Number

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
