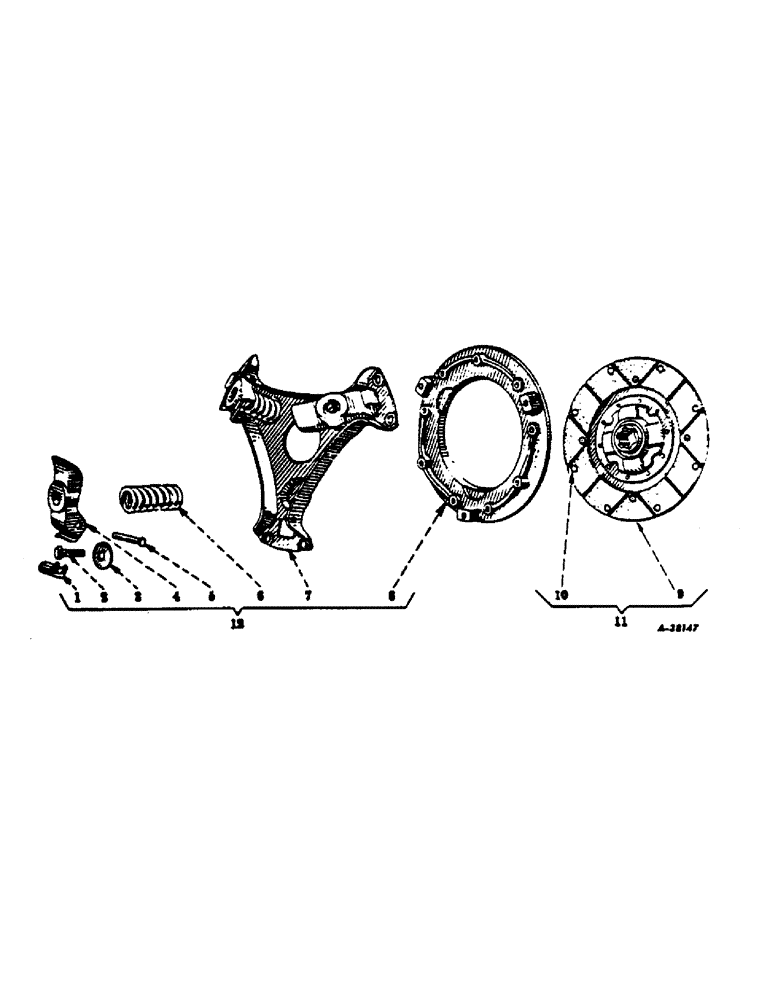

Запчасти Case IH 100 (07-02) - DRIVE TRAIN, CLUTCH, AUBURN, 9 INCHES (04) - Drive Train

1

355110R1

NO LONGER SERVICED

CLIP, return

3шт.

2

355106R1

SCREW, adjusting

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

3

355096R1

WASHER, adjusting screw

3шт.

4

357418R1

LEVER, clutch

3шт.

5

63161D

PIN, clutch lever pivot

3шт.

6

351920R1

SPRING, pressure

3шт.

7

351918R1

BRACKET, clutch

1шт.

8

357419R1

PLATE, clutch pressure

1шт.

9

30718DXA

FACING

SET, clutch, consists of two facings with twenty-two rivets, 41174V

1шт.

10

61176V

RIVET

clutch facing

1шт.

11

351297R92

DISC

ASSY, clutch driven

1шт.

12

351296R92

PLATE

ASSY, clutch pressure, order plate assy, 361581R91, composed of (1) bracket 351918R1, (3) clip 355110R1, (3) lever 357418R1, (3) nut 357418R1, (3) pin 63161O, (1) plate 357419R1, (3) screw 355106R1, (3) spring 351920R1, (3) washer 355096R1

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
