Запчасти Case IH 100 (15-8) - WHEELS AND TRACTIONS, REAR WHEEL WEIGHTS, SOLID, FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS Wheels & Traction

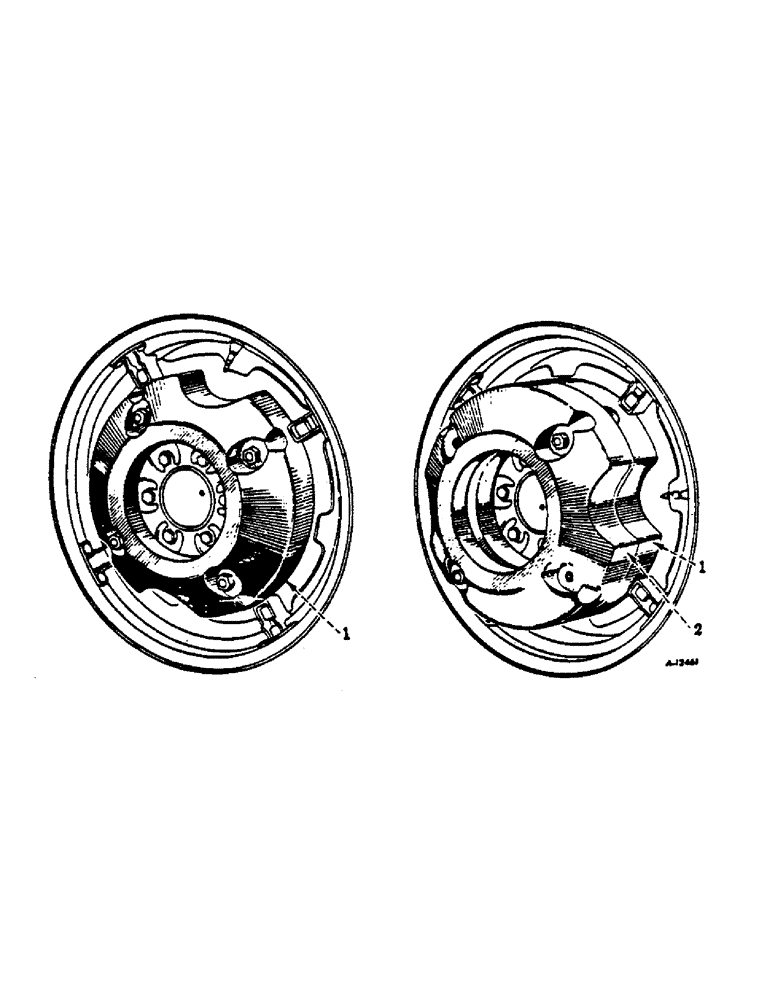

Схема запчастей Case IH 100 - (15-8) - WHEELS AND TRACTIONS, REAR WHEEL WEIGHTS, SOLID, FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS Wheels & Traction
1
1
2

Артикул

Название

Примечание

Количество

1

6701DA

WEIGHT, rear wheel first LH, approximately 145 pounds

1шт.

18574R1

BOLT,Short NK, 5/8"-11 x 3 1/2", G2

5/8-11 x 3-1/2 znd sq-nk crg

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

1

6701DA

WEIGHT, rear wheel firt RH, approximately 145 pounds

1шт.

18728R1

BOLT, 5/8-11 x 6 znd sq-nk crg Short NK, 5/8"-11 x 6", G2

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

6701DA

WEIGHT, rear wheel second LH, approximately 145 pounds

1шт.

23370R1

BOLT

5/8-11 x 6-3/4 znd sq-nk crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

6701DA

WEIGHT, rear wheel second RH, approximately 145 pounds

1шт.

21605R1

BOLT, 5/8-11 x 9 znd sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Выбрано товаров: 16
