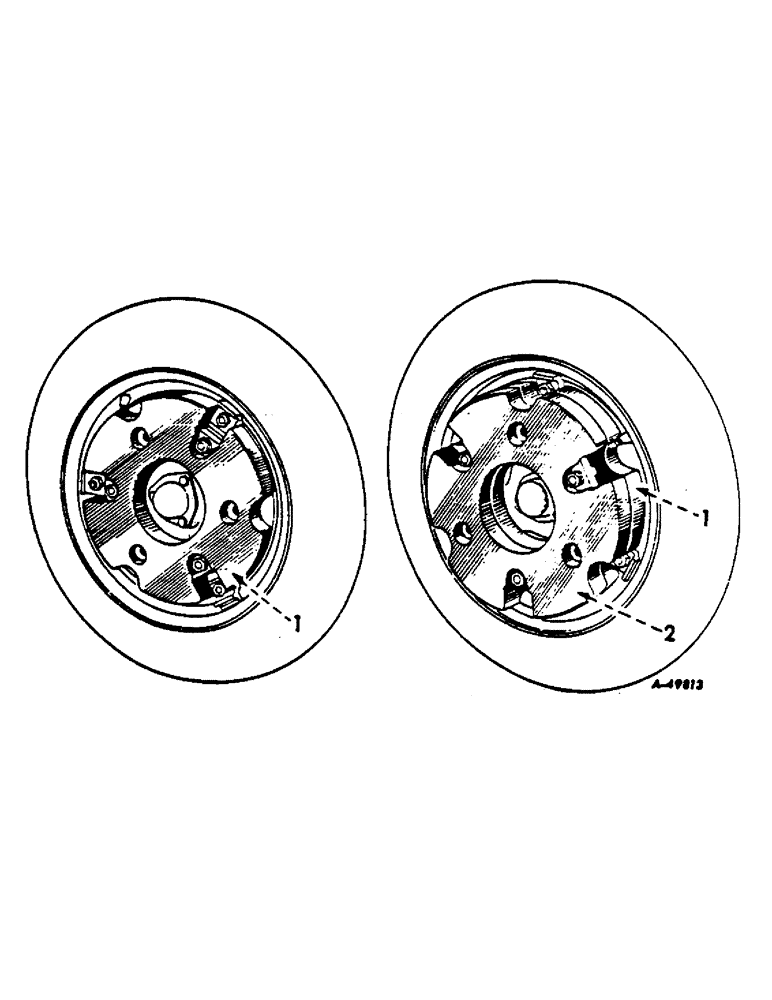

Запчасти Case IH 100 (15-7) - WHEELS AND TRACTIONS, FRONT WHEEL WEIGHTS, FOR 100 AND 130 SERIES TRACTORS Wheels & Traction

1

6788D

WEIGHT, front wheel, inner set, approximately 42-1/2 pounds

2шт.

13370R1

BOLT, 1/2-13 x 2-3/8 sq-hd mach

4шт.

102637

NUT,1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

6788D

WEIGHT, front wheel, outer set, approximately 42-1/2 pounds

2шт.

13416R1

BOLT

1/2-13 x 3 sq-hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.
