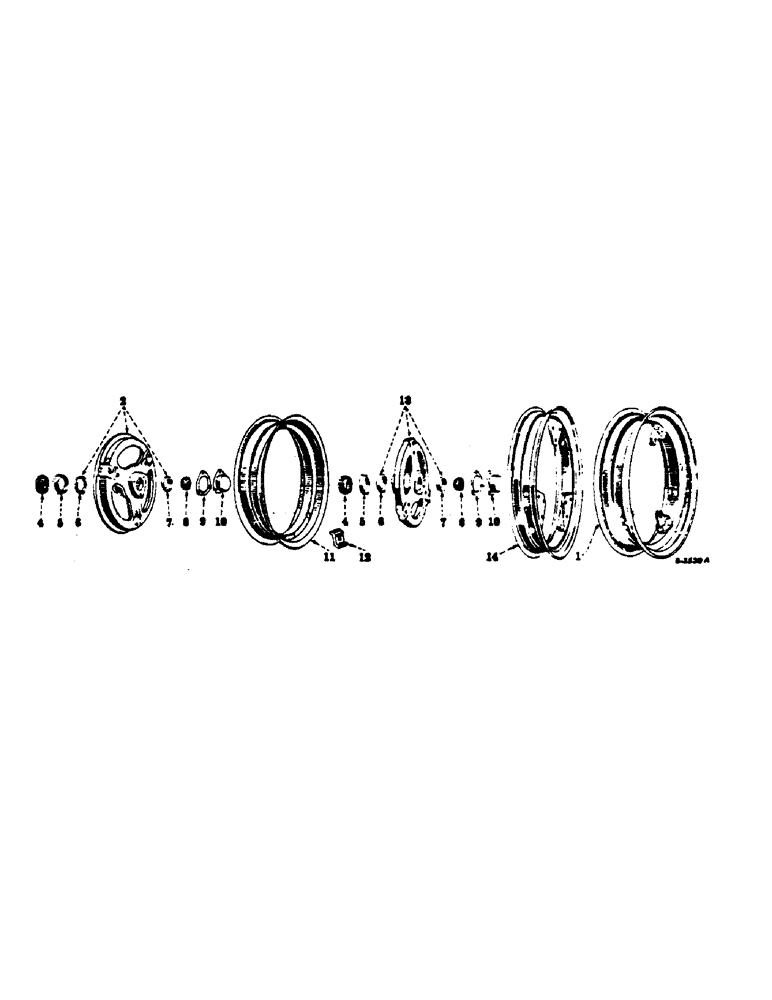

Запчасти Case IH 100 (15-2) - WHEELS AND TRACTION, FRONT WHEELS AND RIMS, FOR 100 AND 130 SERIES TRACTORS Wheels & Traction

1

352760R91

RIM W/CLAMPS, front wheel, 4.50-160C rim for 5.50 x 16 or 6.00 x 16 tires

2шт.

125653

NUT,1/2"-20, G5, Thk

1/2-20 znd thick hex

6шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 C-Z hex-hd cap, for all tractors except hi-clear models

6шт.

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

SCREW, 1/2-20 x 2-3/4 C-Z cap, for all tractors except hi-clear models

6шт.

492-21050

LOCK WASHER,1/2"

1/2"

6шт.

2

6787DEX

WHEEL ASSY, non-adjustable front, for all tractors except hi-clear models, composed of (1) bearing 43440D, (1) bearing 54630H, (1) ring 49117D, (1) wheel 6787DE (NSS)

2шт.

3

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

4

54631H

BEARING

ASSY, front wheel inner cone

2шт.

5

49117D

CUP ASSY.

RING, front wheel oil seal wear

2шт.

6

54630H

BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"

front wheel inner cup

2шт.

7

43440D

CUP ASSY.

BEARING, front wheel outer cup

2шт.

8

13823Y

BEARING ASSY, front wheel outer cone

2шт.

9

49116D

GASKET,0.79mm Thk

front wheel cap

2шт.

10

49115D

CYLINDER END CAP

CAP, front wheel hub

2шт.

179814

SPACER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

351556R92

RIM

front wheel, Farmall 100, used with non-adjustable wheel, 3.00D-150C rim for 4.00 x 15 or 5.00 x 15 tires

2шт.

12

48976DA

CLAMP

front wheel rim, for all tractors except hi-clear models, used with non-adjustable wheel

6шт.

351555R2

BOLT,Wheel, 1/2" - 20 x 2 5/8"

front wheel rim clamp

6шт.

125653

NUT,1/2"-20, G5, Thk

1/2-20 znd thick hex

6шт.

13

8734DX

WHEEL ASSY, adjustable front, without recess for rim clamps, composed of (1) bearing 54630H, (1) bearing 43440D, (1) ring 49117D, (1) wheel 8734D (NSS)

1шт.

13

9530DX

WHEEL ASSY, adjustable front, with recess for rim clamps, for all tractors except hi-clear models, composed of (1) bearing 43440D, (1) bearing 54630H, (1) ring 49117D, (1) wheel 9350D (NSS)

2шт.

14

57882D

RIM W/CLAMPS, front wheel, 3.00D-19DC rim for 4.00 x 19 tire, for hi-clear tractors, used with wheel, 6734D (NSS)

2шт.

125653

NUT,1/2"-20, G5, Thk

1/2-20 znd thick hex

6шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 C-Z hex-hd cap

6шт.

492-21050

LOCK WASHER,1/2"

1/2"

6шт.

14

57095D

DISC, WHEEL

RIM W/CLAMPS, front wheel, 3.00D-15DC rim for 4.00 x 15 or 5.00 x 15 tires, used with wheel 9350D (NSS), for all tractors except hi-clear model

2шт.

125653

NUT,1/2"-20, G5, Thk

1/2-20 znd thick hex

6шт.

181709

SCREW,Hex, 1/2" - 20 x 1/2"

1/2-20 x 2-1/2 C-Z hex-hd cap

6шт.

492-21050

LOCK WASHER,1/2"

1/2"

6шт.

360119R92

PACKAGE

front wheel bearing overhaul, consists of (1) bearing 13823V, (1) bearing 54631H, (1) bearing 46440D, (1) bearing 54630H, (1) gasket 49116D, (1) oil seal 46463D, (1) ring 49117D, (1) washer 49118DA, (1) washer 55453D

2шт.
