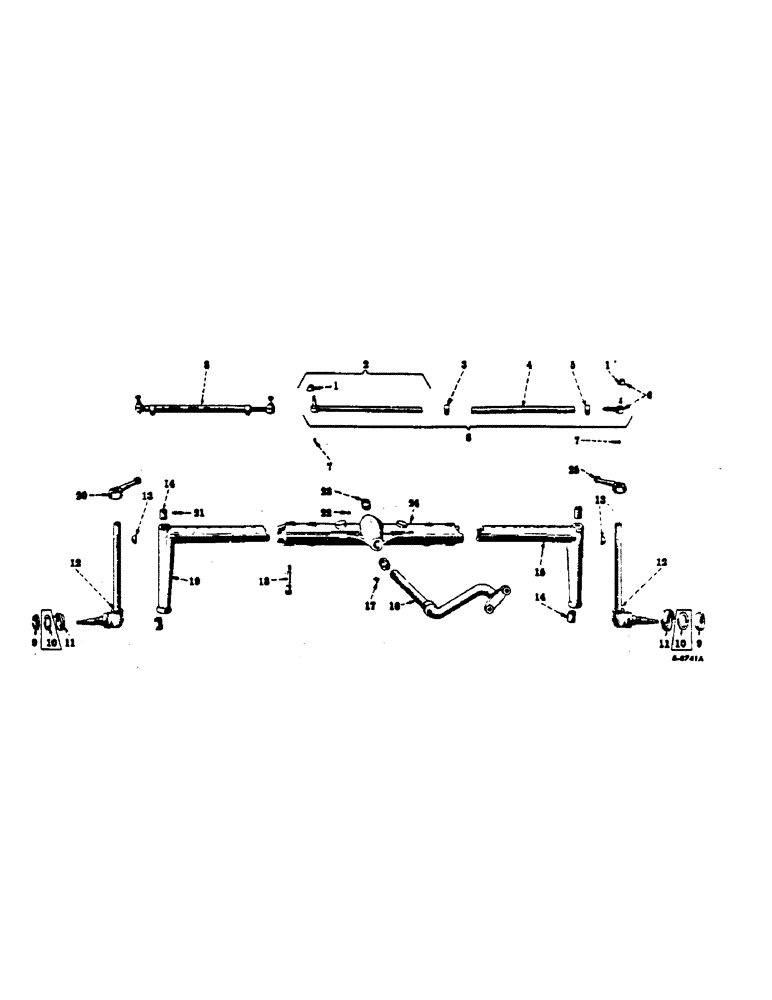

Запчасти Case IH 100 (14-4) - SUSPENSION, HEAVY DUTY ADJUSTABLE FRONT AXLE AND STEERING Suspension

NSS

NOT SOLD SEPARAT

SERVICE PARTS FOR HI-CLEAR TRACTORS, unit A

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS, unit B

1шт.

1

358209R1

COVER

tie rod end dust

4шт.

2

356544R11

TIE-ROD

END ASSY, adjustable tie rod, used with 7/8 tie rod tube, composed of (1) cover 358209R1, (1) end 356545R1 (NSS), (1) nut 102647, (1) pin 103385, (1) tie rod 356544R1 (NSS)

2шт.

2

360412R11

ROD

END ASSY, adjustable tie rod, used with 1 in. OD tie rod tube, composed of (1) cover 358209R1, (1) end 360413R91 (NSS), (1) nut 102647, (1) pin 103385, (1) tie rod 360412R1 (NSS)

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

3

354546R1

CLAMP, tie rod, for 7/8 OD tube

2шт.

103026

NUT,3/8"-24, G5

2шт.

181606

SCREW, 3/8-24 x 1-5/8 hex-hd cap

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

2шт.

3

43747D

CLAMP

tie rod, for 7/8 OD tie rod tube

2шт.

271505

BODY

7/16-20 hex

2шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

7/16-20 x 1-3/4 hex-hd cap

2шт.

114607

LOCK, Ext Tooth, 7/16"

2шт.

4

356547R2

TUBE, 7/8 OD in. long tie rod, 2 for unit A

1шт.

4

360417R1

TUBE,0.766" ID, 1.005" OD, 17" Length

1 in. OD x 17 in. long tie rod, 2 for unit A

1шт.

4

356548R2

TUBE,0.88" OD, 16.062" Length

7/8 OD x 16-1/16 in. long tie rod, 2 for unit B

1шт.

4

360411R1

TUBE,0.766" ID, 1.005" OD, 16.125" Length

1 in. OD X 16-1/8 in. long tie rod, 2 for unit B

1шт.

5

356543R1

CLAMP

tie rod

2шт.

103026

NUT,3/8"-24, G5

2шт.

181376

BOLT,Hex, 3/8" - 24 x 1 5/8", Gr 5

SCREW, 3/8-24 x 1-5/8 hex-hd cap

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

2шт.

6

356540R91

END

ASSY, tie rod, composed of (1) cover 358209R1, (1) end (NSS), (1) nut 102647, (1) pin 103385

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Tie rod 1/4"-28 NPT x .54" lg

4шт.

8

356538R93

ROD

TIE ROD ASSY, 2 for unit A, composed for (1) clamp 43747D, (1) clamp 356543R1, (1) end assy 3586540R91, (1) end assy 360412R11, (1) nut 103026, (1) nut 271505, (1) screw 181376, (1) screw 181403, (1) tube 360417R1, (1) washer 114606, (1) washer 114607

1шт.

8

356539R93

ROD

TIE ROD ASSY, 2 for unit B, composed of (1) clamp 356543R1, (1) clamp 43747D, (1) end assy 356540R91, (1) end assy 360412R11, (1) nut 103026, (1) nut 271505, (1) screw 181376, (1) screw 181403, (1) tube 360411R1, (1) washer 114606, (1) washer 114607

1шт.

9

43463D

OIL SEAL

OIL SEAL, front wheel, 100 and 130 series tractors, also used on 140 series tractors with cast front wheel

2шт.

9

372440R91

OIL SEAL

front wheel dust, 140 series tractors

2шт.

10

49118DA

WASHER,46.02mm ID x 64.29mm OD x 4.78mm Thk

front wheel felt, not used with 368629R91 front wheel dust seal

2шт.

11

43462D

DEFLECTOR

steering knuckle dust

2шт.

12

356532R92

KNUCKLE ASSY, steering, 2 for unit A, 100 and 130 series tractors, composed of (1) deflector 43462C, (1) knuckle 43460DC (NSS), (1) oil seal 43463D, (1) post 356534R2 (NSS), (1) washer 49118DA

1шт.

12

356531R92

KNUCKLE ASSY, steering, 2 for unit B, 100 and 130 series tractors, also used on 140 series tractors with cast front wheel, composed of (1) deflector 43462D, (1) knuckle 43460DC (NSS), (1) oil seal 43463D, (1) post 356533R2 (NSS), (1) washer 49118DA

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

Q1538

WASHER

21/32 x 1-1/4 x 12 ga

2шт.

12

370537R91

KNUCKLE ASSY, steering, 2 for unit A, 140 series tractors, composed of (1) deflector 43462D, (1) knuckle 370538R1 (NSS), (1) post 356534R2 (NSS), (1) seal 372440R91

1шт.

12

370539R91

KNUCKLE ASSY, steering, 2 for unit B, 140 series tractors, composed of (1) deflector 43462D, (1) knuckle 370538R1 (NSS), (1) post 356533R2 (NSS), (1) seal 372440R91

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

13

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

Steering knuckle #15, 1/4" x 1", HT

2шт.

14

356609R1

BUSHING,31.42mm ID x 35.89mm OD x 44.45mm L

front axle post

4шт.

15

9059DBX

EXTENSION W/TWO BUSHINGS, 356609R1, front axle RH, unit A

1шт.

15

9149DBX

EXTENSION W/TWO BUSHINGS, 356609R1, front axle RH, unit B

1шт.

16

60388DX

SHAFT, front axle pivot

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2-13 x 2-1/3 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS tap, 45 deg angle lubrication, pivot tube rear

1шт.

18

60387D

BOLT

front axle clamp

4шт.

425-1110

NUT,5/8"-18, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

9058DBX

EXTENSION W/TWO BUSHINGS, 356609R1, front axle LH, unit A

1шт.

19

9148DBX

EXTENSION W/TWO BUSHINGS, 356609R1, front axle LH, unit B

1шт.

20

358645R1

ARM, steering knuckle LH, 100 and 130 series tractors

1шт.

20

356535R2

ARM

steering knuckle LH, 140 series tractors

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

1шт.

181440

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

SCREW, 1/2-20 x 2-1/2 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Front axle 1/4"-28 NPT x .54" lg

4шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Pivot tube 1/4"-28 NPT x .54" lg

1шт.

23

60386DR

BUSHING

front axle pivot

2шт.

24

9057DAX

AXLE W/TWO BUSHINGS, 60386DR, front center

1шт.

25

358646R1

ARM, steering knuckle RH, 100 and 130 series tractors

1шт.

25

356536R2

ARM

steering knuckle RH, 140 series tractors

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

1шт.

181440

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

SCREW, 1/2-20 x 2-1/2 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
