Запчасти Case IH 100 (12-08) - POWER, GOVERNOR AND CHOKE CONTROLS, FOR TRACTORS EQUIPPED WITH FOOT ACCELERATOR Power

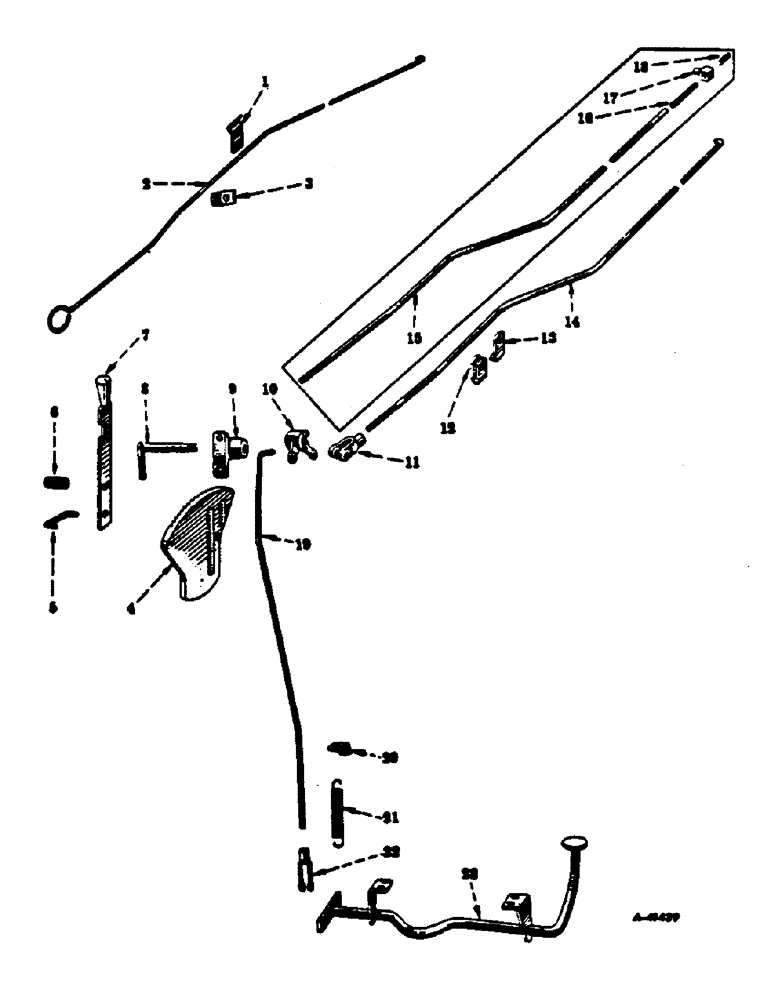

Схема запчастей Case IH 100 - (12-08) - POWER, GOVERNOR AND CHOKE CONTROLS, FOR TRACTORS EQUIPPED WITH FOOT ACCELERATOR Power
7
11
1
4
2
14
12
10
17

Артикул

Название

Примечание

Количество

1

350633R3

CLIP

choke rod front, for tractors equipped with touch-control

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

366732R1

ROD, choke, for 130 and 140 series tractors

1шт.

2

350744R1

ROD, choke, for 100 series tractors

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

3

350632R1

CLIP, choke rod front, for tractors w/o touch-control

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

350610R11

SECTOR

ASSY, governor control

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 x 1-7/8 hex-hd cap

1шт.

181346

BOLT

SCREW, 5/16-24 x 1-7/8 hex-hd cap, not used on tractors equipped with remote control

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

351194R1

LINK, foot accelerator pick-up link

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

6

43650D

SPRING

governor control lever

1шт.

7

350612R2

LEVER

SPRING, governor control lever

1шт.

8

351192R91

SHAFT W/PIN, 25109D, foot acelerator pick up

1шт.

25109D

PIN, foot accelerator pick-up lever shaft

1шт.

9

9150D

BRACKET, foot accelerator pick-up shaft

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

2шт.

181323

BOLT,Hex, 1/4" - 28 x 2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

9151D

LEVER, foot accelerator pick-up

1шт.

11

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4 adjustable rod end

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

12

350614R1

CLIP, governor control rod, for tractors w/o touch-control

1шт.

103026

NUT,3/8"-24, G5

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

350727R1

CLIP, governor control rod, on fuel tank rear mounting screw, for tractor equipped with touch-control

1шт.

14

351185R2

ROD, governor control, will work for 51299DA, 51300D, 53393D and 351185R1

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

Q103

WASHER

17/64 x 5/8 x 16 ga

1шт.

15

351185R1

ROD, governor control, order 351185R2, Ref. no. 14

1шт.

137130

PIN

1/16 x 7/16 cot.

3шт.

Q103

WASHER

17/64 x 5/8 x 16 ga

2шт.

16

53393D

SPRING

governor control rod rear equalizer, used only with rod, 351185R1

1шт.

17

51299DA

SWIVEL, governor control rod, used only with rod, 351185R1

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

Q103

WASHER

17/64 x 5/8 x 16 ga

1шт.

18

51300D

VALVE SPRING

SPRING, governor control front equalizer, used only with rod, 351185R1

1шт.

19

351191R1

ROD, foot accelerator

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

20

61085D

CLIP, foot accelerator spring

1шт.

21

61084D

SPRING

foot accelerator

1шт.

22

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4 adjustable rod end

1шт.

25-114

NUT,1/4"-28, G5

1/2-28 hex

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

23

61075DX

SHAFT ASSY, foot accelerator

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

4шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

5/16-18 x 3/4 slt-truss-hd mach

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Выбрано товаров: 60
