Запчасти Case IH 100 (11-3) - INSTRUMENTS, TACHOMETER AND CONNECTIONS, FOR TRACTORS EQUIPPED W/BATTERY IGNITION Instruments

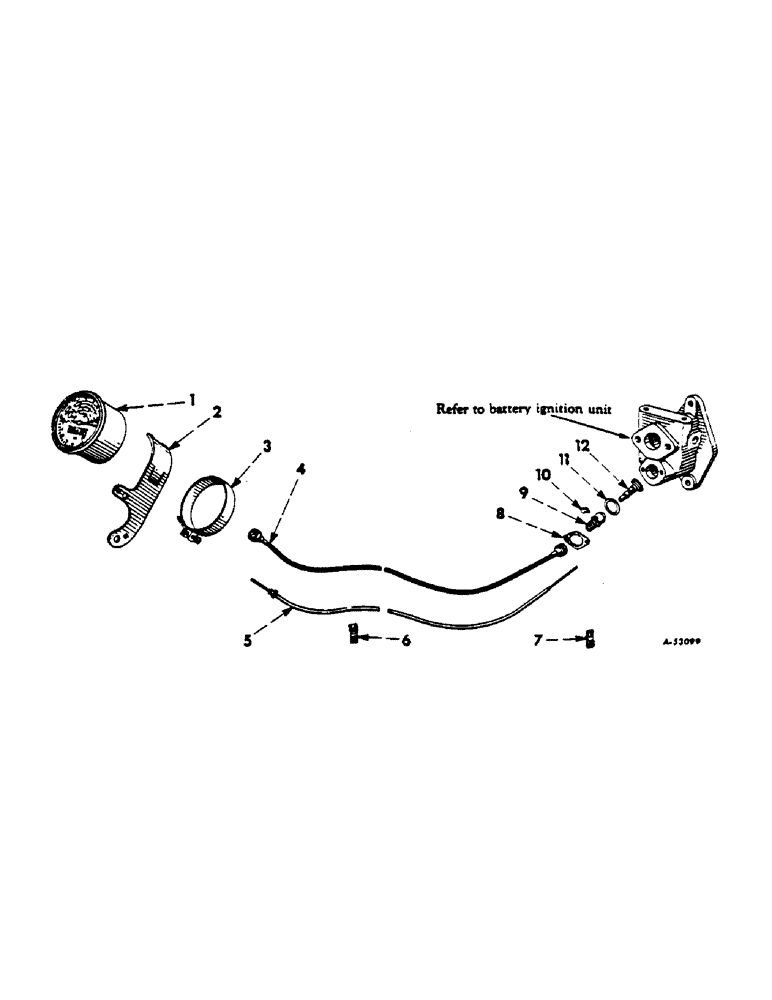

Схема запчастей Case IH 100 - (11-3) - INSTRUMENTS, TACHOMETER AND CONNECTIONS, FOR TRACTORS EQUIPPED W/BATTERY IGNITION Instruments
12
7
10
9
11
2
8
5
4
6
1
3

Артикул

Название

Примечание

Количество

1

370198R91

TACHOMETER ASSY, 130 series tractors except hi-clear

1шт.

1

383085R91

TACHOMETER

ASSY, 140 series tractors except hi-clear

1шт.

1

383086R91

TACHOMETER ASSY, 140 series hi-clear tractors

1шт.

2

370203R1

BRACKET, tachometer mounting

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SCREW, 1/4-20 x 7/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

357870R91

CLAMP

tachometer mounting, range 3/4 to 4 in. OD tachometer

1шт.

4

150941R91

CABLE

CONDUIT W/CORE, 150939R91, tachometer flexible drive shaft, order kit, 385081C91

1шт.

5

150939R91

CORE

tachometer flexible drive shaft, order kit 385081C91

1шт.

6

363812R1

CLIP, tachometer drive conduit, on fuel tank rear support mounting bolt LH side

1шт.

7

351913R1

CLIP, tachometer drive conduit, on lower rear tapped hole in cylinder head RH side

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

363817R1

RETAINER

PLATE, tachometer connection housing

1шт.

435429

SCREW, 10-32 x 9/16 C-Z slt-rd-hd mach Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

369692R1

HOUSING

tachometer connection

1шт.

10

369693R1

SUPPORT

RETAINER, tachometer drive gear

1шт.

11

363814R1

GASKET

tachometer connection housing

1шт.

12

369695R91

GEAR

tachometer, 32 teeth

1шт.

Выбрано товаров: 21
