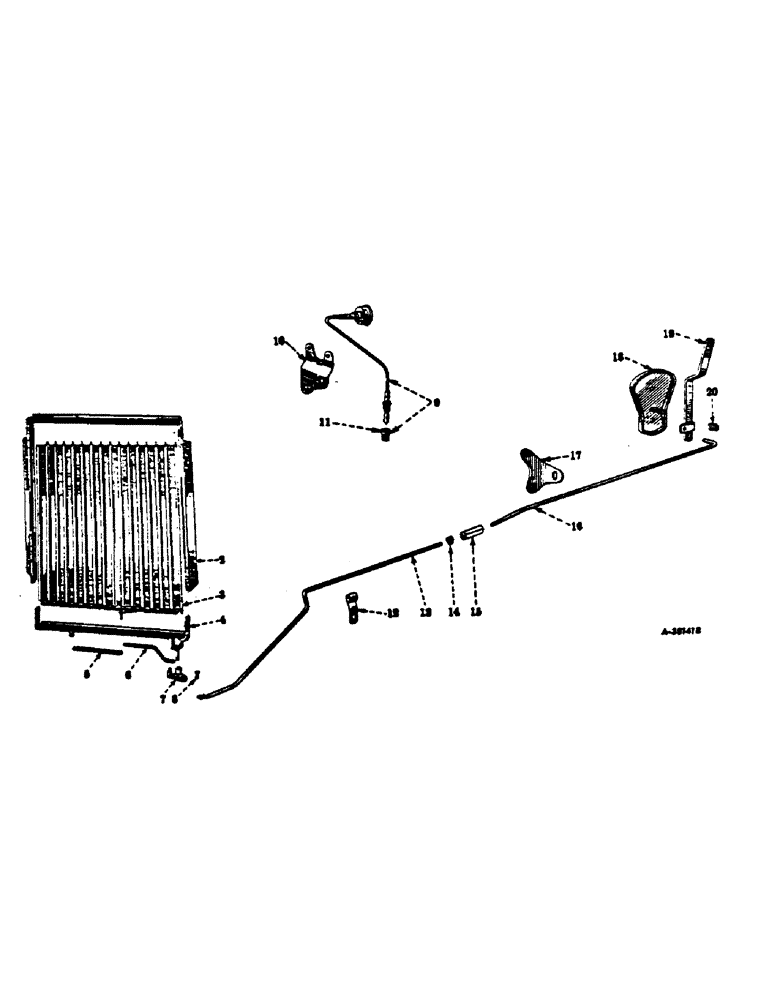

Запчасти Case IH 100 (06-4) - COOLING, RADIATOR SHUTTER, CONTROLS AND HEAT INDICATOR Cooling

1

NSS

NOT SOLD SEPARAT

(Not used this application)

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME AND BEARING BAR, discontinued for service

1шт.

118613

NUT,1/4"-20, G5

1/4-20 PHC hex

4шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 1/2 PHC slt-rd-hd mach

4шт.

115109

WASHER,1/4"

1/4"

4шт.

3

NSS

NOT SOLD SEPARAT

BAR, shutters and operating, discontinued for service

1шт.

112526

PIN, 1/16 x 3/8 cot.

1шт.

16559R1

WASHER,1/4"

17/64 x 9/16 x 18 ga C-Z

1шт.

4

NSS

NOT SOLD SEPARAT

TIE BAR, bottom and bearing bar, discontinued for service

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

352627R1

WASHER, 21/64 x 5/8 x 18 ga C-Z

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING, bellcrank and operating link, discontinued for service

1шт.

6

NSS

NOT SOLD SEPARAT

LINK, operating, discontinued for service

1шт.

7

NSS

NOT SOLD SEPARAT

BELLCRANK W/BUSHING AND STUD, discontinued for service

1шт.

112526

PIN, 1/16 x 3/8 cot.

1шт.

352626R1

WASHER, 19/64 x 5/8 x 18 ga C-Z

1шт.

8

NSS

NOT SOLD SEPARAT

PIN, bellcrank and operating link, discontinued for service

1шт.

112526

PIN, 1/16 x 3/8 cot.

1шт.

16559R1

WASHER,1/4"

17/64 x 9/16 x 18 ga C-Z

1шт.

9

393478R91

NO LONGER SERVICED

INDICATOR ASSY, heat, 170 to 220 degree range, for use w/165 to 195 degree thermostat, 130 series tractors

1шт.

9

536960R1

GAUGE ASSY.

INDICATOR ASSY, heat, replaces 393475R91, optional w/393476R91, 170 to 220 degree range, for use w/165 to 195 degree thermostat, 140 series tractors

1шт.

9

406989R91

ELECTRICAL GAUGE

INDICATOR ASSY, heat, 120 to 180 degree range, for use with low boiling point thermostat, 100 and 130 series tractors

1шт.

9

406884R1

GAUGE

INDICATOR ASSY, heat, 120 to 180 degree range, for use with low boiling point thermostat, 140 series tractors

1шт.

103089

12-24 hex

2шт.

125750

WASHER, no. 12 ext-tooth lock

2шт.

10

53620D

BRACKET, heat indicator, 100 and 130 series tractors

1шт.

10

371425R1

SUPPORT

BRACKET, heat indicator, 140 series tractors

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

537487R1

ADAPTER

BUSHING, heat indicator reducing

1шт.

12

NSS

NOT SOLD SEPARAT

BRACKET, radiator shutter control rod front, discontinued for service

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

NSS

NOT SOLD SEPARAT

ROD, radiator shutter control front, discontinued for service

1шт.

14

17265R1

JAM NUT

5/16-18 hex, jam, LH thread, will work for 69580DA

1шт.

15

69579DA

COUPLING, radiator shutter control rod

1шт.

16

NSS

NOT SOLD SEPARAT

ROD, radiator shutter control rear, discontinued for service

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

NSS

NOT SOLD SEPARAT

BRACKET, radiator shutter control rod rear, 100 and 130 series tractors, discontinued for service

1шт.

17

371424R1

BRACKET, radiator shutter control rod rear, 140 series tractors

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

SCREW, 1/4-20 x 11/16 hex-hd cap

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

1шт.

18

351412R11

SECTOR, radiator shutter control

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

19

NSS

NOT SOLD SEPARAT

LEVER, radiator shutter control, discontinued for service

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING, radiator shutter control lever, discontinued for service

1шт.
