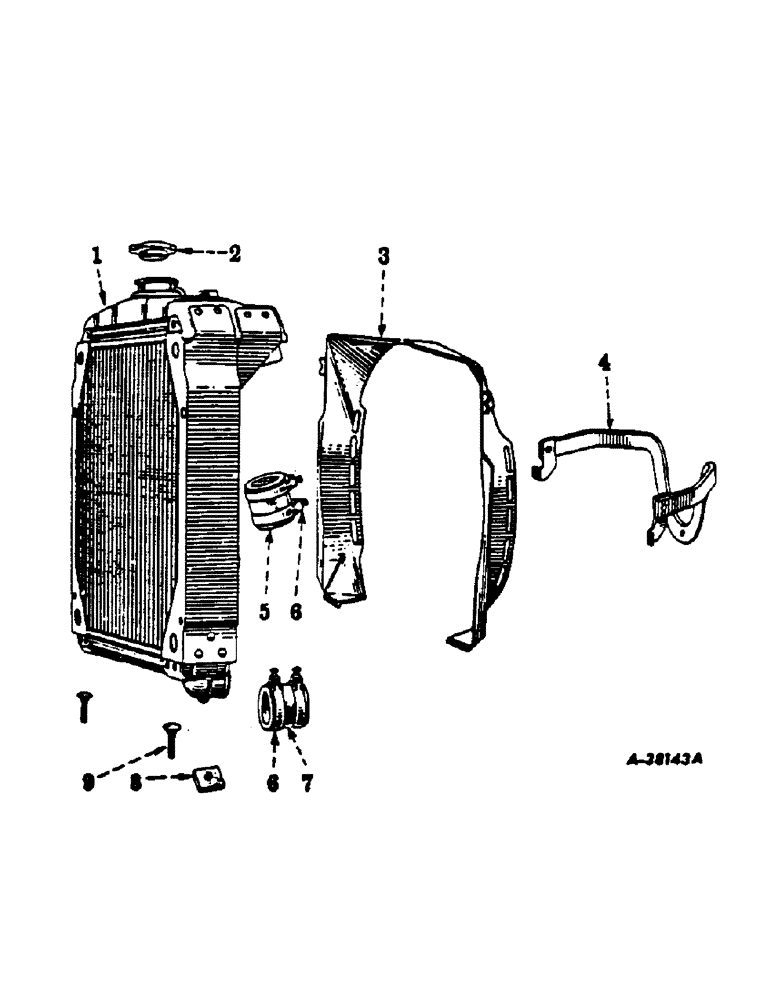

Запчасти Case IH 100 (06-2) - COOLING, RADIATOR AND CONNECTIONS, FOR 100 AND 130 SERIES TRACTORS Cooling

1

356356R96

RADIATOR

also order cap 393229R91

1шт.

2

361705R91

COVER

CAP, radiator filler, used with radiator 356356R94

1шт.

2

393229R91

CAP

radiator filler, used with radiator 356356R96

1шт.

3

351182R2

HOUSING, fan

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

4шт.

217220

SCREW, 5/16-24 x 3-3/4 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/16-24 x 4 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

356357R12

BRACE, radiator

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

355688R2

FLEXIBLE HOSE,2.38" ID x 2.75"

RADIATOR HOSE, , Inlet, 1 Ply, Cut From Bulk Hose 407011R1 2.38" ID x 2.75"

1шт.

6

357870R91

CLAMP

hose, strap-type, range 3/4 to 4 in. OD hose

4шт.

7

351964R2

HOSE

radiator outlet, 2 in. ID x 3 in. long, 1 ply, to be cut from bulk hose 407008R1

1шт.

8

47240D

PAD

radiator

2шт.

9

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

radiator mounting

2шт.

NLS

NO LONGER SERVICED

7/16-20 C-Z hex

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
