Запчасти Case IH 100 (02-2) - MISCELLANEOUS, PRODUCT GRAPHICS Accessories & Attachments / Miscellaneous

362521R93

PACKAGE

product graphics service, 100 and 130 series tractors, consists of background hood sheet name plate LH (NSS) background hood sheet name plate RH (NSS)

1шт.

539403R1

CAUTION DECAL

PRODUCT GRAPHIC, caution instructions

1шт.

1000867R1

DECAL

PRODUCT GRAPHIC, lighting switch

1шт.

2753413R1

PRODUCT GRAPHIC

safety and operating instructions, 140-serial no. 36926 and below

1шт.

2750268R1

PRODUCT GRAPHIC

lighting switch, 140-serial no. 36926 and below

1шт.

2751818R1

PRODUCT GRAPHIC

140 model designation, 2-serial no. 36926 and below

1шт.

2751874R1

PRODUCT GRAPHIC, 140 hi-clear model designation, 2-serial no. 36926 and below

1шт.

2751875R1

PRODUCT GRAPHIC

International name, 140-serial no. 36926 and below

2шт.

2751876R1

PRODUCT GRAPHIC

McCormick Farmall name, 140-serial no. 36926 and below

2шт.

70941C4

PACKAGE

1шт.

PACKAGE, product graphics service, 140-serial no. 36927 & above, consists of (2) product graphic, International name (NSS) (2) product graphic, Farmall 140 model designation (NSS) product graphic, Mc Cormick (NSS) (2) product graphic, 140 model designation (NSS) product graphic, lighting switch (NSS)

1шт.

539403R1

CAUTION DECAL

PRODUCT GRAPHIC, caution instructions

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, caution, general warning product graphic, directional indicator and lighting switch (NSS) product graphic, lighting switch, for red vehicle (NSS) product graphic, lighting switch, for yellow vehicle (NSS)

1шт.

64553C1

DECAL

PRODUCT GRAPHIC, caution power drive

1шт.

68819C1

CAUTION DECAL

PRODUCT GRAPHIC, booster battery caution instructions

1шт.

389507R91

PACKAGE, 100 series tractor product graphics service, consists of (2) product graphic, 100 tractor model designation (NSS) (2) product graphic, Mc Cormick trademark (NSS) (2) product graphic, Farmall name plate (NSS)

1шт.

2751844R1

PRODUCT GRAPHIC

in emblem, optional with 2751946R1

1шт.

155097

SCREW, 10-24 x 5/16 cr-rec-rd-hd mach

2шт.

2751846R1

EMBLEM CASE/IH

PRODUCT GRAPHIC, in emblem, optional with 2751844R1

1шт.

385129R1

SCREW,Sl Rnd Hd, #10 - 16 x 3/8"

10-16 x 3/8 thd cutting

2шт.

70571C1

DECAL

PRODUCT GRAPHIC, rops caution

1шт.

70773C1

DECAL

PRODUCT GRAPHIC, seat belt and rops caution instructions

1шт.

53617D

KIT

GASKET SET, chassis consists of 19, package assorted

1шт.

47283DA

GASKET

countershaft bearing cage, package assorted

1шт.

366838R1

GASKET

differential shaft bearing cover, package assorted

2шт.

49116D

GASKET,0.79mm Thk

front wheel hub cap, package assorted

2шт.

23977DB

GASKET

fuel tank filler cap, package assorted

1шт.

43984D

GASKET

radiator cap, package assorted

1шт.

48009DB

GASKET

rear axle bearing retainer, package assorted

2шт.

362778R1

GASKET

rear axle bearing retainer, package assorted

2шт.

47954D

GASKET

rear axle housing bearing cap, package assorted

2шт.

43245D

GASKET

rear axle housing pan, package assorted

2шт.

47675D

GASKET

steering gear housing, package assorted

1шт.

47279DA

GASKET

transmission case cover, package assorted

1шт.

60589DA

GASKET

transmission case rear cover plate, package assorted

1шт.

46503D

GASKET,0.79mm Thk

transmission spline shaft bearing retainer, package assorted

1шт.

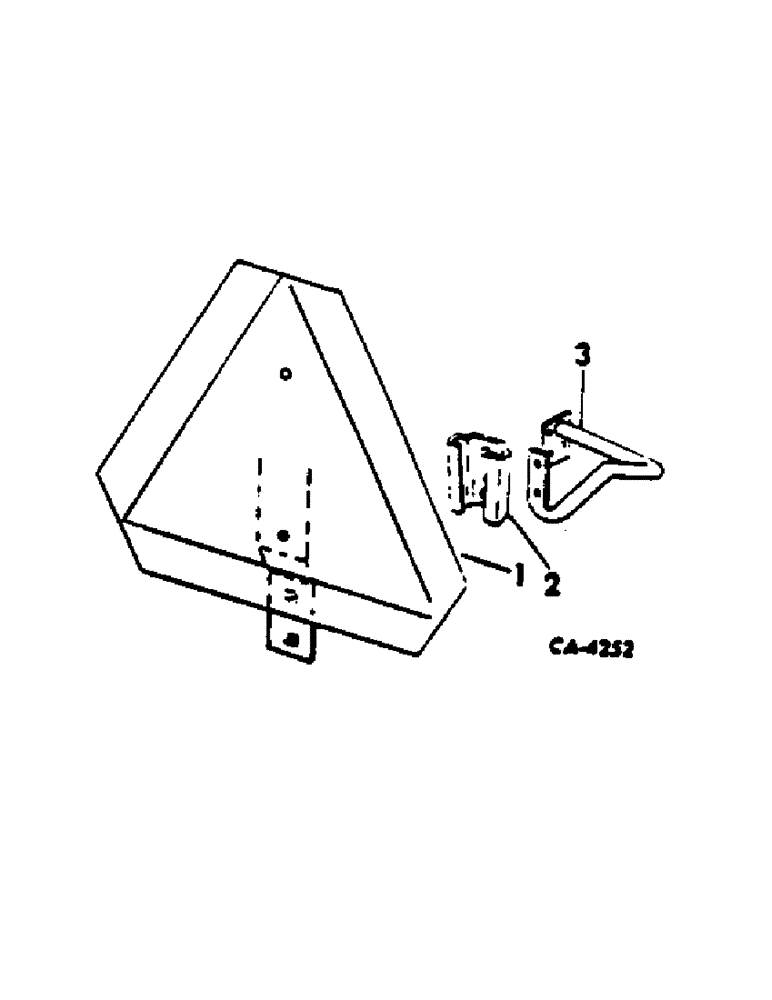

534870R91

PARTS ACCESSORY, slow moving vehicle emblem mounting bracket, consists of ref nos. 2, 3 and attaching hardware, serial no. 62471 and below, 140 series trac

1шт.

1

407220R1

PRODUCT GRAPHIC

PACKAGE, slow moving vehicle emblem and mounting bracket, 140 series trac

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 rd-hd-slt machine, slow moving vehicle emblem and mounting bracket, 140 series trac

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

SMV emblem and mounting bracket, 140 series tractor #10-24

2шт.

167077

SCREW

no. 10 x 3/8 P/HDCR tap, slow moving vehicle emblem and mounting bracket, 140 series trac

2шт.

2

398976R1

BRACKET

SOCKET, slow moving vehicle emblem and mounting bracket, 140 series trac

1шт.

19428R1

BOLT, 5/16-18 x 5/8 C-Z sq-nk crg, slow moving vehicle emblem and mounting bracket, 140 series trac

2шт.

120376

NUT,5/16"-18, G5

SMV emblem and mounting bracket, 140 series tractor 5/16"-18, G5

2шт.

3

534802R1

ARM ASSY, slow moving vehicle emblem and mounting bracket, 140 series trac

1шт.

19416R1

BOLT

5/16-18 x 3/4 C-Z sq-nk crk, slow moving vehicle emblem and mounting bracket, 140 series trac

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 C-Z hex-hd cap, slow moving vehicle emblem and mounting bracket, 140 series trac

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap, slow moving vehicle emblem and mounting bracket, 140 series trac

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , SMV and mounting bracket, 140 series trac 5/16"

4шт.

120376

NUT,5/16"-18, G5

SMV emblem and mounting bracket, 140 series tractor 5/16"-18, G5

4шт.

NSS

NOT SOLD SEPARAT

SUPPORT, not serviced separately, serial no. 62472 and above, slow moving vehicle emblem and mounting bracket, 140 series trac

1шт.

NSS

NOT SOLD SEPARAT

BAR, slow moving vehicle emblem mounting, plate, not serviced separately, serial no. 62472 and above

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5, slow moving vehicle emblem and mounting bracket, 140 series trac

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051, slow moving vehicle emblem and mounting bracket, 140 series trac

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

SMV and mounting bracket, 140 series tractor 1/4"-20, G5

1шт.
