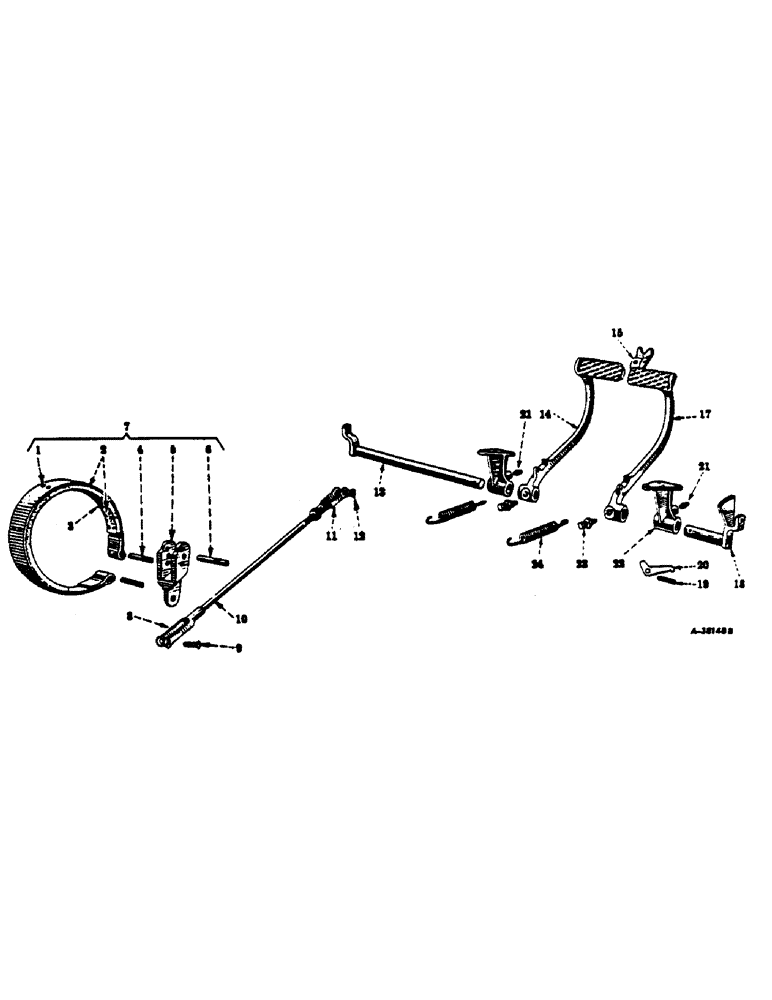

Запчасти Case IH 100 (04-2) - BRAKES (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1
59469D
RIVET
brake band lining
24шт.
2
358660R21
BRAKE BAND
BAND W/LINING AND TWELVE RIVETS, 59469D, brake
2шт.
3
358667R91
PACKAGE
LINING SET, brake, includes lining and twelve rivets 59469D
2шт.
4
358664R2
PIN
brake bank anchor
4шт.
5
358662R2
FORK
TOGGLE, actuating brake band
2шт.
6
358663R1
PIVOT PIN
PIN, pivot brake band
2шт.
7
358659R93
BAND
ASSY, brake, composed of (1) band 358660R21 (1) pin 358663R1 (2) pin 358664R2 (1) toggle 358662R2
1шт.
Assembly no longer available, order individual components
1шт.
8
359988R1
YOKE
CLEVIS, brake band
2шт.
9
427-5094
CLEVIS PIN,7.92mm OD x 23.88mm L
Brake band rod 5/16" x .940", HDN
2шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
10
359987R1
STUD
ROD, brake band operating
2шт.
114494
NUT,Jam, 3/8"-24, G5
4шт.
11
104038
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS, 3/8-24 adjustable rod end
2шт.
12
103496
CLEVIS PIN,3/8" x 1.060"
PIN, 3/8 x 1-3/32 rod end
2шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
13
51425DX
SHAFT
ASSY, LH brake
1шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1-1/2"
1шт.
Q3479
WASHER
29/32 x 1-3/8 x 14 ga
1шт.
14
6569D
PEDAL, LH brake
1шт.
15
51293D
SPRING
brake pedal lock plate tension
1шт.
16
NSS
NOT SOLD SEPARAT
(Not used this application)
1шт.
17
6570DX
PEDAL W/LOCK PLATE, rivet 104086 and spring 51293D, RH brake
1шт.
18
51507D
SHAFT
ASSY, RH brake
1шт.
19
49005D
PIN, brake ratchet pawl pivot
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
20
47859DA
PAWL
brake ratchet
1шт.
21
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
22
8116DC
BRACKET
brake shaft
2шт.
181339
BOLT,Hex, 5/16" - 24 x 1", Gr 5
6шт.
23
43528D
SCREW
brake pedal locking
2шт.
114505
JAM NUT,Jam, 1/2"-13, G5
2шт.
24
47845DA
SPRING
brake pedal return
2шт.
Выбрано товаров: 35
