Запчасти Case IH 100 (09-8) - FRAME, CUSHION SPRING, FOR TRACTORS EQUIPPED WITH FAST-HITCH (12) - FRAME

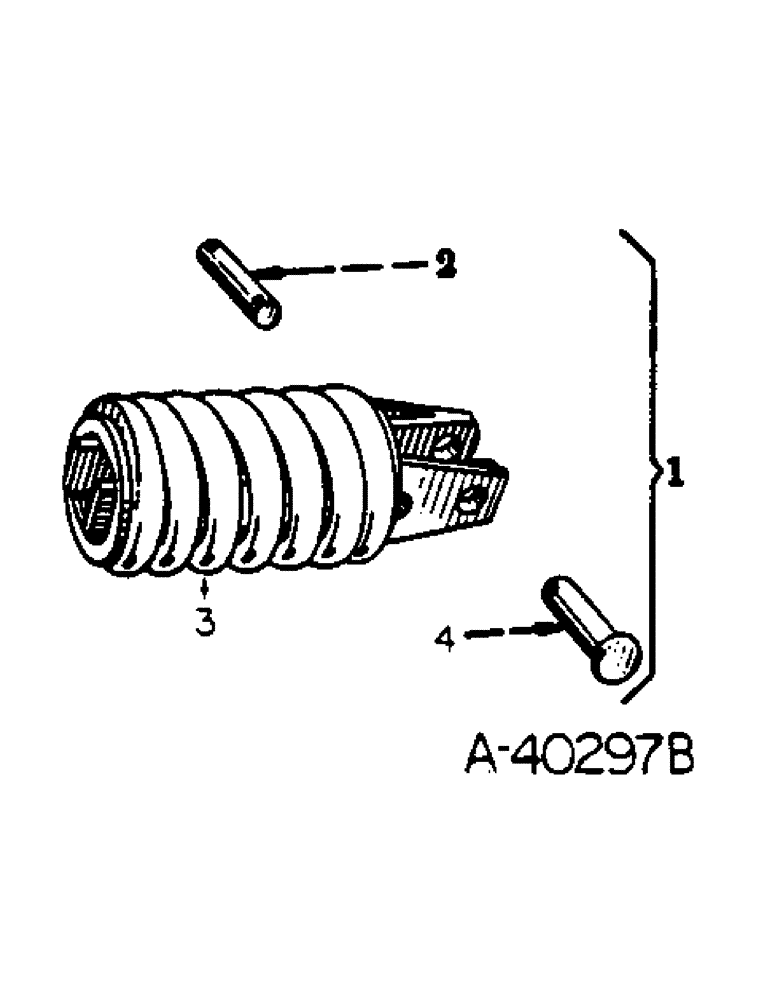

Схема запчастей Case IH 100 - (09-8) - FRAME, CUSHION SPRING, FOR TRACTORS EQUIPPED WITH FAST-HITCH (12) - FRAME
2
3
4
1

Артикул

Название

Примечание

Количество

1

520058R91

PARTS ACCESSORY, fast-hitch cushion spring

1шт.

2

520115R1

PIN, spring retaining

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

3

NSS

NOT SOLD SEPARAT

SPRING ASSY, cushion, order parts accessory, 520058R91

1шт.

4

520121R1

PIN, cushion spring strap

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1-1/2", self opening 1/4" x 1 1/2"

1шт.

Выбрано товаров: 6
