Запчасти Case IH 100 (09-7) - FRAME, AUXILIARY DRAWBAR, FOR TRACTORS EQUIPPED WITH FAST-HITCH (12) - FRAME

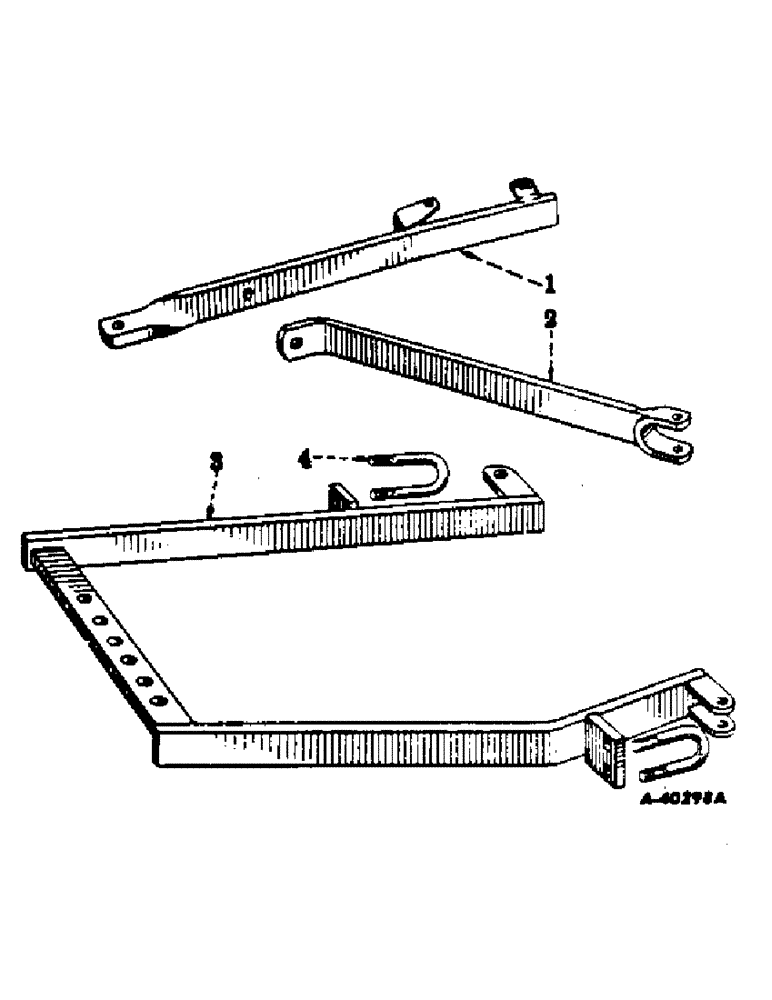

Схема запчастей Case IH 100 - (09-7) - FRAME, AUXILIARY DRAWBAR, FOR TRACTORS EQUIPPED WITH FAST-HITCH (12) - FRAME
1
4

Артикул

Название

Примечание

Количество

1

520171R11

DRAWBAR ASSY, auxiliary

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

NSS

NOT SOLD SEPARAT

BRACE, drawbar, discontinued for service

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 hex-hd mach

1шт.

17552R1

BOLT, 5/8-11 x 2-1/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

102639

NUT,5/8"-11, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

NSS

NOT SOLD SEPARAT

DRAWBAR, auxiliary, discontinued for service

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

NSS

NOT SOLD SEPARAT

U-BOLT, discontinued for service

1шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

Выбрано товаров: 18
