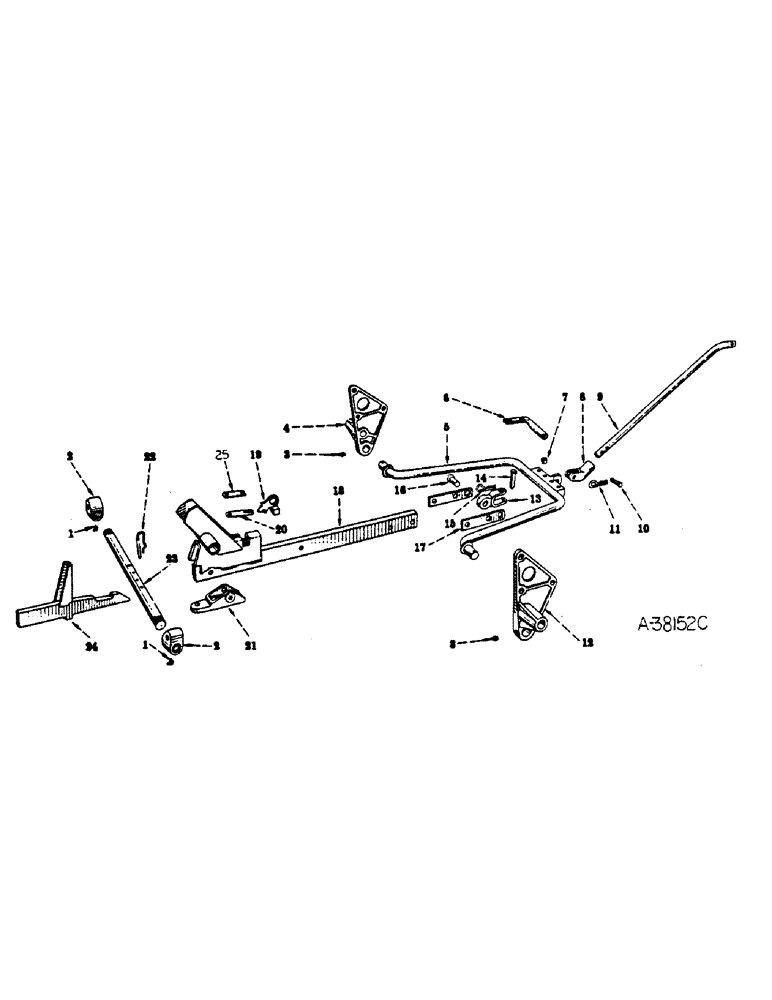

Запчасти Case IH 100 (09-5) - FRAME, FAST-HITCH (12) - FRAME

1

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg angle lub

2шт.

2

520061R1

FITTING

BEARING, lower rockshaft

2шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

4

520063R1

BRACKET, hitch attaching LH

1шт.

17553R1

BOLT (SPREADER)

BOLT, 3/4-10 x 2-1/4 hex-hd mach

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

5

520077R12

BAIL ASSY, hitch

1шт.

13157R1

PIN, 1/4 x 2 self-opening cot.

2шт.

552423R1

WASHER

1-13/32 x 2-1/4 x 11 ga

2шт.

6

520074R1

SUPPORT

BRACKET, bail upper lock

1шт.

102637

NUT,1/2"-13, G5

2шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 13 ga

2шт.

7

520103R1

BEARING, bail tab

1шт.

8

520070R1

YOKE

EXTENSION, draft link

2шт.

LC177

PIN

1/2 x 1-13/16 std-hd drilled

1шт.

13081R1

Pin, Split (Cotter), 3/16" x 1-1/8", self-opening 3/16" x 1 1/8"

1шт.

9

520086R1

ROD

LINK, draft

1шт.

10

520109R1

PIN

hitch point extension, pointed

1шт.

11

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

12

520062R1

BRACKET, hitch attaching RH

1шт.

17553R1

BOLT (SPREADER)

BOLT, 3/4-10 x 2-1/4 hex-hd mach

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

13

520069R1

YOKE

BRACKET, pull bar pivot

1шт.

14

520296R1

PIN

pull bar pivot bracket, pointed

1шт.

15

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

16

363415R1

PIN

pull bar pivot, not used on tractors equipped with cushion spring

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1-1/2", self opening 1/4" x 1 1/2"

1шт.

17

520102R1

STRAP, pull bar extension, not used on tractors equipped with cushion spring

2шт.

17604R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 3/4", G2

BOLT, 5/8-11 x 2-3/4 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

17630R1

BOLT

3/4-10 x 3 hex-hd mach

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

1шт.

18

520089R11

BAR ASSY, hitch pull

1шт.

19

393500R1

LATCH ASSY.

LATCH, beam socket coupling

1шт.

20

522839R1

VALVE SPRING

SPRING, latch

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Not used on hitch equipped with auxilary spring 3/8"

1шт.

21

520095R2

EXTENSION

pull bar

1шт.

PO12095

HEADED PIN,15.88mm OD x 84.12mm L

PIN, 5/8 x 3-5/16 std-hd drilled

1шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

22

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSY, pull bar lock

1шт.

23

520085R1

ROD

ROCKSHAFT, lower

1шт.

24

521093R92

COUPLING BEAM, use to adapt allied implements for use with fast hitch by welding this to or by drilling holes and bolting this to the implement

1шт.

25

522840R2

VALVE SPRING

SPRING, auxiliary latch, used on increase spring pressure

1шт.
