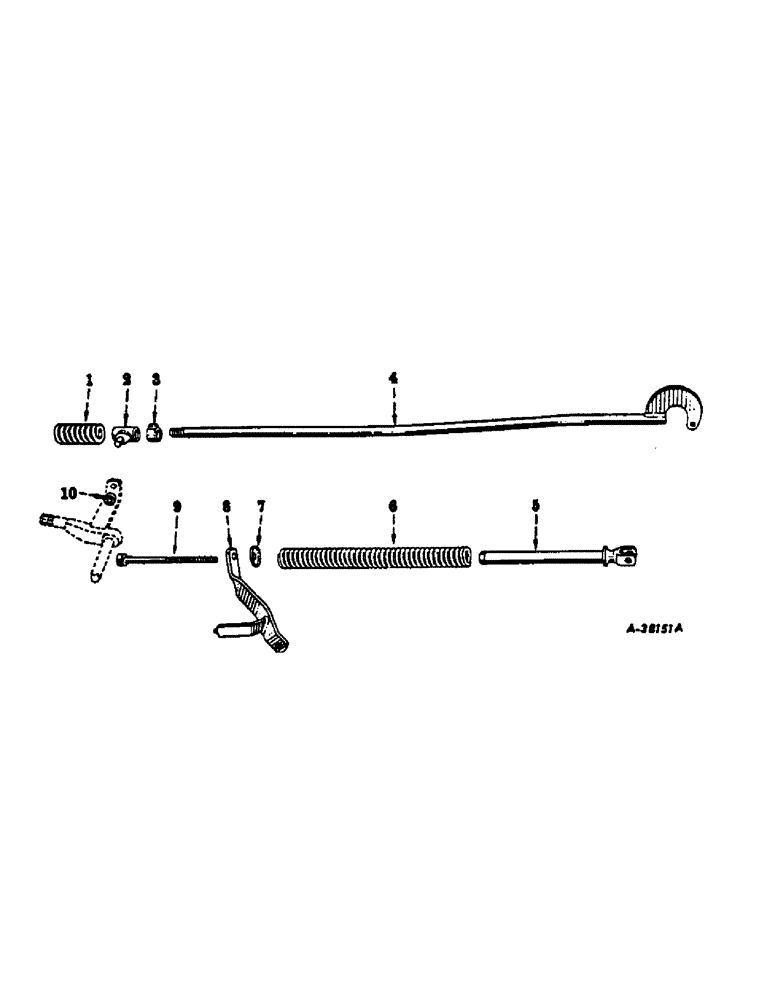

Запчасти Case IH 100 (09-4) - FRAME, FAST-HITCH (12) - FRAME

NSS

NOT SOLD SEPARAT

ATTACHMENT, fast-hitch, 363644R91, 100 series tractors w/serial no. 1377 and below

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, fast-hitch, 363645R91, 100 series tractors w/serial no. 1378 and above

1шт.

1

520712R1

SPRING

lift link cushion

1шт.

2

520066R1

PIVOT

TRUNNION, lift link

1шт.

3

2638X

COLLAR

ASSY, lift link set

1шт.

4

520710R91

LINK

W/NUT, 218445, lift

1шт.

218445

NUT,Jam, 1"-8, G5

1, 8 hex, jam

1шт.

13139R1

PIN, 1/4 x 1-3/4 self-opening cot.

1шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x 10 ga

1шт.

5

520708R11

GUIDE ASSY, helper spring

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, 5/8 x 1-3/4 std-hd drilled

1шт.

6

520713R1

SPRING

lift arm helper

1шт.

7

520711R1

WASHER, helper spring retainer

1шт.

8

520705R91

BRACKET, helper spring anchor

1шт.

17526R1

BOLT, 3/4-10 x 2 hex-hd mach

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

520714R1

BOLT

helper spring

1шт.

10

521208R1

COLLAR, lift link trunnion, used only with rockshaft, 520072R11

1шт.

13034R1

PIN, 1/8 x 5/8 self-opening cot.

1шт.

521209R1

PIN, lift link trunnion collar

1шт.

10

522013R1

HUB

COLLAR, lift link trunnion, used only with rockshaft, 522014R92

1шт.

13034R1

PIN, 1/8 x 5/8 self-opening cot.

1шт.

522292R1

PIN,5/16" x 1 3/4"

lift link trunnion collar

1шт.
