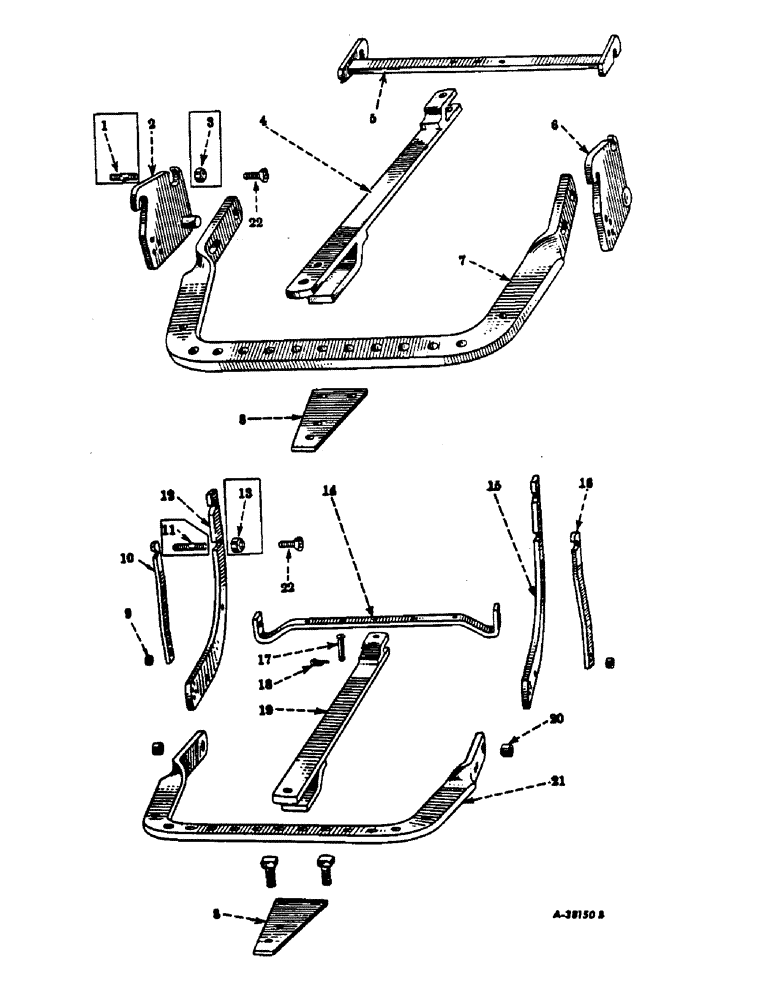

Запчасти Case IH 100 (09-2) - FRAME, FIXED DRAWBARS, NOT USED ON TRACTORS WITH FAST-HITCH (12) - FRAME

NSS

NOT SOLD SEPARAT

SERVICE PARTS FOR ALL TRACTORS EXCEPT HI-CLEAR MODEL, consists of all parts marked unit A

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS OF HI-CLEAR TRACTOR, consists of all parts marked unit B

1шт.

69426D

ATTACHMENT, swinging drawbar, for all tractors except hi-clear models, consist of Ref. nos. 4, 5 and attaching parts

1шт.

1

69499D

STUD

quick attachable drawbar, 2-1/2 i. long, 8 for unit A, 100 and 130 series tractors, 140 series tractors w/serial no. 4465 and below

1шт.

2

350833R11

BRACKET

ASSY, quick attachable drawbar LH, unit A

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4", unit A

1шт.

3

69500D

SPECIAL NUT

NUT, quick attachable drawbar stud, 8 for unit A, 100 and 130 series tractors w/serial no. 4465 and below

1шт.

4

69422DX

DRAWBAR ASSY, swinging, unit A

1шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

SCREW, 5/8-16 x 1 hex-hd cap, unit A

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Unit A 5/8"

1шт.

425-1110

NUT,5/8"-18, G5

Unit A 5/8"-18, G5

1шт.

13296R1

BOLT, 3/4-10 x 1-1/2 sq-hd mach, swinging drawbar stop, 2 for unit A, used to lock swinging drawbar in rigid position when desired

1шт.

220081

NUT

3/4-10 hex, 2 for unit A, used to lock swinging drawbar in rigid position when desired

1шт.

103026

NUT,3/8"-24, G5

WASHER, 3/4 med lock, 2 for unit A, used to lock swinging drawbar in rigid position when desired

1шт.

5

69425DX

BAR ASSY, swinging drawbar anchor, unit A, for tractors equipped with swinging drawbar

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 x 1-1/2 x .134, unit A, used as attaching shim

1шт.

6

350834R11

BRACKET ASSY, quick attachable drawbar RH, unit A

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4", unit A

1шт.

7

350832R1

DRAWBAR, quick attachable, unit A

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex, 2 for unit A

1шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-2C x 2 hex-hd cap, 2 for unit A

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , 2 for unit A 1/2"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 13 ga, 2 for unit A

1шт.

8

66185D

BAR

EXTENSION, drawbar, units A and B, provides A standardized power take-off hitch for tractors equipped with power take-off

1шт.

425-1012

NUT,3/4"-10, G5

3/4 hex, 2 for units A and B

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap, 2 for units A and B

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , 2 for units A and B 3/4"

1шт.

9

351721R1

BUSHING, quick attachable drawbar brace, 2 for unit B

1шт.

10

351719R1

BRACE, quick attachable drawbar LH, unit B

1шт.

11

352117R1

STUD

quick attachable drawbar, 2-3/4 in. long, 12 for unit B, 100 and 130 series tractors, 140 series tractors w/serial no. 4465 and below

1шт.

12

351717R1

BRACKET, quick attachable drawbar LH, unit B

1шт.

13

69500D

SPECIAL NUT

NUT, quick attachable drawbar stud, 12 for unit B, 100 and 130 series tractors, 140 series tractors w/serial no. 4465 and below

1шт.

14

351722R1

BAR, anchor drawbar, unit B, for tractors equipped with swinging drawbar

1шт.

425-1110

NUT,5/8"-18, G5

2 for Unit B 5/8"-18, G5

1шт.

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

SCREW, 5/8-18 x 2 hex-hd cap, 2 for unit B, Fine Thread

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , 2 for unit B 5/8"

1шт.

15

351718R1

BRACKET, quick attachable drawbar RH, unit B

1шт.

16

351720R1

BRACE, quick attachable drawbar RH, unit B

1шт.

17

NSS

NOT SOLD SEPARAT

PIN, swinging drawbar pivot, unit B, discontinued for service

1шт.

18

460309R1

COTTER PIN

PIN, quick attachable cot., unit B

1шт.

19

NSS

NOT SOLD SEPARAT

DRAWBAR ASSY, swinging, unit B, discontinued for service

1шт.

13296R1

BOLT, 3/4-10 x 1-1/2 sq-hd mach, swinging drawbar stop, 2 for unit B, used to lock swinging drawbar in rigid position when desired

1шт.

220081

NUT

3/4 hex, 2 for unit B, used to lock swinging drawbar in rigid position when desired

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , 2 for unit B, used to lock swinging drawbar in rigid position when desired 3/4"

1шт.

20

351727R1

BUSHING, quick attachable drawbar, 2 for unit B

1шт.

21

351716R2

DRAWBAR, quick attachable, unit B

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex, 2 for unit B

1шт.

218197

NUT,3/4"-16, G5

3/4-16 hex, 2 for unit B

1шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-20 x 2 hex-hd cap, 2 for unit B

1шт.

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

SCREW, 3/4-16 x 3 hex-hd cap, 2 for unit B

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , 2 for unit B 1/2"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , 2 for unit B 3/4"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 13 ga, 2 for unit B

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 x 1-1/2 x .134, 2 for unit B

1шт.

22

373339R1

BOLT,Hex, 3/4" - 10 x 1.38"

quick attachable drawbar, 8 for unit A, 12 for unit B, 140 series tractors w/serial no. 4460 and above

1шт.
