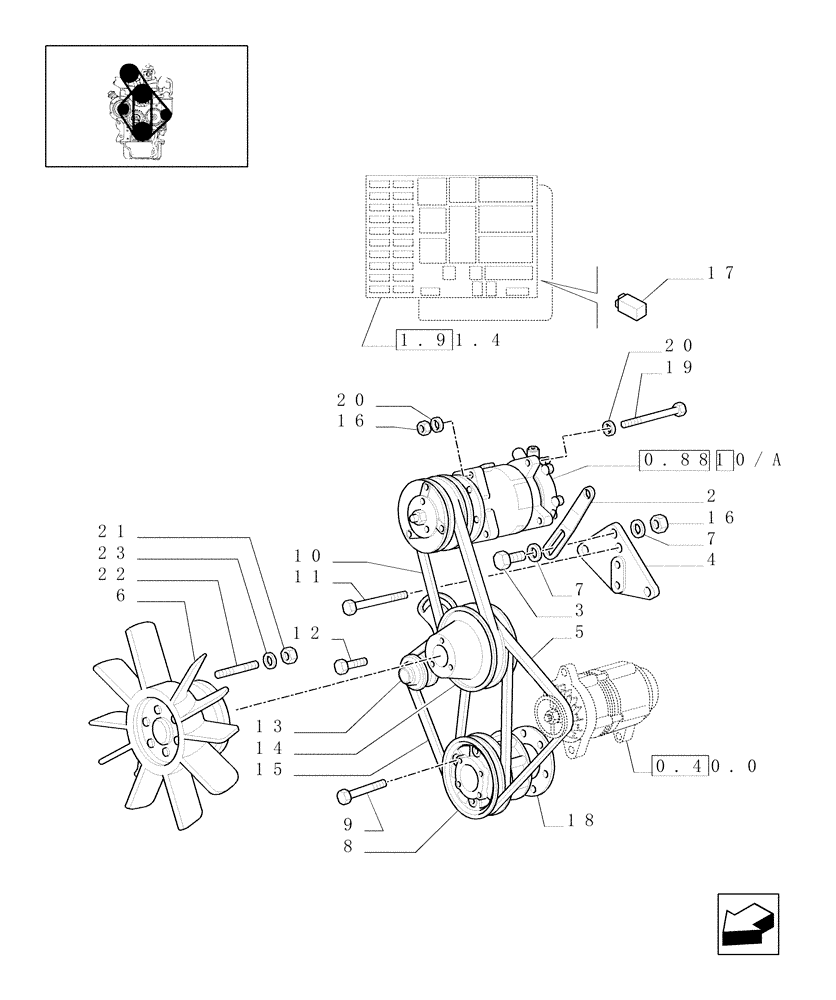

Запчасти Case IH JX90U (0.88.0) - (VAR.641-623) AIR CONDITIONING - BELTS & PULLEYS (01) - ENGINE

1

5165549

AIRCOND. COMPRESSOR

1шт.

1

5165549R

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor

1шт.

1

5165549C

CORE-COMPRESSOR

Return Number, COMPRESSOR (jx70u, jx80u, jx90u)

1шт.

2

5131056

BRACKET

1шт.

3

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

4

5130104

SUPPORT

1шт.

5

4796327

BELT

L=1132 mm

1шт.

6

47124802

FAN

Assy., Includes Clutch, JX90U, JX100U

1шт.

7

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

5шт.

8

4619285

PULLEY

1шт.

9

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

3шт.

9

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

5140009

V-BELT,10.00 mm W x 1025.00 mm L

L=1025 mm, JX70U, JX80U - SUPERCHARGER CONTROL BELT

1шт.

10

5186233

BELT,960.00 mm L

JX90U, JX100U

1шт.

11

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

3шт.

12

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

4616156

BELT TENSIONER

1шт.

14

5176523

PULLEY,152mm OD

JX90U, JX100U

1шт.

14

5131057

PULLEY

JX70U, JX80U

1шт.

15

5140010

V-BELT,10.00 mm W x 1075.00 mm L

L=1075 mm, JX90U, JX100U - Water Pump Control

1шт.

16

12164714

NUT,M10 x 1.25, Cl 8

3шт.

17

83990086

RELAY,Mini, 12V, 20A

1шт.

18

5116930

SPACER,11mm ID x 20mm OD x 9.9mm L

11X20X9.9

1шт.

18

5116934

SPACER

78X118X6.5

1шт.

19

15972424

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

1шт.

19

15972321

SCREW,Hex, M10 x 1.25 x 125mm, Cl 8.8

JX70U, JX80U

1шт.

20

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

21

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

JX90U, JX100U

3шт.

22

13517020

STUD

M8X1.25, JX90U, JX100U

3шт.

23

10516674

LOCK WASHER,M8

3шт.
