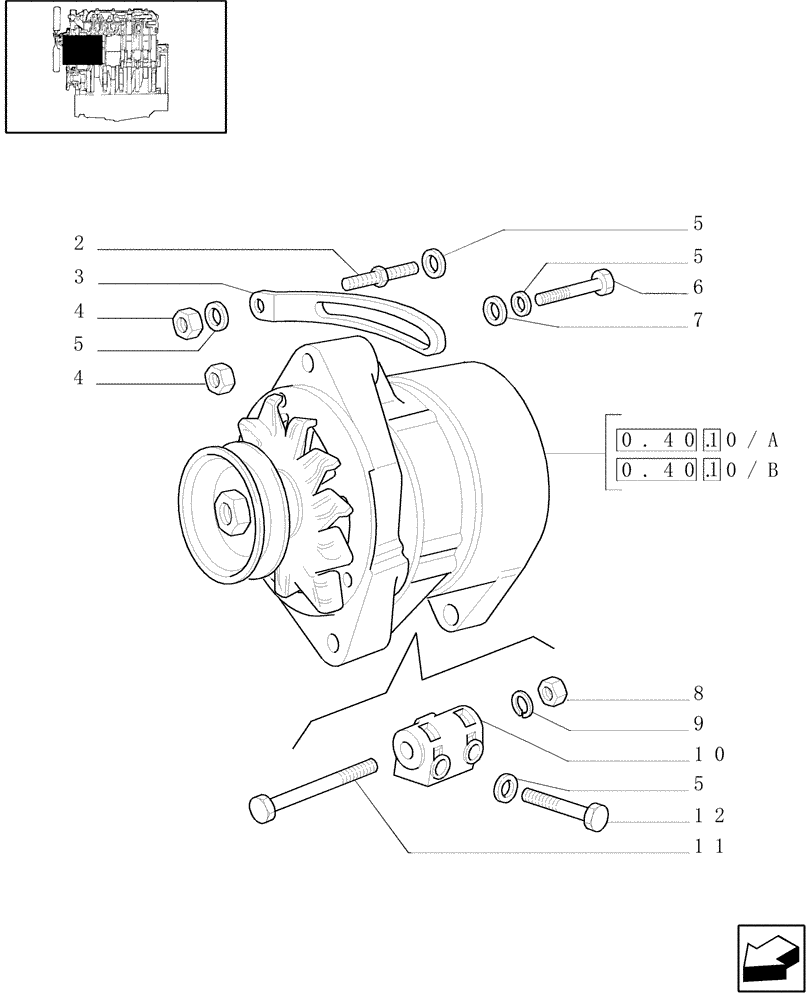

Запчасти Case IH JX90U (0.40.0) - ALTERNATOR (01) - ENGINE

1

4808498

ALTERNATOR,12V, 45A, W/ Pulley

45AMP, L/CAB

1шт.

1

4808498R

REMAN-ALTERNATOR

Reman for New PN 4808498

1шт.

1

4808498C

CORE-ALTERNATOR

Return number

1шт.

1

500364130

ALTERNATOR,85A, W/ Pulley

85 AMP, W/Cab

1шт.

500364130R

REMAN-ALTERNATOR

JX70U, JX80U, JX90U, JX100U all CASE IH TRACTOR (5/02-)

1шт.

500364130C

CORE-ALTERNATOR

Return Number

1шт.

2

4605854

STUD

1шт.

3

4787485

BELT TENSIONER

1шт.

4

12164721

NUT,M10 x 1.25, Cl 10

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

5

12646924

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

6

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

7

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

8

16101524

NUT,M12 x 1.25, Cl 10

1шт.

9

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

1шт.

10

4600128

SUPPORT

1шт.

11

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

1шт.

11

15542021

SCREW,Hex, M12 x 1.25 x 140mm, Cl 8.8

W/Alternator, 85 AMP

1шт.

12

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.
