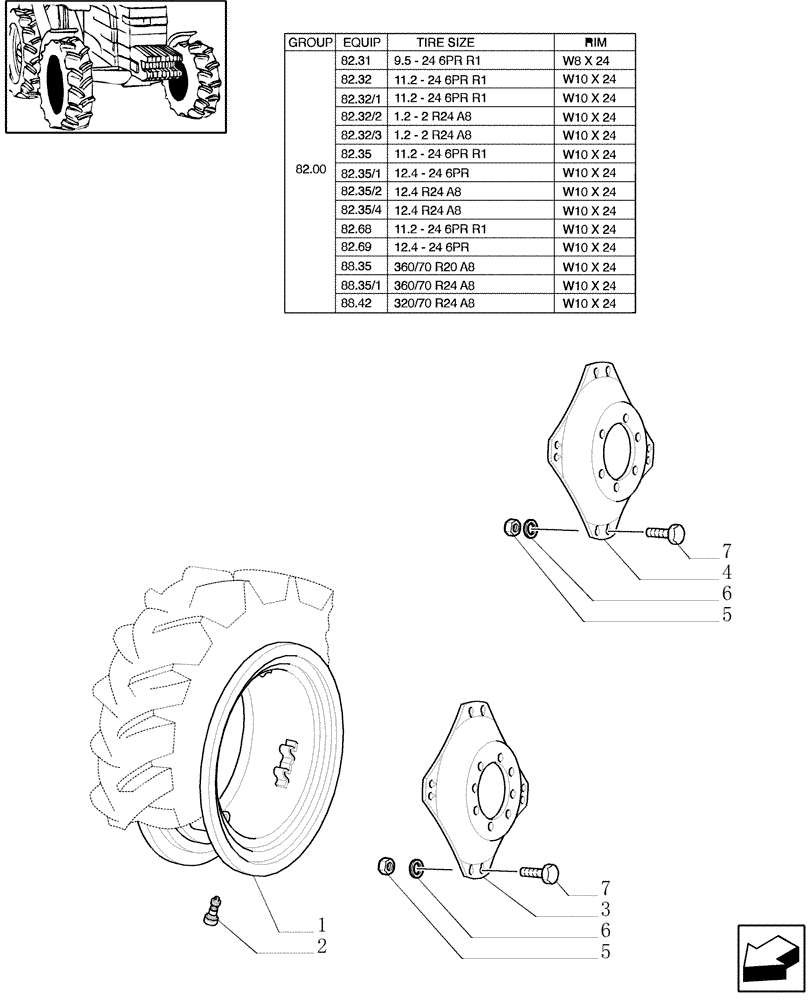

Запчасти Case IH JX90U (82.00[02]) - DRIVE WHEEL RIM (4WD) (11) - WHEELS/TRACKS

1

47128176

RIM

W8 X 24

2шт.

1

47128183

RIM,W10 x 24, 8 Bolts, CASE Silver

W10 X 24

2шт.

2

85700224

VALVE STEM

2шт.

3

47128164

WHEEL DISC

JX90U, JX100U - 8 bolt disc

2шт.

4

47128165

WHEEL DISC

JX70U, JX80U - 6 bolt disc

2шт.

5

10790524

NUT,M16 x 1.5

16шт.

6

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

7

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.
