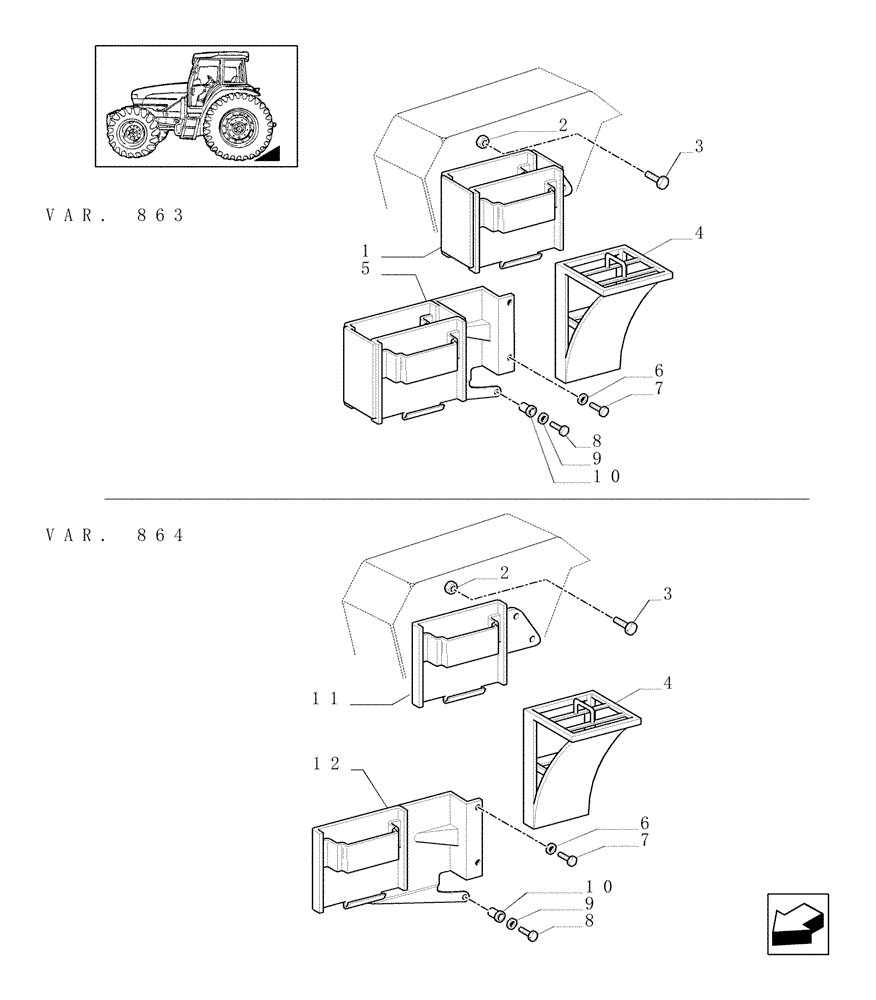

Запчасти Case IH JX90U (1.99.0) - (VAR.863-864) CHOCK (10) - OPERATORS PLATFORM/CAB

1

5169285

SUPPORT

L/CAB, (VAR.863)

1шт.

2

12164721

NUT,M10 x 1.25, Cl 10

L/Cab

2шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

L/Cab

2шт.

4

5112736

WHEEL CHOCK

2шт.

5

5177221

SUPPORT

W/CAB, (VAR.863)

1шт.

6

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

W/Cab

2шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

w/Cab

2шт.

8

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

W/Cab

1шт.

9

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

W/Cab

1шт.

10

81869659

THREADED INSERT

W/CAB

1шт.

11

5169283

SUPPORT

L/CAB, (VAR.864)

1шт.

12

5177223

SUPPORT

W/CAB, (VAR.864)

1шт.
