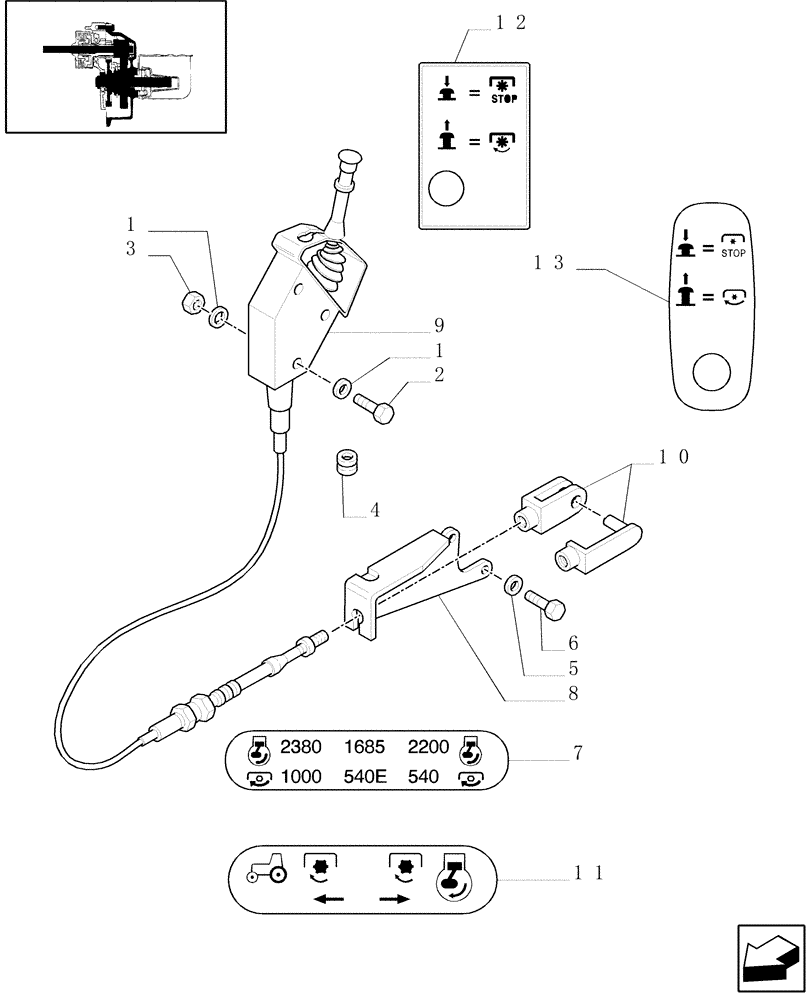

Запчасти Case IH JX90U (1.96.3/03) - (VAR.817) POWER TAKE-OFF 540-750-1000 RPM - CONTROL PARTS (10) - OPERATORS PLATFORM/CAB

1

14496404

WASHER,M6 x 12 x 2 Thk

6шт.

2

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

3шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

4

10398580

GROMMET,22mm ID x 30mm GRV ø x 38mm OD x 13mm Thk

22X5

1шт.

5

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

6

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

82007808

DECAL

1шт.

8

5180998

BRACKET

1шт.

9

5185988

FLEXIBLE CONTROL

1шт.

10

5132588

CLEVIS

1шт.

11

47125541

DECAL

1шт.

12

5185798

DECAL

L/CAB

1шт.

13

47130377

DECAL

W/CAB

1шт.
