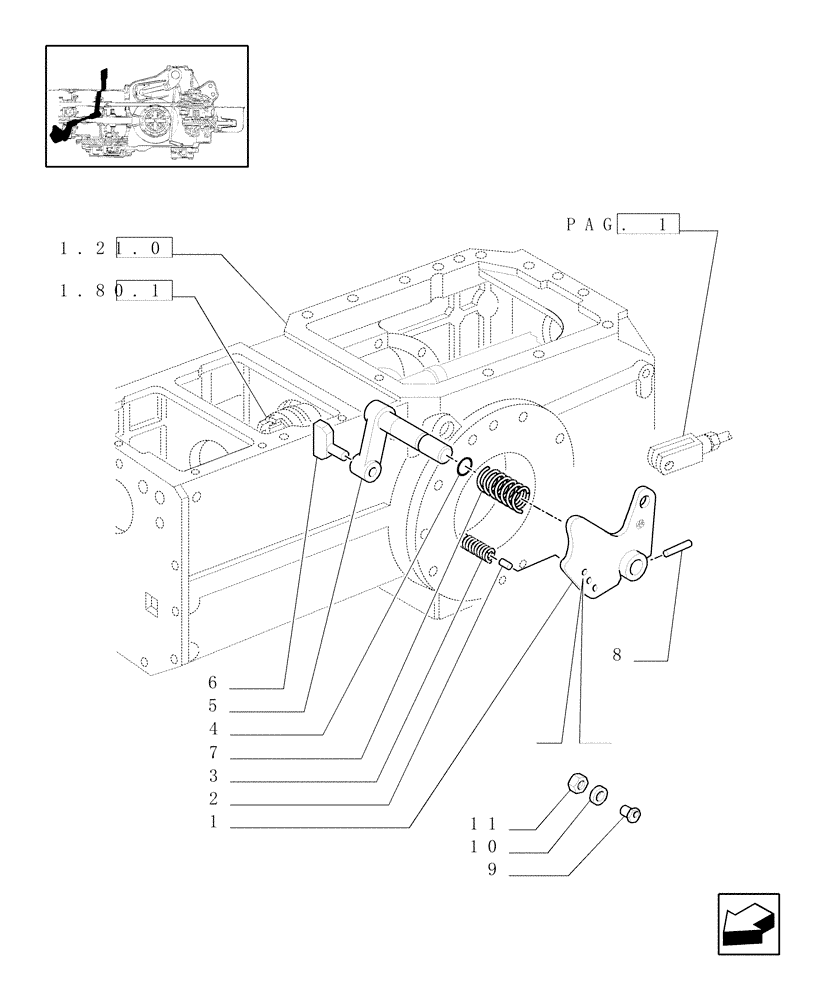

Запчасти Case IH JX90U (1.96.3[02]) - P.T.O. CONTROL (10) - OPERATORS PLATFORM/CAB

1

47132942

LEVER

JX70U JX80U JX90U

1шт.

1

5166307

LEVER

JX100U

1шт.

2

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

3

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

4

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

5

5166303

LEVER

1шт.

6

4984096

CONTROL LEVER,10mm OD x 40mm L

1шт.

7

580548

SPRING

1шт.

8

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

9

5166308

SPACER,8mm ID x 14mm OD x 16.5mm L

JX100U

1шт.

10

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

JX100U

1шт.

11

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

JX100U

1шт.
