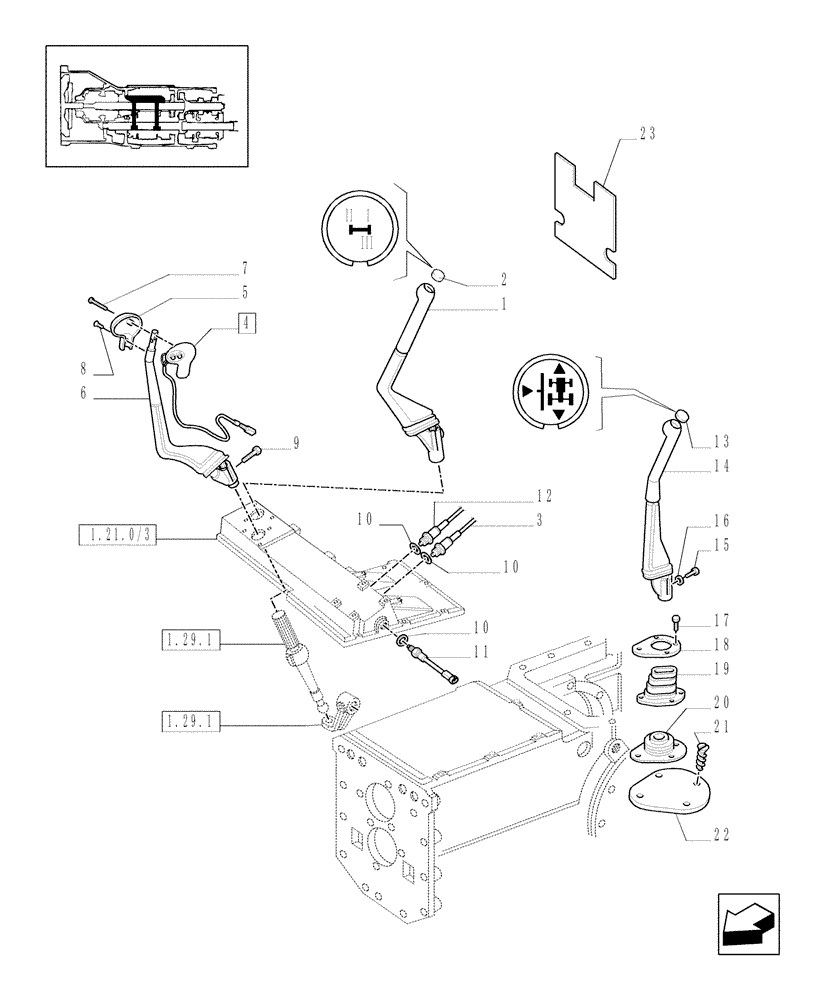

Запчасти Case IH JX90U (1.96.0/05) - (VAR.275-279) POWER SHUTTLE - HI-LO - 30-40 KMH - HYDRAULIC PTO - CONTROL LEVERS (10) - OPERATORS PLATFORM/CAB

1

5167008

LEVER

RH

1шт.

2

5132272

INSERT

1шт.

3

47132568

SWITCH

Grey

1шт.

4

5181203

KNOB

1шт.

5

5165394

KNOB

1шт.

6

5166996

LEVER

1шт.

7

13274877

SCREW,Phil Pan Hd, M5 x 30mm, SST

1шт.

8

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

1шт.

9

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

10

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

1шт.

11

47132567

SWITCH

Black

1шт.

12

47132569

SWITCH

Green

1шт.

13

5173907

INSERT

1шт.

14

5129984

LEVER

LH

1шт.

15

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

16

10569370

LOCK WASHER,8.1mm ID x 12.7mm OD x 2mm Thk

1шт.

17

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

W/Cab

4шт.

18

5176214

RING

W/Cab

1шт.

19

5167408

BOOT

W/Cab

1шт.

20

5130289

BOOT

W/Cab

1шт.

21

15905501

SELF-TAP SCREW,Pan Hd, M6.3 x 22

W/Cab, JX90U, JX100U

4шт.

22

5176213

COVER

W/Cab, JX90U, JX100U

1шт.
