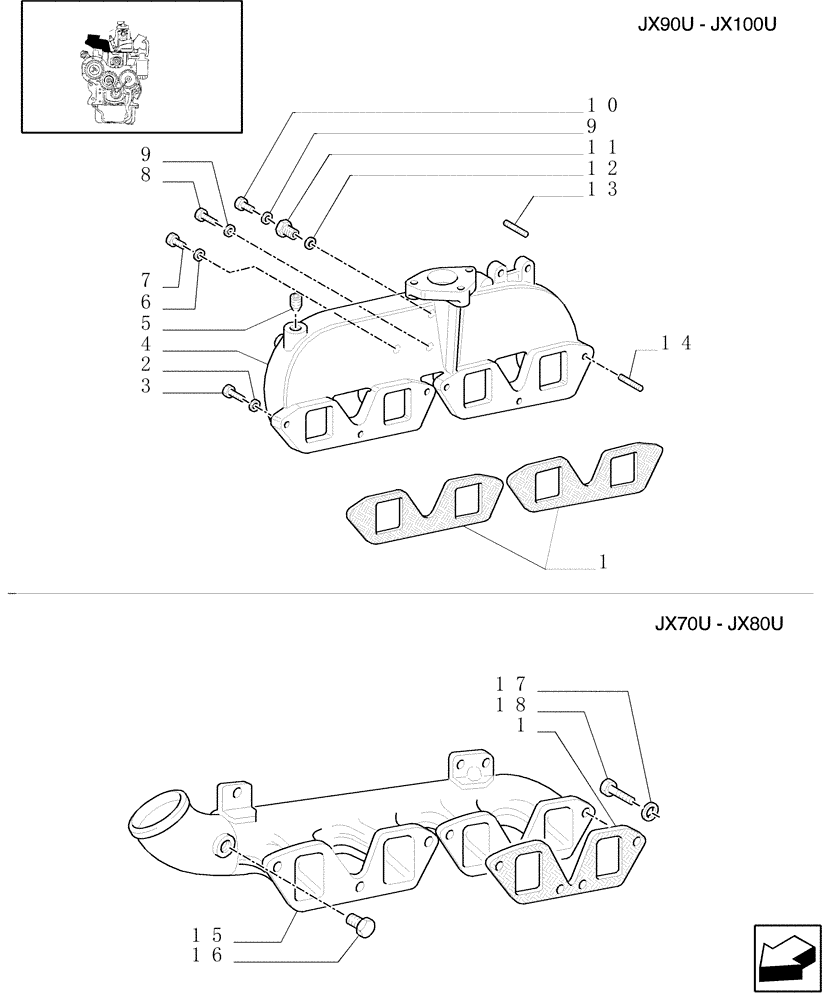

Запчасти Case IH JX90U (0.07.1) - INTAKE MANIFOLD (01) - ENGINE

1

4851921

GASKET,0.8mm Thk

2шт.

2

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

JX90U, JX100U

5шт.

3

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

JX90U, JX100U

5шт.

4

98409114

INLET MANIFOLD

JX90U, JX100U

1шт.

5

14325311

PLUG

M22X1.5, JX90U, JX100U

1шт.

6

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

JX90U, JX100U

1шт.

7

4724588

PLUG

M8, JX90U, JX100U

1шт.

8

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

JX90U, JX100U

1шт.

9

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

JX90U, JX100U

2шт.

10

11903011

PLUG,M10 x 1 x 11, Cl5.8

JX90U, JX100U

1шт.

11

4663081

HYD CONNECTOR,1/2" x M10 x 1

JX90U, JX100U

1шт.

12

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

JX90U, JX100U

1шт.

13

13546321

STUD

M10 x 25 , JX90U, JX100U

2шт.

14

13543321

STUD

JX90U, JX100U

1шт.

15

99441460

INLET MANIFOLD

JX70U, JX80U

1шт.

16

44903406

PLUG

1/2", JX70U, JX80U

1шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

JX70U, JX80U

6шт.

18

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

JX70U, JX80U

6шт.
