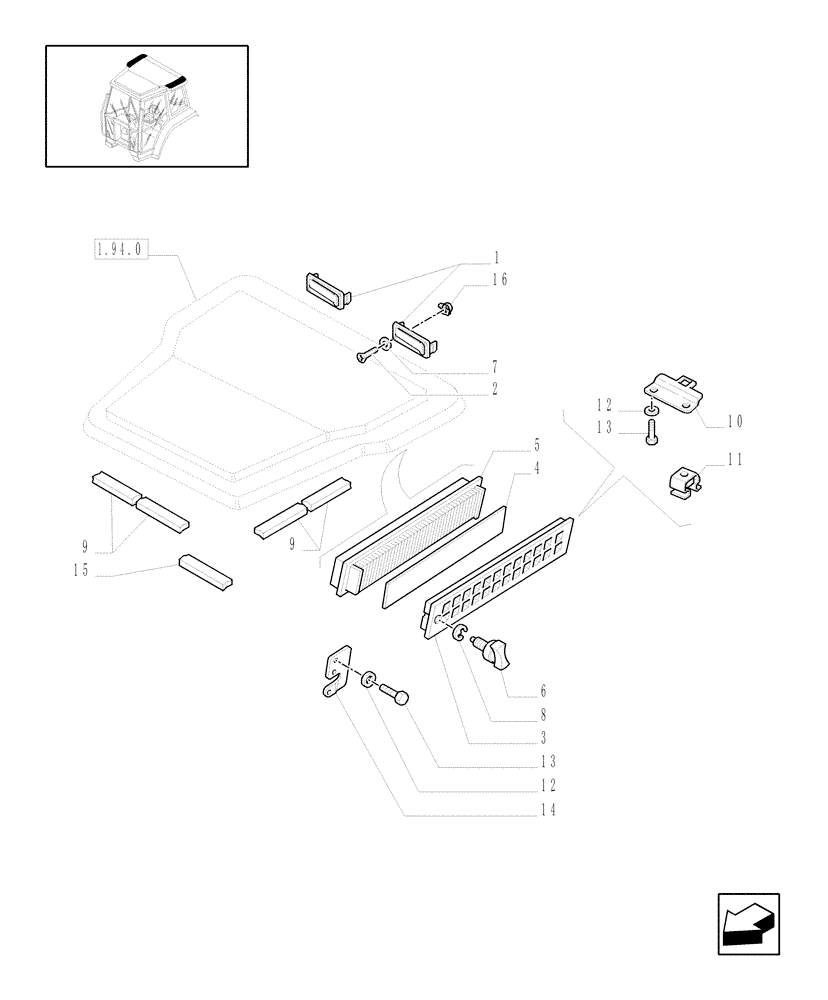

Запчасти Case IH JX90U (1.94.2[02]) - CAB - AIR FILTER (10) - OPERATORS PLATFORM/CAB

1

82007656

DIFFUSER

2шт.

2

12673707

SELF-TAP SCREW,Csk Hd, M4 x 16mm

10шт.

3

81871634

SUPPORT

2шт.

4

83994694

CAB FILTER

2шт.

5

47128198

FILTER

2шт.

6

5155778

KNOB

2шт.

7

12642804

WASHER,4.15mm ID x 12mm OD x 1mm Thk

10шт.

8

11087776

CIRCLIP,Ext., M6, BLO

4шт.

9

82004371

SEAL,85mm L

10X20X85MM

4шт.

9

82004372

SEAL,600mm L

10X20X600MM

1шт.

9

82007728

FOAM INSULATION

10X10X55MM

4шт.

9

82007728

FOAM INSULATION

10X10X55

4шт.

10

82003520

BRACKET

, Serial Range: -1326835

2шт.

11

5116031

SPRING NUT

2шт.

12

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

, Serial Range: -1326835

8шт.

13

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

, Serial Range: -1326835

4шт.

14

47123941

BRACKET

RH, Serial Range: -1326835

1шт.

14

47123942

BRACKET

LH, Serial Range: -1326835

1шт.

15

47131658

INSULATOR

, Start Serial: 1326836

1шт.

16

14372671

SPRING NUT,M4.2, U, 12.4mm long

10шт.
